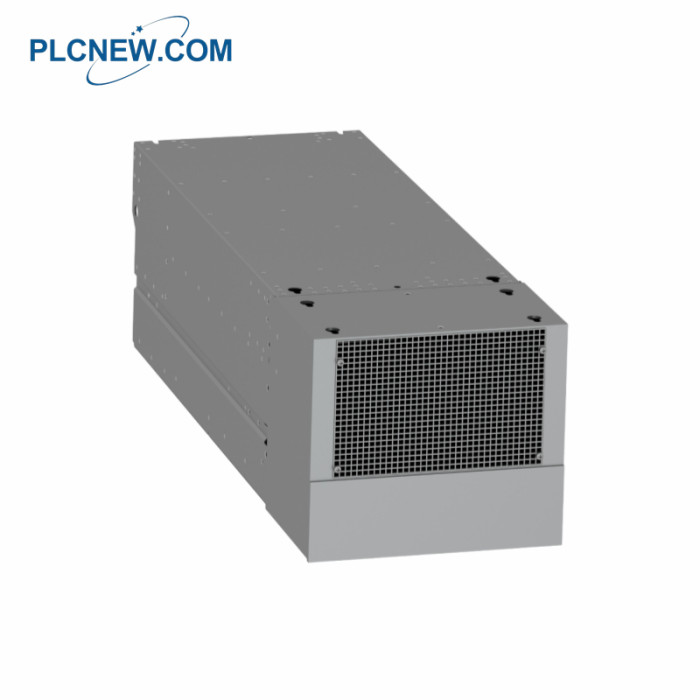

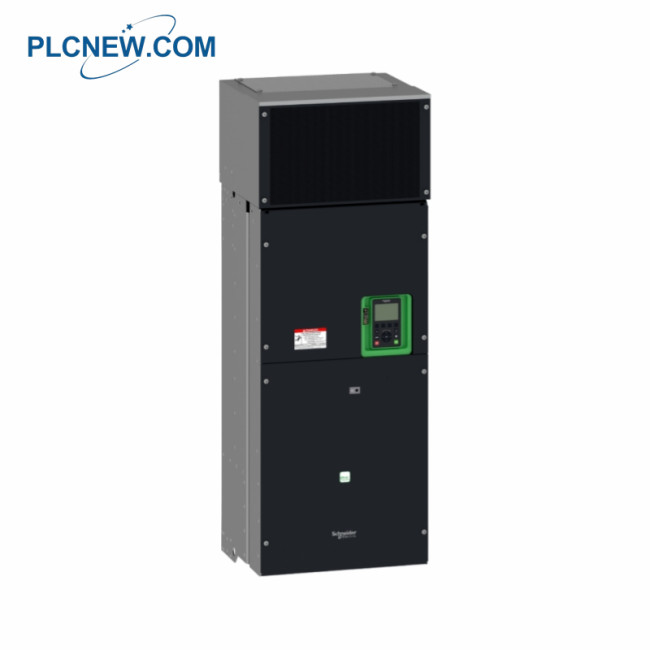

Schneider ATV630C22N4 Variable Speed Drive

Schneider ATV630C22N4 Variable Speed Drive

See Product Details➽

Power range: 110-220 kW (380-500V, 3 phases)
Maximum output frequency: 500 Hz (not kHz)
Acceleration/deceleration: Linear 0.01-9999 s
Switching frequency: 2-8 kHz adjustable (2.5-8 kHz with derating)
Nominal switching frequency: 2.5 kHz
Maximum input current: 397.0 A
Maximum output voltage: 480.0 V
Apparent power: 247 kVA at 480V (normal); 187 kVA at 480V (heavy)
Maximum transient current: 470A for 60s (normal); 453A for 60s (heavy)
Network frequency: 50-60 Hz
Prospective line Isc: 50 kA
Transmission rate: 10/100 Mbits (Ethernet); 4800-38.4 kbps (serial)
Temporary current boost: 1.1x In for 60s (normal); 1.5x In for 60s (heavy)
Data format: 8 bits, configurable parity
Frequency resolution: 0.1 Hz (display); 0.012/50 Hz (analog input)
Electrical connection: Control: 0.5-1.5 mm²; Power: 2x150 mm²
Number of addresses: 1-247 (Modbus serial)
Supply: Digital inputs: 24V DC (19-30V), <1.25mA
Discrete input number: 8
Discrete input type: DI7, DI8 programmable pulse input: 0-30 kHz, 24V DC
Discrete output number: 0
Discrete output type: R1: 250V AC/30V DC 3000mA; R2/R3: 250V AC/30V DC 5000mA
Analogue input number: 3
Analogue input type: AI1, AI2, AI3 configurable: 0-10V DC (315k Ohm) or 0-20mA (520 Ohm), 12 bits;

AI2: -10-10V DC, 315k Ohm
Analogue output number: 2
Analogue output type: AQ1, AQ2 configurable: 0-10V DC (470 Ohm) or 0-20mA, 10 bits; DO: 30V DC, 100mA
Relay output number: 3
Maximum switching current: 3A resistive (250V AC/30V DC); 2A inductive (250V AC/30V DC)
Minimum switching current: 5 mA at 24V DC
Network phases: 3
Rated supply voltage: 380-480V -15...+10%
Relative voltage tolerance: 10%
Relative frequency tolerance: 5%
Nominal output current: 427.0 A
Supply frequency: 50-60 Hz +/-5%
Motor power: 220 kW / 350 hp (normal); 160 kW / 250 hp (heavy)
Line current: 397A at 380V (normal); 324A at 380V (normal); 286A at 380V (heavy); 246A at 480V (heavy)
Continuous output current: 427A at 2.5kHz (normal); 302A at 2.5kHz (heavy)
Output frequency: 0.1-500 Hz
