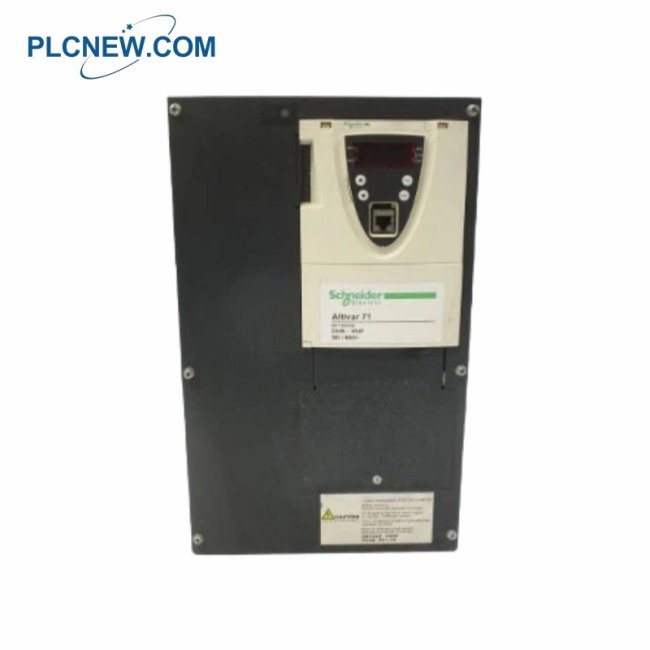

Schneider ATV71HD22N4Z Variable Speed Drive
Product Overview
The Schneider ATV71HD22N4Z Variable Speed Drive, part of the Altivar 71 series, is designed to handle demanding industrial applications
with precision and efficiency. It offers reliable motor control, optimized performance, and energy savings, making it well-suited for complex,
high-power machinery. With built-in EMC filtering and advanced communication options such as CANopen and Modbus, it ensures seamless
integration into systems while maintaining compliance with industrial standards. Its durable design and intelligent features help improve
process reliability, reduce downtime, and extend equipment lifespan.
Height: 420 mm
Width: 230 mm
Depth: 236 mm
Net weight: 21 kg
Motor power kW: 22 kW, 3 phases at 380...480 V
Motor power hp: 30 hp, 3 phases at 380...480 V
Maximum motor cable length: 100 m shielded cable / 200 m unshielded cable
Power supply voltage: 380...480 V -15...10 %
Line current: 42 A at 480 V / 50 A at 380 V (3 phases, 22 kW / 30 hp)
Apparent power: 32.9 kVA at 380 V, 3 phases, 22 kW / 30 hp
Nominal output current: 40 A at 460 V / 48 A at 380 V (4 kHz, 3 phases, 22 kW / 30 hp)
Maximum transient current: 72 A for 60 s / 79.2 A for 2 s (3 phases, 22 kW / 30 hp)
Output frequency: 0.1…599 Hz
Nominal switching frequency: 4 kHz
Switching frequency: 1...16 kHz adjustable / 4...16 kHz with derating factor
Power supply voltage limits: 323…528 V
Power supply frequency: 50...60 Hz -5...5 %
Power supply frequency limits: 47.5...63 Hz
