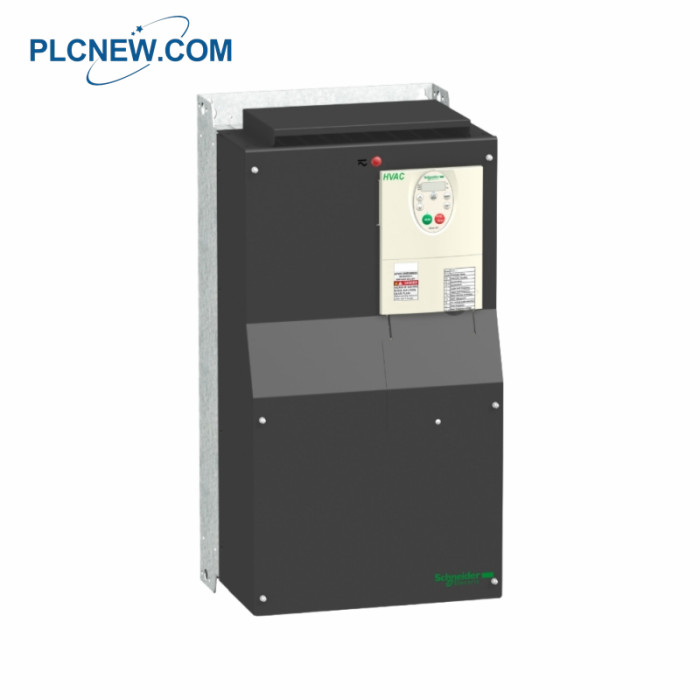

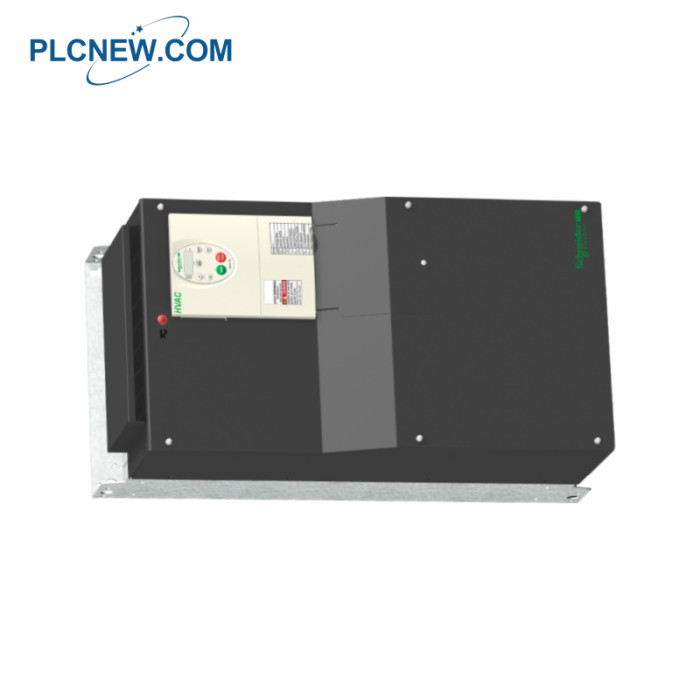

Schneider ATV212HD75N4 Variable Speed Drive

Schneider ATV212HD75N4 Variable Speed Drive

See Product Details➽

Insulation resistance: >=1 mOhm (500V DC, 1 min)
Frequency resolution: 0.1 Hz (display); 0.024/50 Hz (analog input)
Power dissipation: 1945 W
Air flow: 666 m³/h
Motor power range: 55-100 kW (380-500V, 3 phases)
Discrete output number: 2
Analogue input number: 2
Analogue input type: VIA: 0-10V DC (30kOhm, 10 bits) or 0-20mA (250 Ohm, 10 bits);

VIB: 0-10V DC (30kOhm, 10 bits) or PTC probe (0-6 probes, 1500 Ohm)
Analogue output number: 1
Transmission rate: 9600 or 19200 bps
Supply: Reference pot: 10.5V DC, <10A; Internal: 24V DC (21-27V), <200A
Sampling duration: 2 ms (F/R discrete); 3 ms (RES discrete); 35 ms (VIA analog); 22 ms (VIB analog)
Response time: FM 2 ms; FLA/FLB/FLC/RX/RC 7 ms
Accuracy: +/-0.6% (VIA/VIB, 60°C); +/-1% (FM, 60°C)
Linearity error: +/-0.15% of max (VIA/VIB); +/-0.2% (FM)
Analogue output type: FM configurable: 0-10V DC (7620 Ohm) or 0-20mA (970 Ohm), 10 bits
Minimum switching current: 3 mA at 24V DC
Maximum switching current: 5A resistive (250V AC/30V DC); 2A inductive (250V AC/30V DC)
Discrete input: Positive: <=5V (0), >=11V (1); Negative: >=16V (0), <=10V (1)
Dielectric strength: 3535 V DC (earth-power); 5092 V DC (control-power)
Network phases: 3
Motor power: 75 kW / 100 hp
Supply voltage limits: 323-528 V
Supply frequency: 50-60 Hz +/-5%
Line current: 141.8A at 380V; 111.3A at 480V
Rated supply voltage: 380-480V -15...+10%
Apparent power: 105.3 kVA at 380V
Continuous output current: 160A (380V, 460V)
Maximum transient current: 176A for 60s
Output frequency: 0.5-200 Hz
Speed range: 1-10
Speed accuracy: +/-10% of nominal slip
