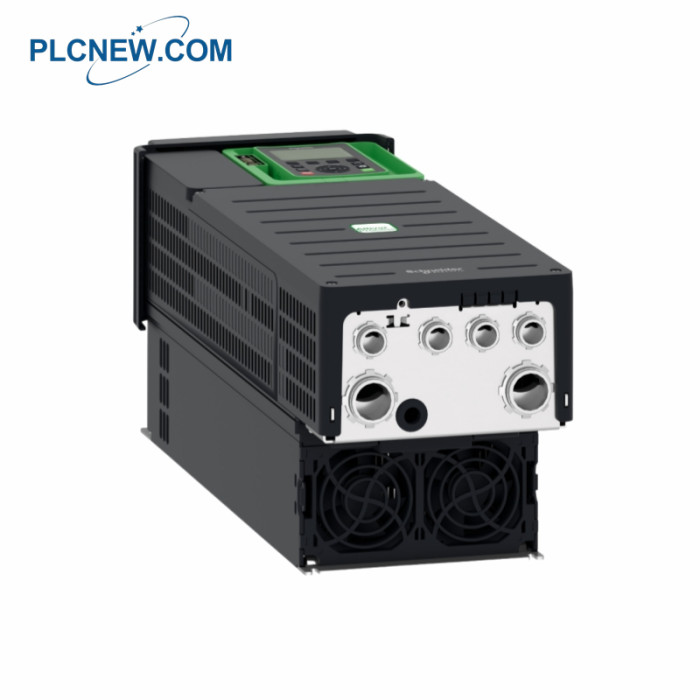

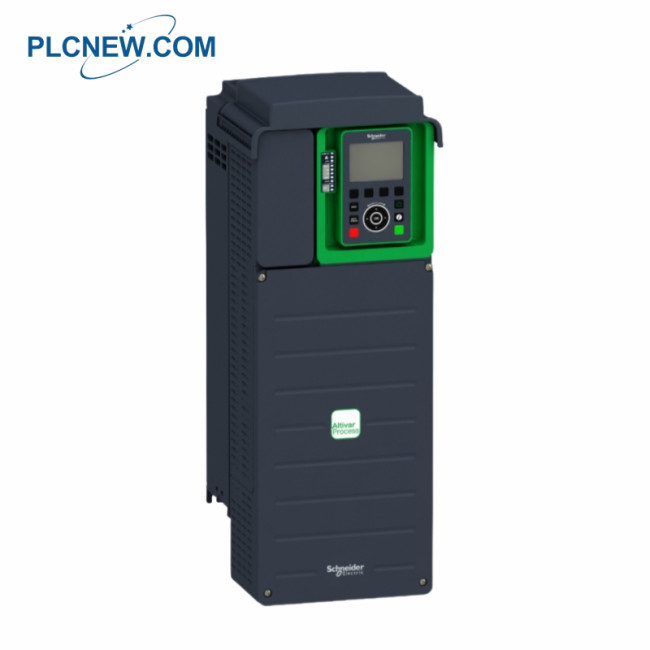

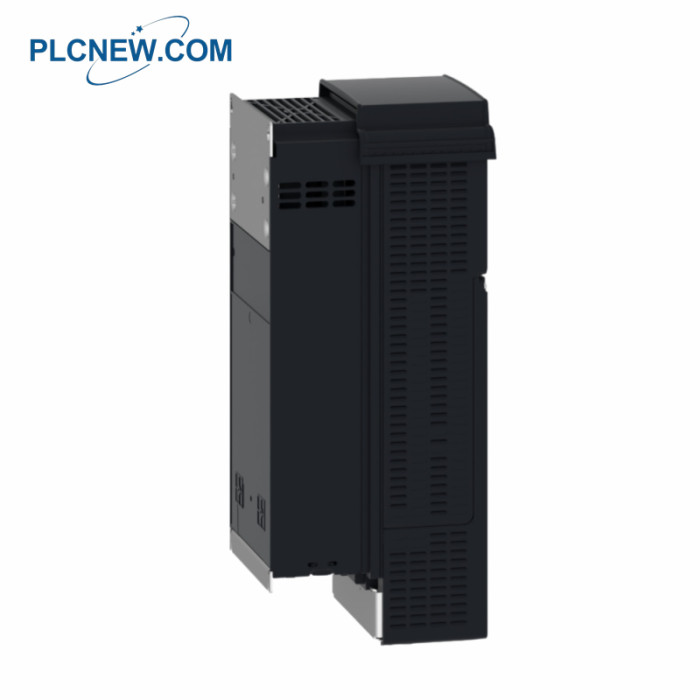

Schneider ATV930D15N4 Variable Speed Drive
Product Overview
This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors.
It is suitable for motors with power rating up to 15kW/20hp for applications requiring slight overload (up to 120%).
It is suitable for motors with power rating up to 11kW/15hp for applications requiring significant overload
(up to 150%). It works at a rated supply voltage from 380V to 480V AC. This variable speed / frequency drive (VSD / VFD)
is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals,
food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of
coupling in master/slave applications. Network services help ensure operation continuity even in case of connection
breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance.
Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into architectures.
It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Width: 211 mm
Height: 545.9 mm
Depth: 235 mm
Net weight: 13.6 kg
Continuous output current: 31.7 A at 4 kHz for normal duty / 23.5 A at 4 kHz for heavy duty
[Us] rated supply voltage: 380...480 V -15...10 %
[Us] rated supply voltage: 380...480 V
Relative symmetric mains voltage tolerance: 10 %
Relative symmetric network frequency tolerance: 5 %
Nominal output current: 31.7 A
Motor power kW: 15.0 kW for normal duty / 11.0 kW for heavy duty
External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA
Internal supply for reference potentiometer: 10.5 V DC ±5 %, <10 mA
Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA
Maximum acceleration under vibrational stress (during operation): 10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation): 1.5 mm at 2...13 Hz
Volume of cooling air: 215 m³/h
