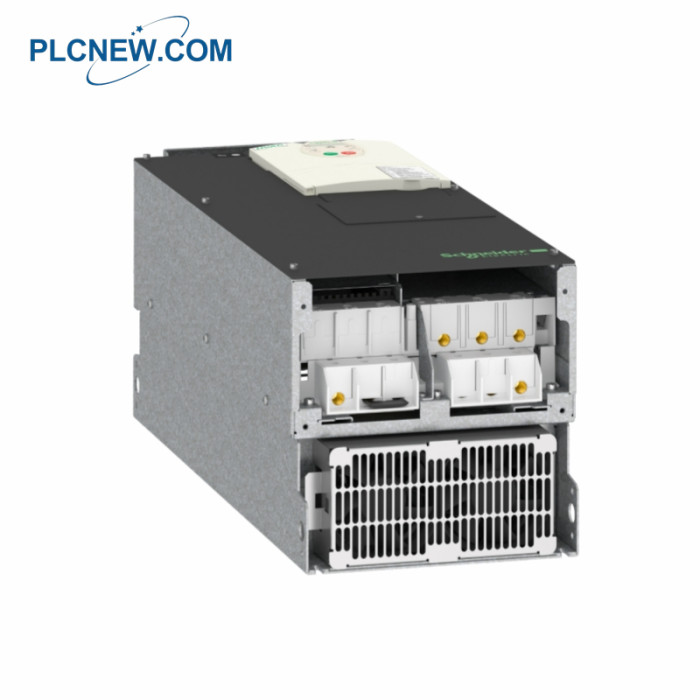

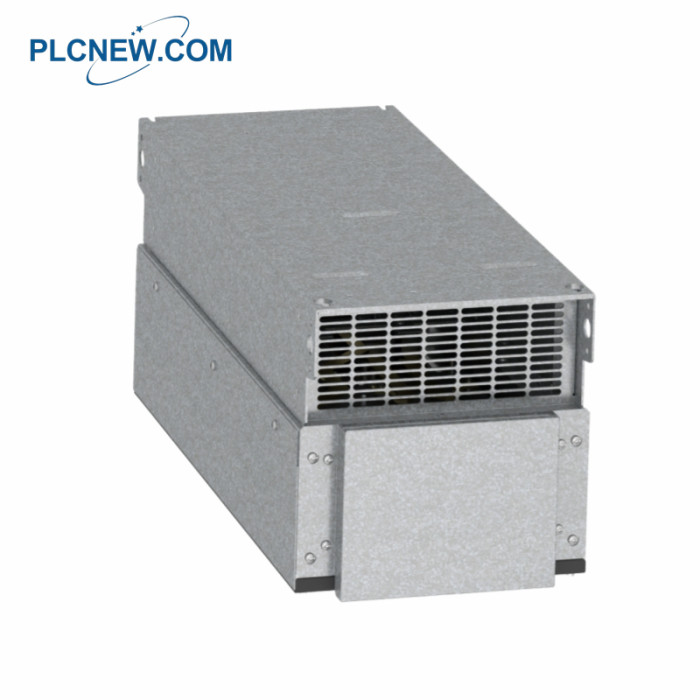

Schneider ATV212HD45N4 Variable Speed Drive
Product Overview
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter.
It works at a rated power up to 45kW / 60hp and a rated voltage from 380V to 480V AC.
Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding
additional options. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC).
It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions).
It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum
cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position
(+/- 10 °)on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to
its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1.
Dimensions (WxHxD): 240x550x244 mm
Weight: 38.1 kg
Nominal switching frequency: 8 kHz
Network frequency: 47.5-63 Hz
Prospective line Isc: 22 kA
Apparent power: 61.9 kVA at 380V
Continuous output current: 94A (380V, 460V)
Maximum transient current: 103.4A for 60s
Output frequency: 0.5-200 Hz
Speed range: 1-10
Network phases: 3
Motor power: 45 kW / 60 hp
Supply voltage limits: 323-528 V
Supply frequency: 50-60 Hz +/-5%
Line current: 83.8A at 380V; 65.9A at 480V
Rated supply voltage: 380-480V -15...+10%
