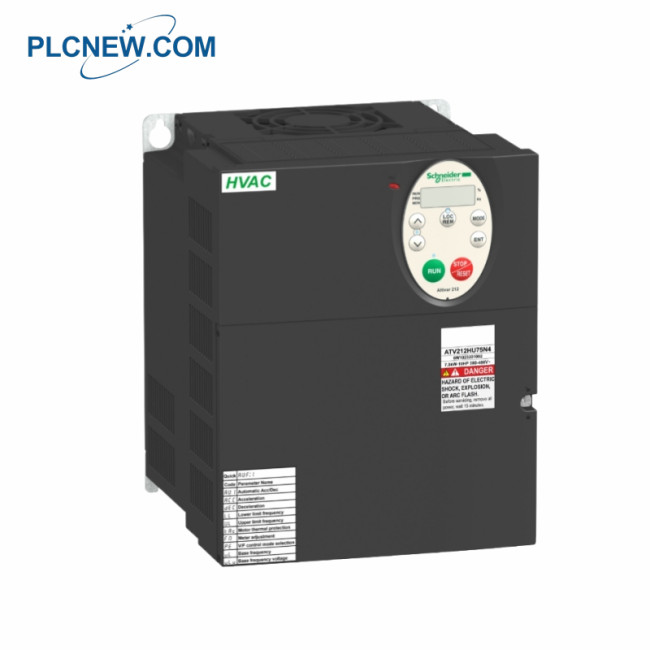

Schneider ATV212HU75N4 Variable Speed Drive

Schneider ATV212HU75N4 Variable Speed Drive

Product Overview

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors.   Its protection index is IP21 and it has a built-in EMC filter.

It works at a rated power up to 7.5kW / 10hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction

in energy consumption of up to 70% compared to a conventional control system.   Thanks to its cable temperature rise reduction technology,

the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options.  It is specifically designed for the most

common fluid management applications in tertiary sector buildings (HVAC).   It conforms to international standards IEC/EN 61800-5-1 and

IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions).   It is also CE, UL, CSA, C-Tick and NOM certified.

The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit

disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes.

The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication

protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.  complies with directives such as RoHS, WEEE

Width: 180 mm
Height: 232 mm
Depth: 170 mm
Net weight: 6.45 kg
Motor power kW: 7.5 kW
Motor power hp: 10 hp
Supply voltage limits: 323…528 V
Supply frequency: 50...60 Hz -5...5 %
Line current: 11.7 A at 480 V / 14.7 A at 380 V
Apparent power: 12.2 kVA at 380 V
Continuous output current: 16 A at 380 V / 16 A at 460 V
Maximum transient current: 17.6 A for 60 s
Speed drive output frequency: 0.5…200 Hz
Speed range: 1…10
Minimum switching current: 3 mA at 24 V DC for configurable relay
Maximum switching current: 5 A at 250 V AC on resistive load (cos phi = 1, L/R = 0 ms, FL, R) /

5 A at 30 V DC on resistive load (cos phi = 1, L/R = 0 ms, FL, R) /

2 A at 250 V AC on inductive load (cos phi = 0.4, L/R = 7 ms, FL, R) /

2 A at 30 V DC on inductive load (cos phi = 0.4, L/R = 7 ms, FL, R)
Discrete input type: F programmable 24 V DC, impedance 4700 Ohm / R
Insulation resistance: ≥ 1 MΩ at 500 V DC for 1 minute
Frequency resolution: 0.1 Hz (display unit) / 0.024/50 Hz (analog input)
