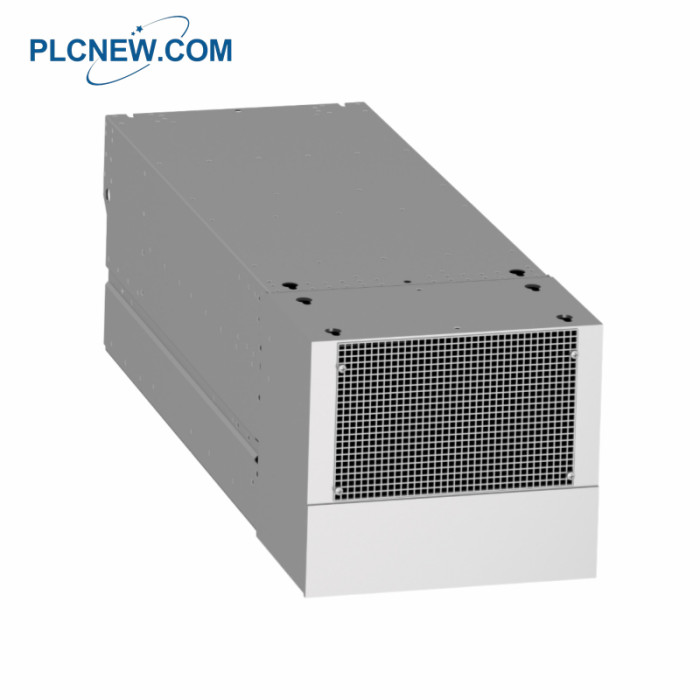

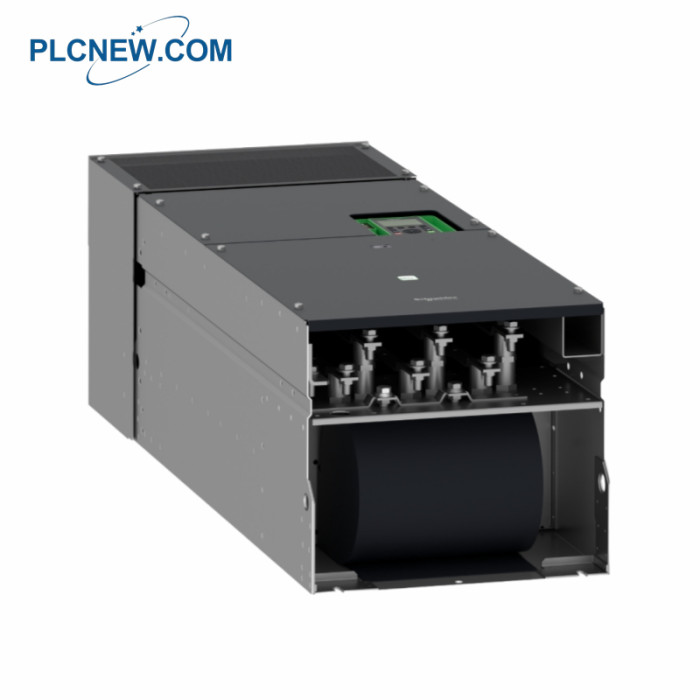

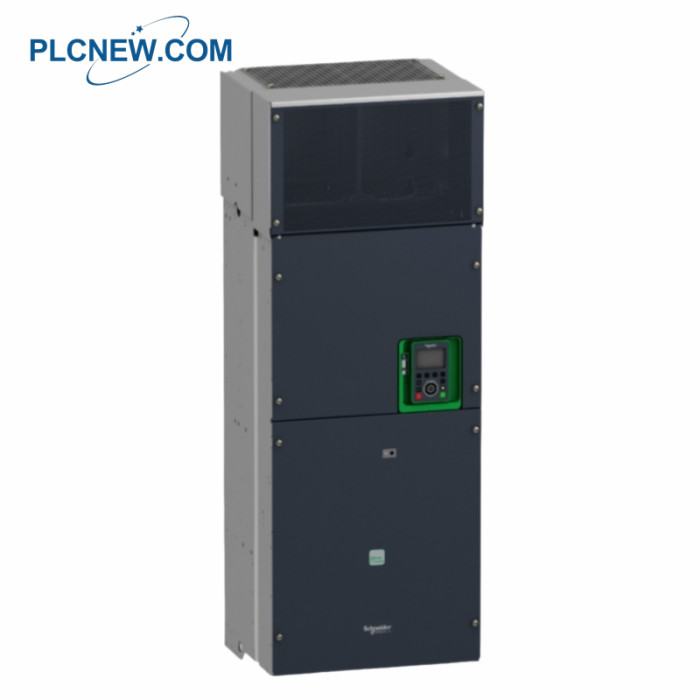

Schneider ATV930C22N4 Variable Speed Drive
Product Overview
This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors.
It is suitable for motors with power rating up to 220kW/350hp for applications requiring slight overload (up to 120%).
It is suitable for motors with power rating up to 160kW/250hp for applications requiring significant overload (up to 150%).
It works at a rated supply voltage from 380V to 480V AC. This variable speed / frequency drive (VSD / VFD) is specifically
designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and
beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in
master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server
and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity,
including EtherNet/IP and Modbus TCP, allows deep integration into architectures. It is designed to be mounted
in vertical position (+/- 10 °) on a wall.
Width: 440 mm
Height: 1195 mm
Depth: 380 mm
Net weight: 172 kg
Continuous output current: 302 A at 2.5 kHz for heavy duty / 427 A at 2.5 kHz for normal duty
[Us] rated supply voltage: 380...480 V -15...10 %
[Us] rated supply voltage: 380...480 V
Nominal output current: 427.0 A
Motor power kW: 220.0 kW for normal duty / 160.0 kW for heavy duty
Switching frequency: 1...8 kHz adjustable / 2.5...8 kHz with derating factor
Nominal switching frequency: 2.5 kHz
Maximum input current: 397.0 A
Maximum output voltage: 480 V
Apparent power: 247 kVA at 480 V (normal duty) / 187 kVA at 480 V (heavy duty)
Maximum transient current: 453 A during 60 s (heavy duty) / 512 A during 60 s (normal duty)
Network frequency: 50...60 Hz
Prospective line Isc: 50 kA
Base load current at high overload: 302.0 A
Base load current at low overload: 427.0 A
