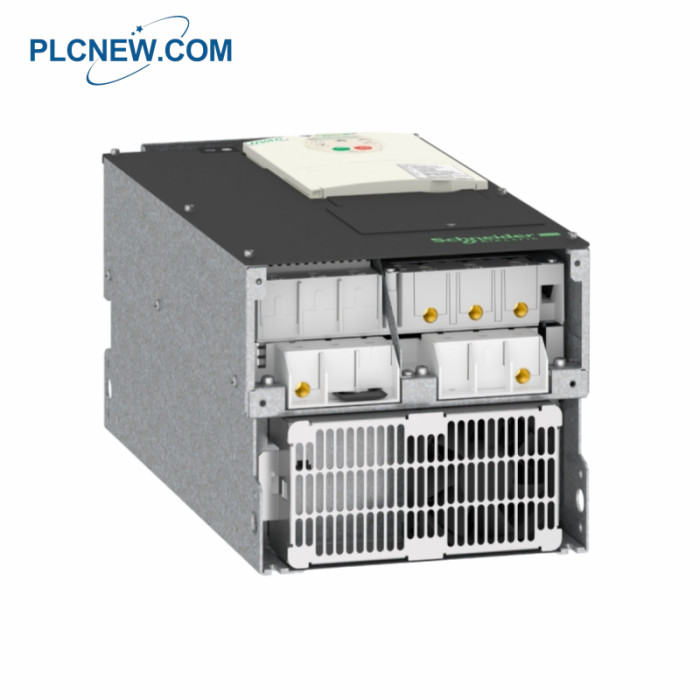

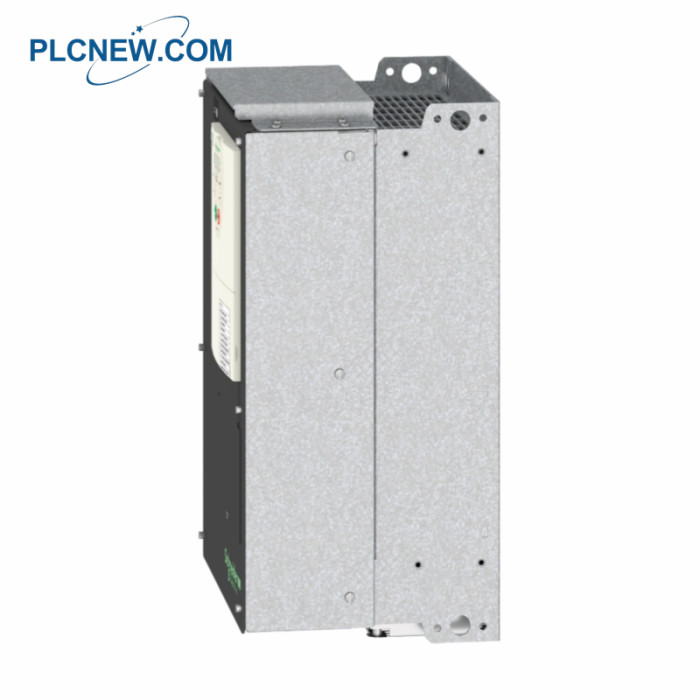

Schneider ATV212HD22N4 Variable Speed Drive
Product Overview
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter.
It works at a rated power up to 22kW / 30hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction
in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology,
the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options. It is specifically designed for the most
common fluid management applications in tertiary sector buildings (HVAC). It conforms to international standards IEC/EN 61800-5-1 and
IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212
offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the
motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can
easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard,
Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
Product range: Altivar 212
Dimensions (WxHxD): 240x420x214 mm
Net weight: 26.4 kg
Minimum switching current: 3 mA at 24V DC
Maximum switching current: 5A resistive (250V AC/30V DC); 2A inductive (250V AC/30V DC)
Discrete input type: F, R, RES programmable 24V DC, 4700 Ohm
Discrete input: Positive: <=5V (0), >=11V (1); Negative: >=16V (0), <=10V (1)
Dielectric strength: 3535 V DC (earth-power); 5092 V DC (control-power)
Insulation resistance: >=1 mOhm (500V DC, 1 min)
Frequency resolution: 0.1 Hz (display); 0.024/50 Hz (analog input)
Apparent power: 33.2 kVA at 380V
Continuous output current: 43.5A (380V, 460V)
Maximum transient current: 47.9A for 60s
Output frequency: 0.5-200 Hz
Speed range: 1-10
Speed accuracy: +/-10% of nominal slip
Motor power: 22 kW / 30 hp
Supply voltage limits: 323-528 V
Supply frequency: 50-60 Hz +/-5%
Line current: 33.1A at 480V; 41.6A at 380V
Rated supply voltage: 380-480V -15...+10%
