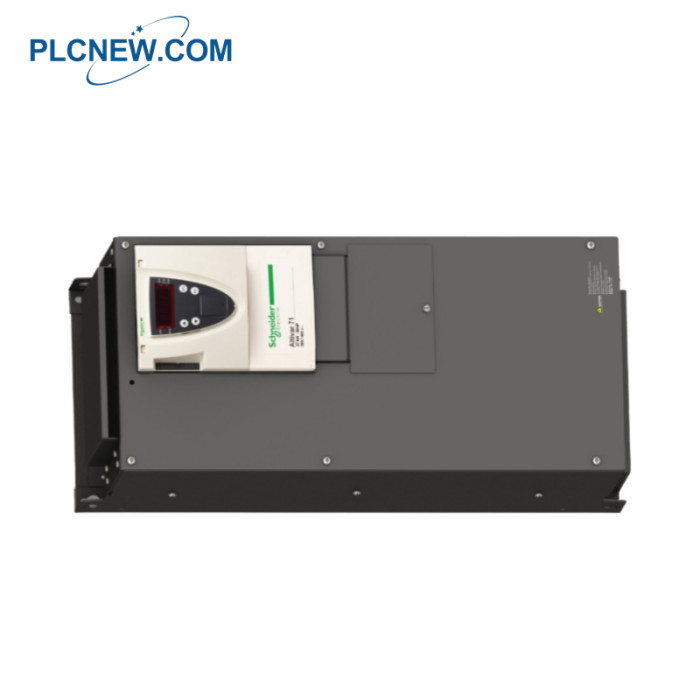

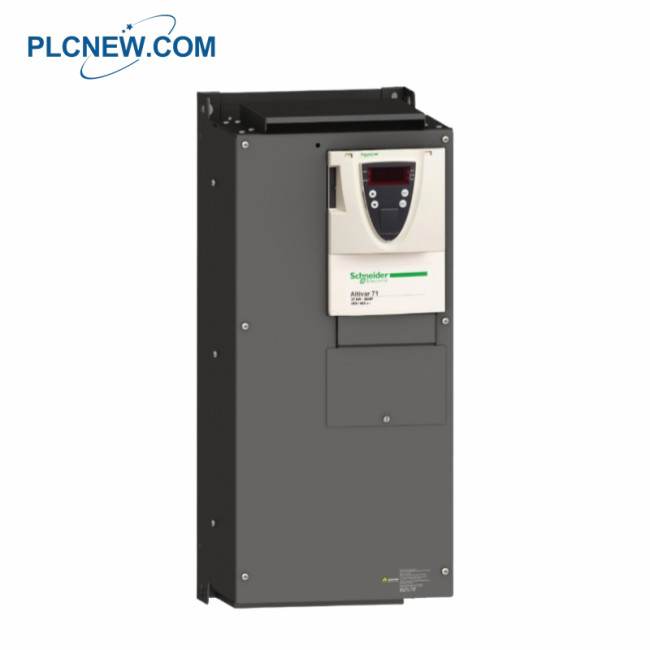

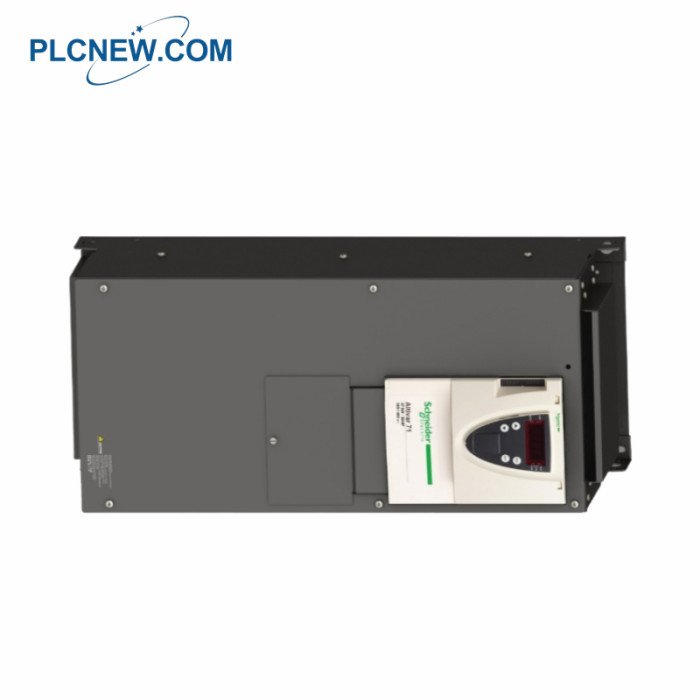

Schneider ATV71HD45N4 Variable Speed Drive
Product Overview
The Schneider ATV71HD45N4 Variable Speed Drive, part of the Altivar 71 series, is engineered to deliver high-performance
motor control for demanding industrial environments. Featuring an integrated EMC filter and a user-friendly graphic terminal, it ensures
precise speed regulation, smooth operation, and enhanced energy efficiency. Its robust design provides reliable and durable performance
even under challenging operating conditions, while advanced functionality allows seamless integration into complex systems.
The ATV71HD45N4 helps optimize process efficiency, reduce downtime, and improve overall productivity, making it an ideal solution
for industries that require flexible and dependable motor management.
Height: 630 mm
Width: 320 mm
Depth: 290 mm
Net weight: 44 kg
Motor power kW: 45 kW, 3 phases at 380...480 V
Motor power hp: 60 hp, 3 phases at 380...480 V
Maximum motor cable length: 100 m shielded cable / 200 m unshielded cable
Power supply voltage: 380...480 V -15...10 %
Line current: 104 A for 380 V 3 phases / 85 A for 480 V 3 phases (45 kW / 60 hp)
Apparent power: 68.5 kVA at 380 V 3 phases (45 kW / 60 hp)
Prospective line Isc: 22 kA for 3 phases
Nominal output current: 77 A at 460 V / 94 A at 380 V (2.5 kHz, 3 phases, 45 kW / 60 hp)
Maximum transient current: 141 A for 60 s / 155 A for 2 s (3 phases, 45 kW / 60 hp)
Output frequency: 0.1…500 Hz
Nominal switching frequency: 2.5 kHz
Switching frequency: 1...16 kHz adjustable / 2.5...16 kHz with derating factor
Power supply voltage limits: 323…528 V
Power supply frequency: 50...60 Hz -5...5 %
Power supply frequency limits: 47.5...63 Hz
