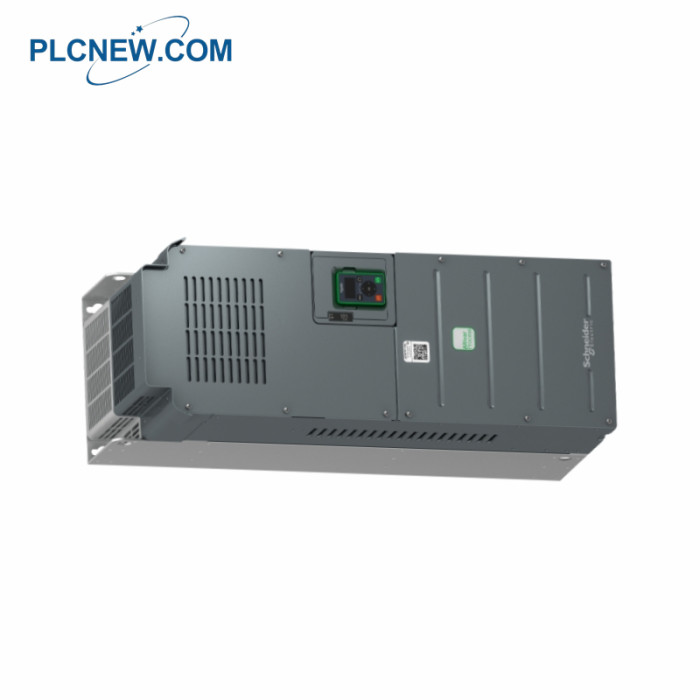

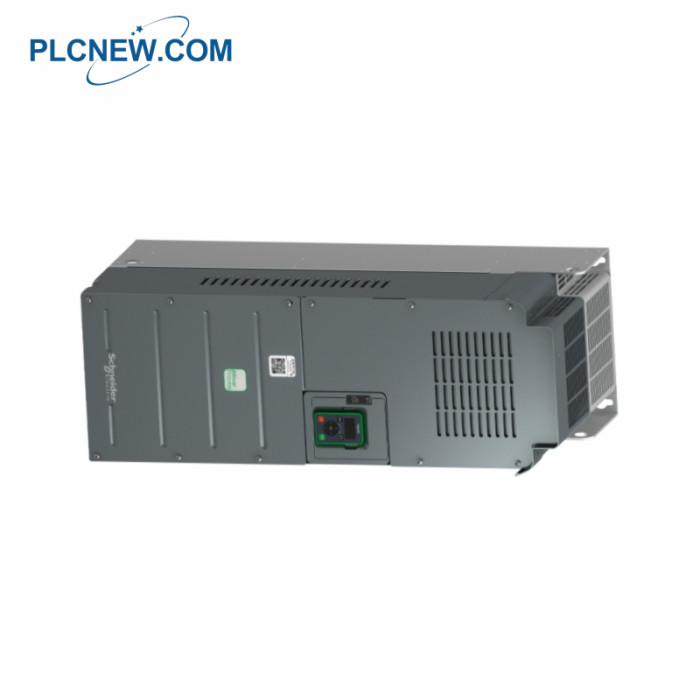

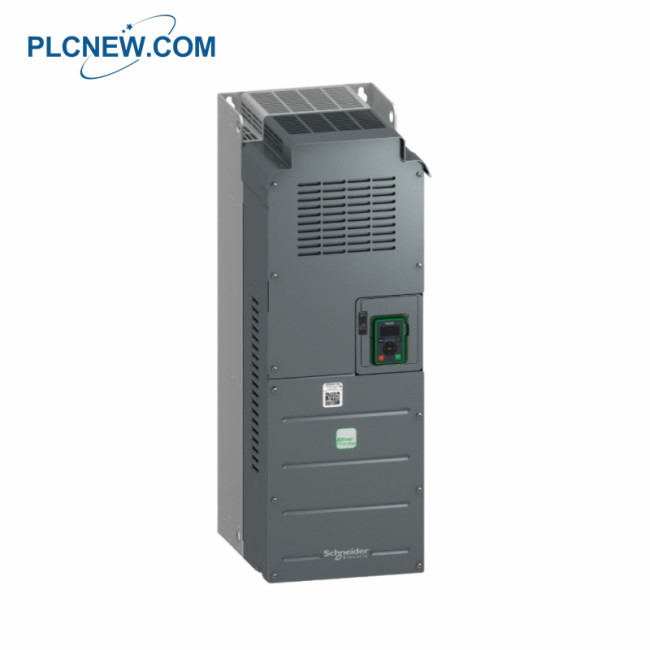

Schneider ATV610C11N4 Variable Speed Drive

Schneider ATV610C11N4 Variable Speed Drive

◆Fast Speed & Best Service

Sales Name: Frida

Phone/WhatsApp:+86-18965196563
Email:sales17@amikon.cn

◆Description & Specifications

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from

380V to 415V AC. It is suitable for motors with power rating up to 110kW / 150hp for applications requiring slight overload

(up to 120%). It is suitable for motors with power rating up to 90kW / 125hp for applications requiring significant overload

(up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save

process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard

for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 82kg

and its dimensions are, 320mm wide, 852mm high, 390mm deep. this drive has been specially designed for standard

applications in the market segments water and wastewater and oil and gas and in the domains process and machine management

and building management.

Dimensions (WxHxD): 300x850x375 mm (1161mm with IP21 kit)
Net weight: 85.5 kg
Analogue input number: 3
Discrete input number: 6
Discrete input: Positive: <5V (0), >1V (1); Negative: >16V (0), <10V (1); Pulse: <0.6V (0), >2.5V (1)
Analogue output number: 2
Supply frequency: 50-60 Hz +/-5%
Network phases: 3
Rated supply voltage: 380-460V -15...+10%
Motor power: 110 kW / 150 hp (normal); 90 kW / 125 hp (heavy)
Line current: 201A at 380V (normal); 175.7A at 460V (normal); 170A at 380V (heavy); 148.1A at 460V (heavy)
Prospective line Isc: 50 kA
Apparent power: 140.0 kVA at 460V (normal); 118.8 kVA at 460V (heavy)
Continuous output current: 211A at 2.5kHz (normal); 173A at 2.5kHz (heavy)
Maximum transient current: 232A for 60s (normal); 260A for 60s (heavy)
Output frequency: 0.1-500 Hz
Nominal switching frequency: 2.5 kHz
Switching frequency: 1-8 kHz adjustable
Number of preset speeds: 16

◆Ordering Information

Payment Term: T/T

Warranty: 12 month
Shipment: Fedex,DHL,TNT or UPS (US Postal Service) ARAMEX,CHIRLINE
Delivery: Shipped in 3 days after payment
Products Condition: NEW & ORIGINAL
Minimum Order Quantity: 1 Piece
