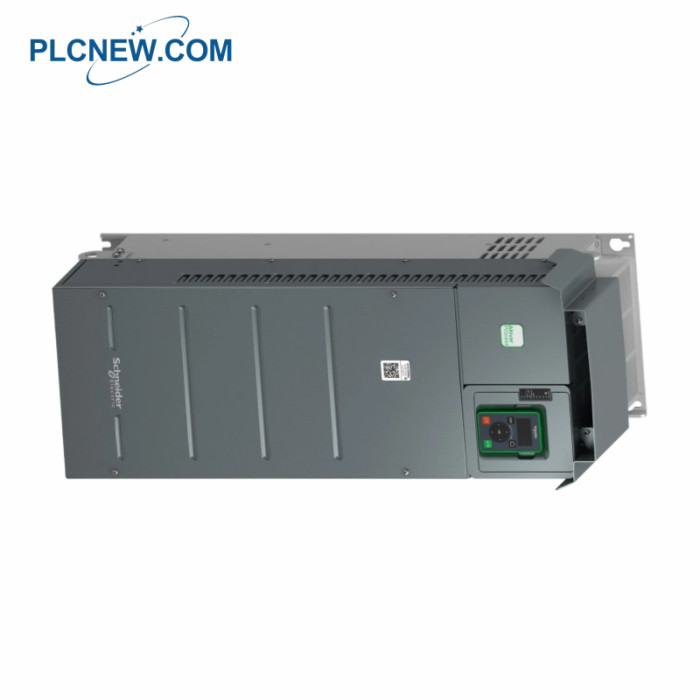

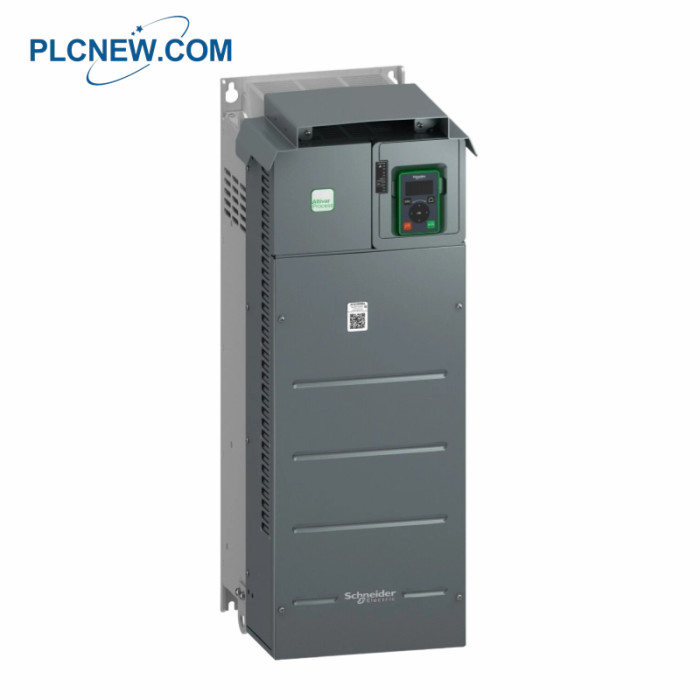

Schneider ATV610D90N4 Variable Speed Drive

Schneider ATV610D90N4 Variable Speed Drive

◆Fast Speed & Best Service

Sales Name: Frida

Phone/WhatsApp:+86-18965196563
Email:sales17@amikon.cn

◆Description & Specifications

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage

from 380V to 415V AC. It is suitable for motors with power rating up to 90kW / 125hp for applications requiring slight

overload (up to 120%). It is suitable for motors with power rating up to 75kW / 100hp for applications requiring

significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the

desired configuration, to help save process control and operating time. It has integrated radio interference input filters in

accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2,

category C3 in environment 1 or 2. It weighs 53.7kg and its dimensions are, 290mm wide, 762mm high, 323mm deep.

This drive has been specially designed for standard applications in the market segments water and wastewater and oil and

gas and in the domains process and machine management and building management.

Supply frequency: 50...60 Hz ±5 %
Network number of phases: 3 phases
Rated supply voltage [Us]: 380...460 V - 15...10 %
Motor power kW: 90 kW for normal duty; 75 kW for heavy duty
Motor power hp: 125 hp for normal duty; 100 hp for heavy duty
Line current: 177.8 A at 380 V (normal duty); 159.9 A at 460 V (normal duty);

155.8 A at 380 V (heavy duty); 138.1 A at 460 V (heavy duty)
Prospective line Isc: 50 kA
Apparent power: 127.4 kVA at 460 V (normal duty); 110.0 kVA at 460 V (heavy duty)
Continuous output current: 173 A at 2.5 kHz (normal duty); 145 A at 2.5 kHz (heavy duty)
Maximum transient current: 190 A during 60 s (normal duty); 218 A during 60 s (heavy duty)
Output frequency: 0.1…500 Hz
Nominal switching frequency: 2.5 kHz
Switching frequency: 1...8 kHz adjustable
Number of preset speeds: 16 preset speeds
Width: 290 mm
Height: 762 mm; 922 mm with EMC plate
Depth: 323 mm
Net weight: 53 kg

◆Ordering Information

Payment Term: T/T

Warranty: 12 month
Shipment: Fedex,DHL,TNT or UPS (US Postal Service) ARAMEX,CHIRLINE
Delivery: Shipped in 3 days after payment
Products Condition: NEW & ORIGINAL
Minimum Order Quantity: 1 Piece
