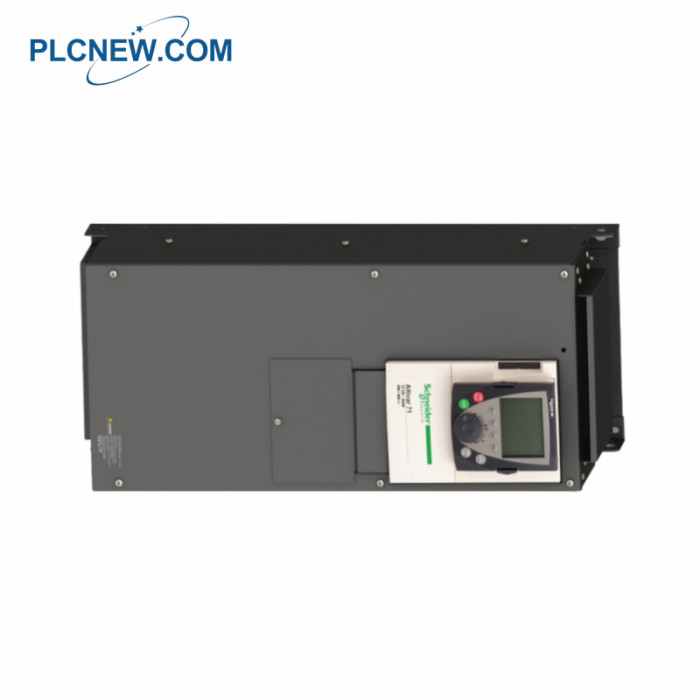

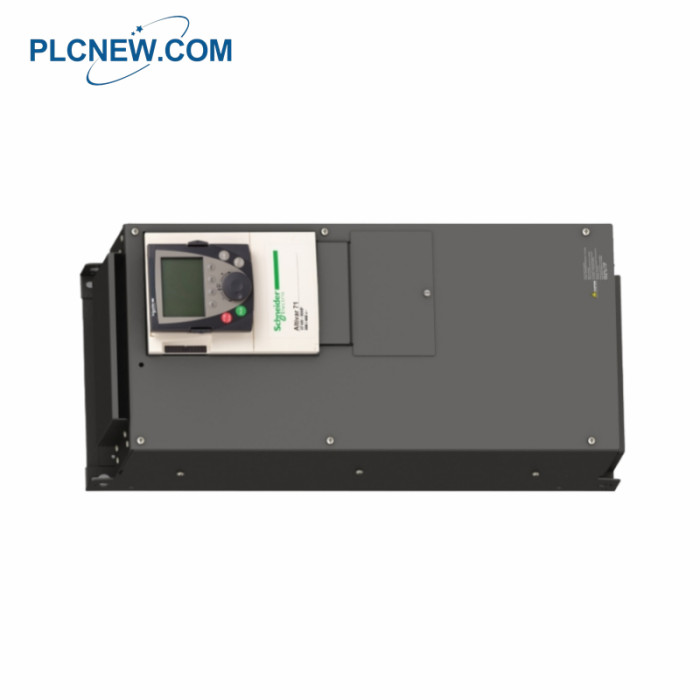

Schneider ATV71HD75N4 Variable Speed Drive
◆Fast Speed & Best Service
Sales Name: Frida
Phone/WhatsApp:+86-18965196563
Email:sales17@amikon.cn
◆Description & Specifications
The Schneider ATV71HD75N4 is a powerful and versatile variable speed drive, delivering 75 kW (100 HP) of reliable motor control.
Designed for heavy-duty industrial applications, it operates on a 480V supply and comes equipped with an integrated EMC filter
to ensure compliance with electromagnetic compatibility standards. Featuring a built-in graphic terminal, the ATV71HD75N4
offers user-friendly monitoring, setup, and configuration. It provides advanced motor control capabilities, high energy efficiency, and
robust protection, making it ideal for pumps, fans, conveyors, and other demanding process applications.
Motor power kW: 75 kW, 3 phases at 380...480 V
Motor power hp: 100 hp, 3 phases at 380...480 V
Maximum motor cable length: 100 m shielded cable; 200 m unshielded cable
Power supply voltage: 380...480 V - 15...10 %
Line current: 137 A for 480 V 3 phases 75 kW / 100 hp;
167 A for 380 V 3 phases 75 kW / 100 hp
Apparent power: 109.9 kVA at 380 V 3 phases 75 kW / 100 hp
Prospective line Isc: 22 kA for 3 phases
Nominal output current: 124 A at 2.5 kHz, 460 V 3 phases 75 kW / 100 hp;
160 A at 2.5 kHz, 380 V 3 phases 75 kW / 100 hp
Maximum transient current: 240 A for 60 s, 3 phases 75 kW / 100 hp;
264 A for 2 s, 3 phases 75 kW / 100 hp
Output frequency: 0.1…500 Hz
Nominal switching frequency: 2.5 kHz
Switching frequency: 1...16 kHz adjustable; 2.5...16 kHz with derating factor
Power supply voltage limits: 323…528 V
Power supply frequency: 50...60 Hz - 5...5 %
Power supply frequency limits: 47.5...63 Hz
Frequency resolution: Analog input: 0.024/50 Hz; Display unit: 0.1 Hz
Height: 630 mm
Depth: 290 mm
Width: 320 mm
Net weight: 44 kg
◆Ordering Information
Payment Term: T/T
Warranty: 12 month
Shipment: Fedex,DHL,TNT or UPS (US Postal Service) ARAMEX,CHIRLINE
Delivery: Shipped in 3 days after payment
Products Condition: NEW & ORIGINAL
Minimum Order Quantity: 1 Piece
