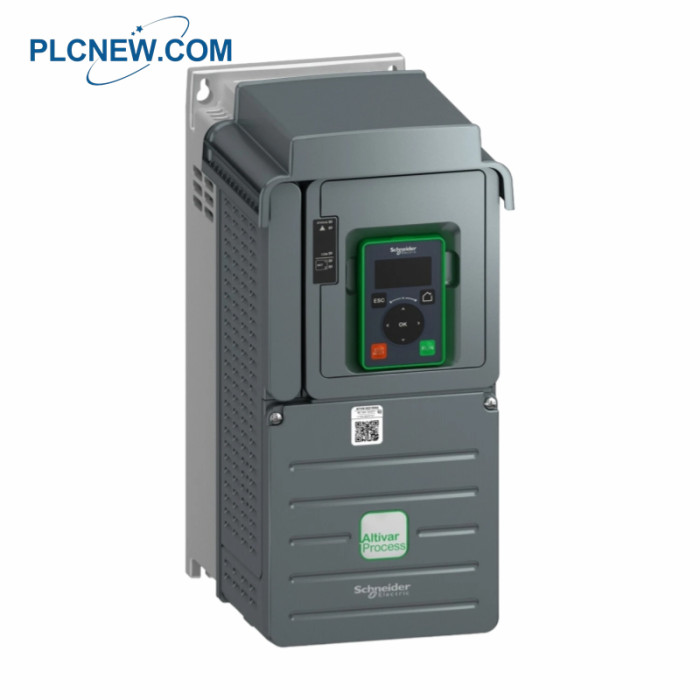

Schneider ATV610D15N4 Variable Speed Drive

Schneider ATV610D15N4 Variable Speed Drive

◆Fast Speed & Best Service

Sales Name: Frida

Phone/WhatsApp:+86-18965196563
Email:sales17@amikon.cn

◆Description & Specifications

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from

380V to 415V AC. It is suitable for motors with power rating up to 15kW / 20hp for applications requiring slight overload

(up to 120%). It is suitable for motors with power rating up to 11kW / 15hp for applications requiring significant overload (up to 150%).

It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control

and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical

power drive "products" IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 7.2kg and its dimensions are,

171mm wide, 360mm high, 233mm deep. this drive has been specially designed for standard applications in the market segments water

and wastewater and oil and gas and in the domains process and machine management and building management.

Supply frequency: 50...60 Hz ±5 %
Network number of phases: 3 phases
Rated supply voltage [Us]: 380...460 V - 15...10 %
Motor power kW: 15 kW for normal duty; 11 kW for heavy duty
Motor power hp: 20 hp for normal duty; 15 hp for heavy duty
Line current: 29.4 A at 380 V (normal duty); 26.0 A at 460 V (normal duty); 23 A at 380 V (heavy duty); 20.8 A at 460 V (heavy duty)
Prospective line Isc: 22 kA
Apparent power: 20.7 kVA at 460 V (normal duty); 16.6 kVA at 460 V (heavy duty)
Continuous output current: 31.7 A at 4 kHz (normal duty); 23.5 A at 4 kHz (heavy duty)
Maximum transient current: 34.9 A during 60 s (normal duty); 35.3 A during 60 s (heavy duty)
Output frequency: 0.1…500 Hz
Nominal switching frequency: 4 kHz
Switching frequency: 2...12 kHz adjustable
Number of preset speeds: 16 preset speeds
Frequency resolution: Display unit: 0.1 Hz; Analog input: 0.012/50 Hz
Width: 171 mm
Height: 360 mm; 423 mm with EMC plate
Depth: 233 mm
Net weight: 7.730 kg

◆Ordering Information

Payment Term: T/T

Warranty: 12 month
Shipment: Fedex,DHL,TNT or UPS (US Postal Service) ARAMEX,CHIRLINE
Delivery: Shipped in 3 days after payment
Products Condition: NEW & ORIGINAL
Minimum Order Quantity: 1 Piece
