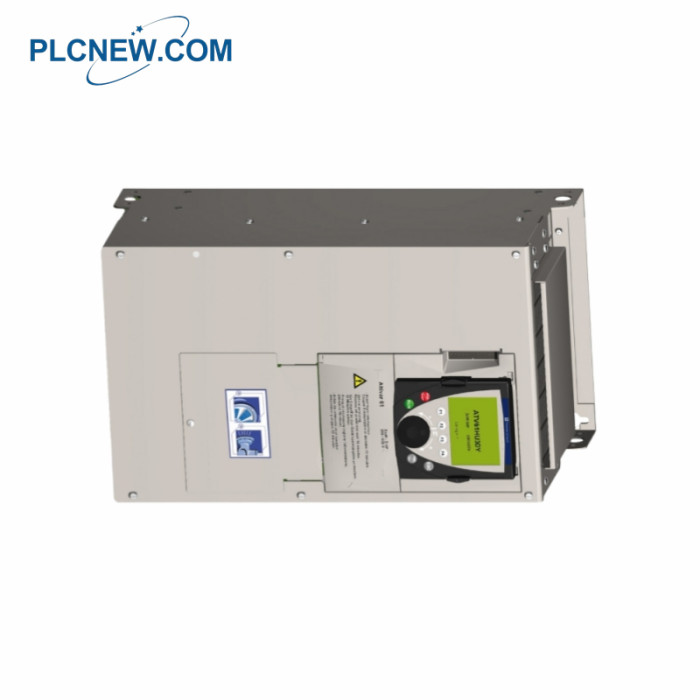

Schneider ATV61HD22N4Z Variable Speed Drive
◆Fast Speed & Best Service
Sales Name: Frida
Phone/WhatsApp:+86-18965196563
Email:sales17@amikon.cn
◆Description & Specifications
The Schneider ATV61HD22N4Z is a high-performance variable speed drive designed for demanding industrial applications.
With a power rating of 22 kW (30 HP), it operates on a 480V, 3-phase supply, ensuring reliable control of motor speed and
energy efficiency. Built with advanced drive technology, it supports Modbus and CANopen communication protocols, making
integration into systems seamless.
Component name: ATV61
Motor power kW: 22 kW, 3 phases at 380...480 V
Motor power hp: 30 hp, 3 phases at 380...480 V
Power supply voltage: 380...480 V - 15...10 %
Supply number of phases: 3 phases
Line current: 42 A for 480 V 3 phases 22 kW / 30 hp; 50 A for 380 V 3 phases 22 kW / 30 hp
Apparent power: 32.9 kVA at 380 V 3 phases 22 kW / 30 hp
Maximum prospective line Isc: 22 kA for 3 phases
Maximum transient current: 57.6 A for 60 s, 3 phases
Nominal switching frequency: 12 kHz
Switching frequency: 1...16 kHz adjustable; 12...16 kHz with derating factor
Power supply voltage limits: 323…528 V
Power supply frequency: 50...60 Hz - 5...5 %
Power supply frequency limits: 47.5...63 Hz
Continuous output current: 40 A at 12 kHz, 460 V - 3 phases; 48 A at 12 kHz, 380 V - 3 phases
Output frequency: 0.1…599 Hz
Minimum switching current: 3 mA at 24 V DC for configurable relay
Net weight: 30 kg
Width: 240 mm
Height: 420 mm
Depth: 236 mm
◆Ordering Information
Payment Term: T/T
Warranty: 12 month
Shipment: Fedex,DHL,TNT or UPS (US Postal Service) ARAMEX,CHIRLINE
Delivery: Shipped in 3 days after payment
Products Condition: NEW & ORIGINAL
Minimum Order Quantity: 1 Piece
