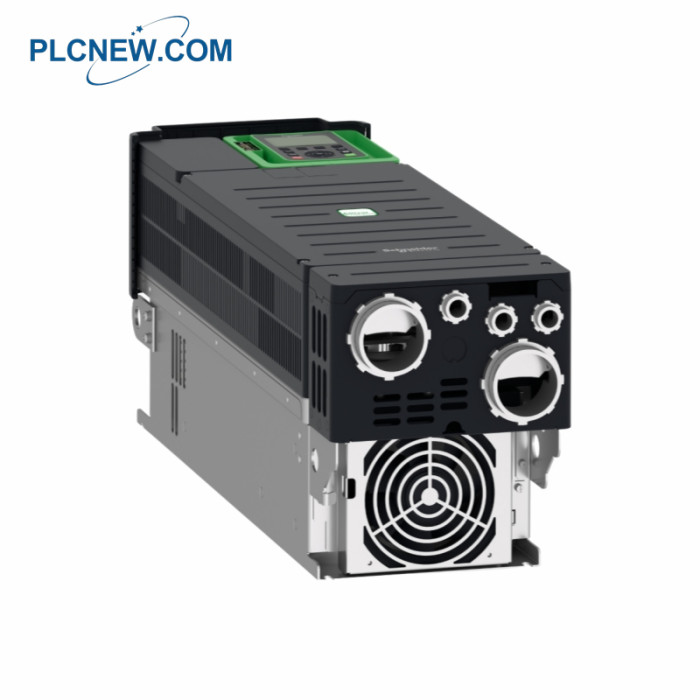

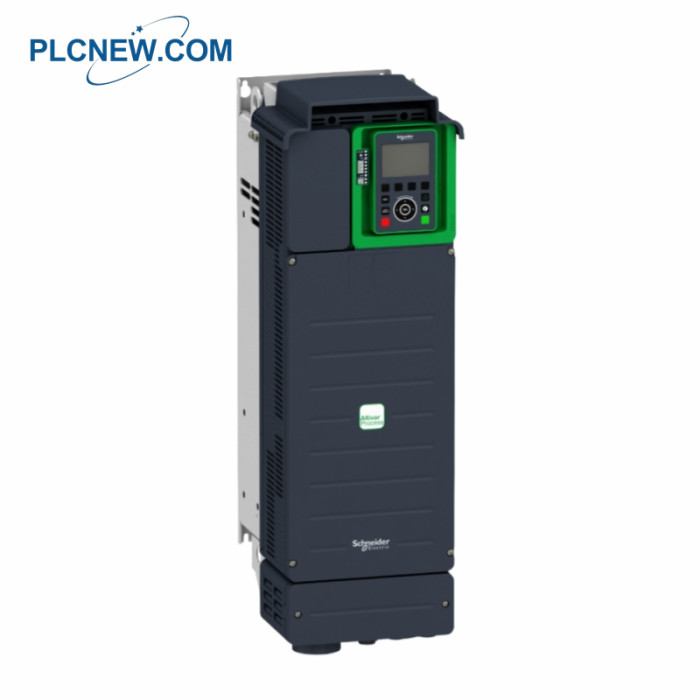

Schneider ATV930D30N4 Variable Speed Drive

Schneider ATV930D30N4 Variable Speed Drive

◆Fast Speed & Best Service

Sales Name: Frida

Phone/WhatsApp:+86-18965196563
Email:sales17@amikon.cn

◆Description & Specifications

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors.

It is suitable for motors with power rating up to 30kW/40hp for applications requiring slight overload (up to 120%).

It is suitable for motors with power rating up to 22kW/30hp for applications requiring significant overload (up to 150%).

It works at a rated supply voltage from 380V to 480V AC. This variable speed / frequency drive (VSD / VFD) is specifically

designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and

beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling

in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown.

Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance.

Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into architectures.

It is designed to be mounted in vertical position (+/- 10 °) on a wall.

Continuous output current: 61.5 A at 4 kHz (normal duty); 46.3 A at 4 kHz (heavy duty)
Rated supply voltage [Us]: 380...480 V - 15...10 %; 380...480 V
Relative symmetric mains voltage tolerance: 10 %
Nominal output current: 61.5 A
Maximum output frequency: 599 Hz
Nominal switching frequency: 4 kHz
Maximum input current: 53.3 A
Maximum output voltage: 480.0 V
Apparent power: 38.1 kVA at 480 V (normal duty); 29.8 kVA at 480 V (heavy duty)
Maximum transient current: 73.8 A during 60 s (normal duty);

69.5 A during 60 s (heavy duty)
Network frequency: 50...60 Hz
Prospective line Isc: 50 kA
Base load current at high overload: 46.3 A
Base load current at low overload: 61.5 A
Width: 226 mm
Height: 673 mm
Depth: 274 mm
Net weight: 28 kg

◆Ordering Information

Payment Term: T/T

Warranty: 12 month
Shipment: Fedex,DHL,TNT or UPS (US Postal Service) ARAMEX,CHIRLINE
Delivery: Shipped in 3 days after payment
Products Condition: NEW & ORIGINAL
Minimum Order Quantity: 1 Piece

◆About Us

We specialize in supplying discontinued and hard-to-find industrial spare parts. With over 30,000 items in stock,

we provide fast delivery, quick replacement, and reliable solutions to minimize downtime and protect your production.
Our product range covers DCS systems,  obot systems, large servo control systems, MVME modules,

Anybus converters, RTUs, IPCs, low-frequency screens, HMIs, and SCSI interfaces.
Backed by years of industry experience, our professional team connects customers worldwide with the right parts

—whether new or obsolete.
