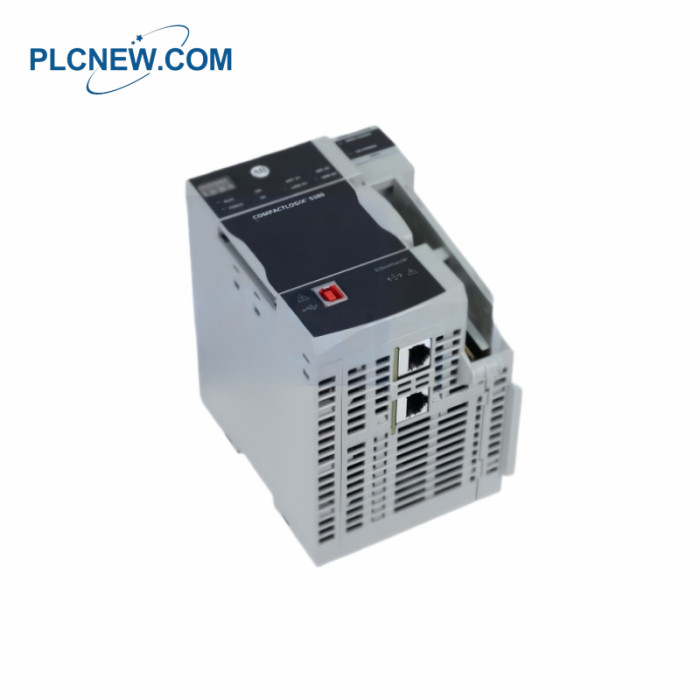

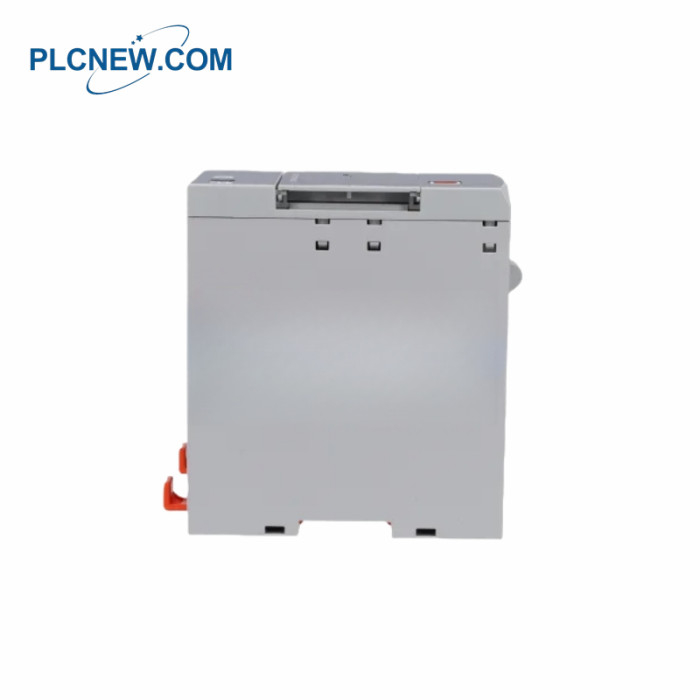

5069-L380ERM Controller

5069-L380ERM Controller

Details of the module

Part Number: 5069-L380ERM
Weight: 5.00 lbs (2.27 kg)
Application Memory: 8 MB
Non-volatile Memory: 2 GB via 1784-SD2 (ships with the controller)
Local I/O Modules: 31 I/O modules
Communication Rate, Ethernet: 10 Mbps / 100 Mbps / 1 Gbps
No. of Ethernet Nodes: 150
No. of Supported Sockets: 32
No. of Motion Axes: 256
No. of CIP Drive: 28
Communication Rate, USB: 12 Mbps
Ethernet/IP Nodes: 70 Ethernet/IP Nodes
I/O Expansion: 31 I/O
Motion Axes: 28 Motion Axes

The 5069-L380ERM is a controller. This is a Programmable Controller (PAC) that is used for general purpose and

standard requirements. This controller also comes with embedded motion control capability as it can implement

such control over Ethernet I/P.
The 5069-L380ERM mainly features an 8 MB user memory coupled with a 2 GB non-volatile memory. This

non-volatile may be expanded up to 32 GB or to other size as needed. Compatible Secure Digital (SD) cards for

memory expansion are 1784-SD1 (1 GB), 1784-SDHC8 (8 GB),1784-SDHC32 (32 GB) and 9509-CMSDCD4 (4 GB)

CodeMeter CmCard card.

The 5069-L380ERM can be configured with up to 32 periodic, continuous and event task types. Each task can handle

up to 1000 programs. For communication, this controller is provided with Two (2) Ethernet communication interfaces

as primary communication ports and One (1) USB port for local communication and configuration purposes.

Industrial communication is not supported by the USB port. The transmission rate of the Ethernet port can be

configured for 10 / 100 Mbps and 1 Gbps while the USB port support 12 Mbps transmission speed.

Frequently asked questions：

Q1: What is the 5069-L380ERM used for?
A: The 5069-L380ERM is a CompactLogix controller used for medium- to large-scale industrial and motion

control systems.
Q2: How many CIP drives can the 5069-L380ERM support?
A: It supports up to 28 CIP drives.
Q3: What is the USB communication rate of the 5069-L380ERM?
A: The 5069-L380ERM has a USB communication rate of 12 Mbps.
Q4: How much application memory does the 5069-L380ERM have?
A: The controller comes with 8 MB of application memory.
