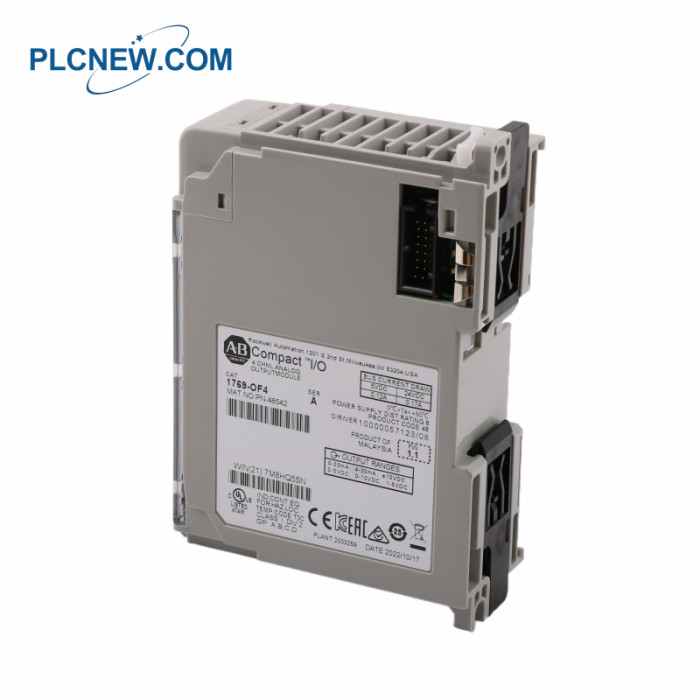

1769-OF4 Analog Output Module

1769-OF4 Analog Output Module

1769-OF4 Specification

Part Number/Catalog No.: 1769-OF4
Module Type: Analog Output Module
Number of Outputs: Four (4) Single Ended
Communication Cable: 4 Point
Shipping Weight: 2 lbs
Power Supply Distance Rating: 8
Shipping Dimensions: 8 x 8 x 5 in
Analog Ranges:
Voltage: ±10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc
Current: 0 to 20 mA, 4 to 20 mA
Series: A and B
Full Scale Analog Ranges:
Voltage: ±10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc
Current: 0 to 21 mA, 3.2 to 21 mA
Replacement Terminal Block Part Number: 1769-RTBN18
Analog Data Format: 15 bits plus sign (unipolar and bipolar)
Replacement Door Part Number: 1769-RD
Conversion Rate: 2.5 ms
Wire Type: Copper
Current Draw @ 5.1V: 120 mA
Solid Wire Size: 22 to 14 AWG
Current Draw @ 24V: 170 mA
Stranded Wire Size: 22 to 16 AWG
Heat Dissipation: 2.86 W

1769-OF4 Description

The 1769-OF4 module is an analog output module that produces voltage/current signals. This module has Four (4)

single-ended outputs, with an output voltage range of 0 to 10 volts and 0-20 mA. The modules resolution is

15-bit unipolar/bipolar with a draw current of 120 mA at 5.1 Volts. The module’s maximum heat dissipation rating

of 2.86 Watts and a 3.8-millisecond interruption-enabled maximum conversion rate. The 1769-OF4 module has a

2.9-millisecond step response rating of 63% and a resistivity load of 0 to 600 Ohms of current or 1 KOhms; or

greater of voltage. The 1769-OF4 has a maximum inductive load of 0.1 mH of current load and 1.0 µF of voltage

load. It has an accuracy margin of 0.5% (full scale at 25 degrees Celsius), and an output ripple of +/- 0.05% at 0

to 50 kilohertz. This analog output module has an accuracy drift of +/- 0.0086% (per degree Celsius) and a

non-linearity margin of +/- 0.05%. It also has a module error margin (at 0 to 60 degrees Celsius) of +/-0.8%,

and repeatability of +/-0.05%. The 1769-OF4 module has an output impedance of <1 MOhm for voltage output

and >1 MOhms for current output. The 1769-OF4 module has current circuit protection of up to 40 mA and protection

against excess voltage. It has a power up/power down output response of less than 1 millisecond and operational

voltage rated at 30 Volts DC. It has a weight of 280 G (0.61 pounds) and module dimensions of 118 by 35 by 87

millimeters (4.65 by 1.38 by 3.43 inches).
