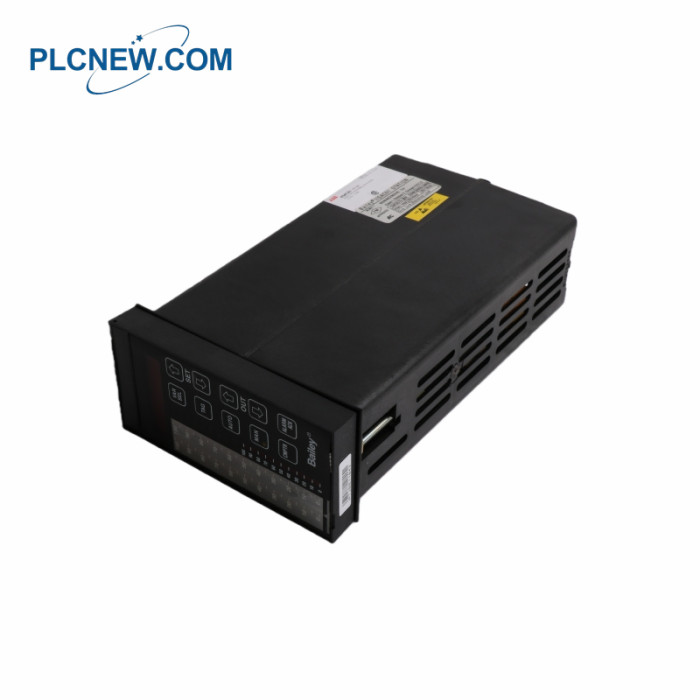

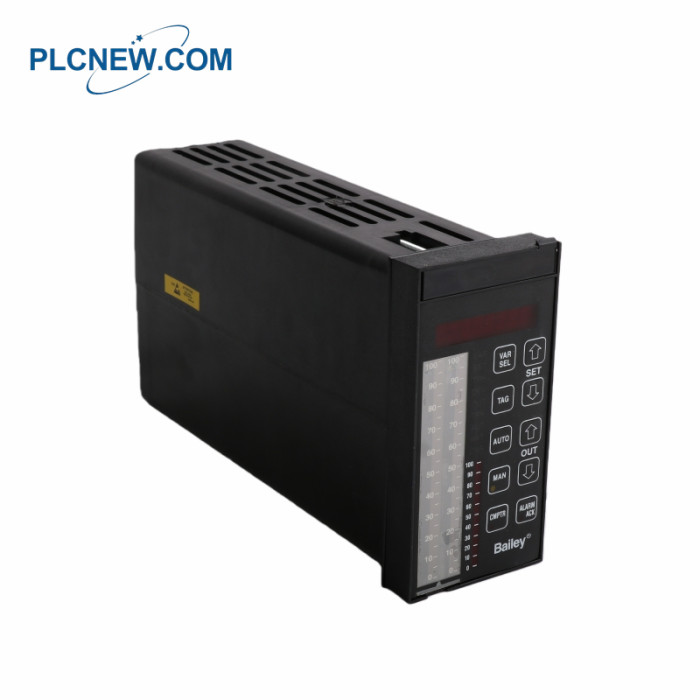

ABB IISAC01 Analog Control Station
Product parameters
Analog Output
Current Output: 3 to 21 mA
Load: 600 Ω maximum
Compliance Inductance: 600 mH maximum
Accuracy: 2.0% of span at 25°C (77°F)
D/A Resolution: 8 bits
Analog Input
Voltage Range: +0.75 VDC to +5.25 VDC
Input Impedance: >10 MΩ
Accuracy: 1.5% of span at 25°C (77°F)
A/D Resolution: 8 bit
Normal Mode Rejection: 75 dB minimum at 60 Hz
Common Mode Rejection: 90 dB minimum at 60 Hz
Common Mode Voltage: ±5 VDC maximum
Electric Drive
R/L Contact: 100 mA maximum (sink or source)
M/A Signal: 100 mA maximum (sink or source)
M/A Power: 21.6 to 27 VDC
Environmental Specifications
Ambient Temperature: 5°C to 40°C (41°F to 104°F)
Humidity:
Operating: 20% to 80% (non-condensing)
Storage: 10% to 95% (non-condensing)
Atmospheric Pressure: Sea level to 3 km (1.86 mi)
The IISAC01 Analog Control Station provides an operator inter-face for INFI 90@ system applications. It is
a panel mounteddevice that interfaces directly with a manual/auto transfer sta-tion block confgured in a
multi-function processor module.The analog control station (SAC) displays process variables.allows set point
adjustment and provides analog output man-ual control, It also provides analog output backup in the eventof other
system faults.
