1769-IF4 Analog Input Module

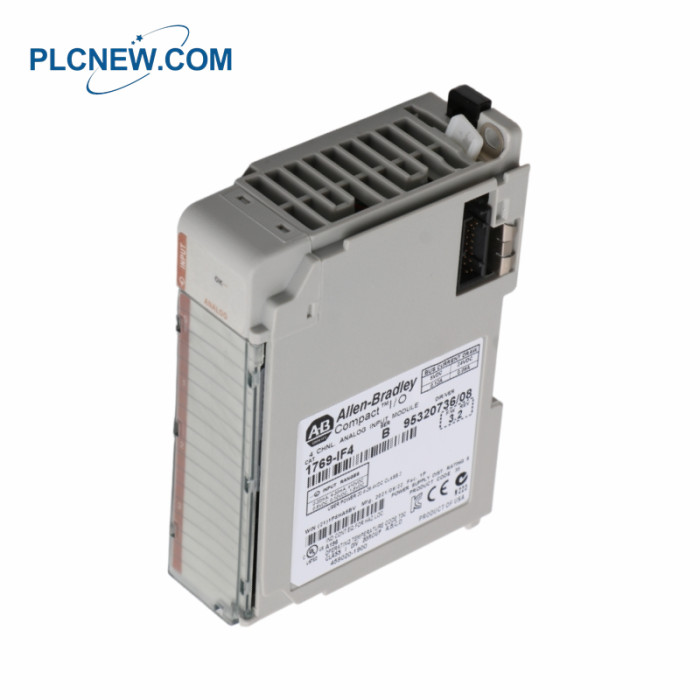

1769-IF4 Analog Input Module

1769-IF4 Specification

Part Number / Catalog No.: 1769-IF4
Product Type: Analog Input Module
Number of Inputs: 4 (Differential and Single-Ended)
Converter Type: Delta Sigma
Resolution: 14 bits (unipolar), 14 bits + sign (bipolar)
Current Signal Normal Ranges: 0…20 mA, 4…20 mA
Current Signal Full Ranges: 0…21 mA, 3.2…21 mA
Input Current Range: 0…21 mA
Voltage Signal Normal Ranges: ±10 V DC, 0…10 V DC, 0…5 V DC, 1…5 V DC
Voltage Signal Full Ranges: ±10.5 V DC, -0.5…10.5 V DC, -0.5…5.25 V DC, 0.5…5.25 V DC
Input Voltage Range: 0…10.5 V DC
Backplane Current: 1.4 A at 24 V DC
Power Dissipation: 7.5 W
Power Consumption: 33.6 W
External Power Switch: 24 V DC
Power Supply Distance Rating: 8

1769-IF4 Description

The 1769-IF4 is an analog input module that is used with family of controllers. The Four (4) input channels of this

module are individually configured to receive current and voltage signals at ranges of 0-21 mA; 3.2 - 21 mA for

Current and ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC for Voltage. Nominal current signals are

0-20 mA and 4-20mA and voltage signals available are +/10VDC, 1-5VDC, 0-5VDC, 0-10VDC. This module is integrated

with an Analog to Digital (ADC) circuit with conversion type of Delta-Sigma. The module’s conversion resolution are 14

bits or unipolar and 14 bits plus sign or bipolar. The data processed by the module can be configured with data formats

as engineering units, scaled for PID, percent range and raw data.
