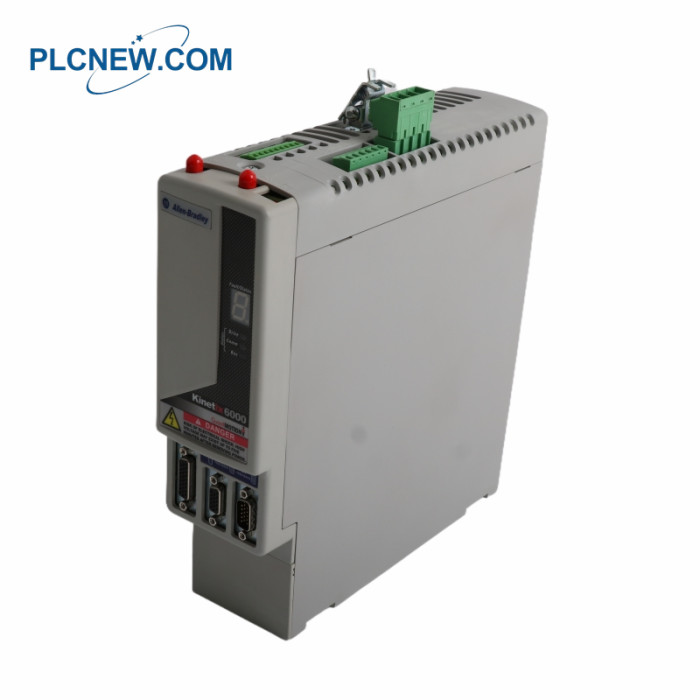

2094-BM01-S Integrated Axis Module

2094-BM01-S Integrated Axis Module

2094-BM01-S Specification

Part Number/Catalog No. : 22094-BM01-S
Product Description: Integrated Axis Module
Module Type: AM 400 Volt Class
Voltage Class: 400V
Nominal Drive Voltage: 360–480 VAC (3-Phase)
Nominal Input Voltage: 650 VDC
Continuous Output Current (rms): 6.1 A
Continuous Current (0-peak): 8.6 A
Peak Current: 8.6 A
Continuous Power Output (nominal): 3.9 kW
Internal Shunt Continuous Power: 50 W
Internal Shunt Peak Power: 5.6 kW
Bandwidth – Velocity Loop: 500 Hz
Bandwidth – Current Loop: 1300 Hz
Power Dissipation: 57–126 W
Efficiency: 98%
Weight: 7.0 lbs (3.18 kg)

2094-BM01-S Description

The Multi Axis Drive 2094-BM01-S is an axis module that provides direct connection to controlled devices via feedback cables. This axis module is mounted on a power rail, along with the integrated axis module, control module, shunt module and

other essential components that make up a Drive motion control system.
Drive provides user the capability of implementing simultaneous motion control of motors, typically in machines in

the manufacturing industry. This drive system provide accurate and synchronized control, making the motors and

compatible motion devices function as one unit.
The 2094-BM01-S has is a 400VAC class Axis Module with continuous current of 6.1 A and peak current of 9.2A for

Series A and 15.3 A for Series B and C drives and continuous output power of 3.9 kW. It has an efficiency of 98%

and short-circuit current rating of 200,000 A (rms) symmetrical. It has an integrated shunt with continuous power of

50W and peak power of 5.6 kW. The module’s internal shunt resistor has a resistance value of 115 ohms.
The module’s operating temperature requirement is 0…50 °C (32…122 °F) with relative humidity of 5…95% noncondensing.

It may be operated as well in an altitude of 1000 m (3281 ft) without derating and 3000 m (9843 ft) with derated

functionality. The module’s acceptable vibration range is 5…55 Hz @ 0.35 mm (0.014 in.) double amplitude,

continuous displacement; 55…500 Hz @ 2.0 g peak constant acceleration while shock rating is at 15 g within11 ms

half-sine pulse.
