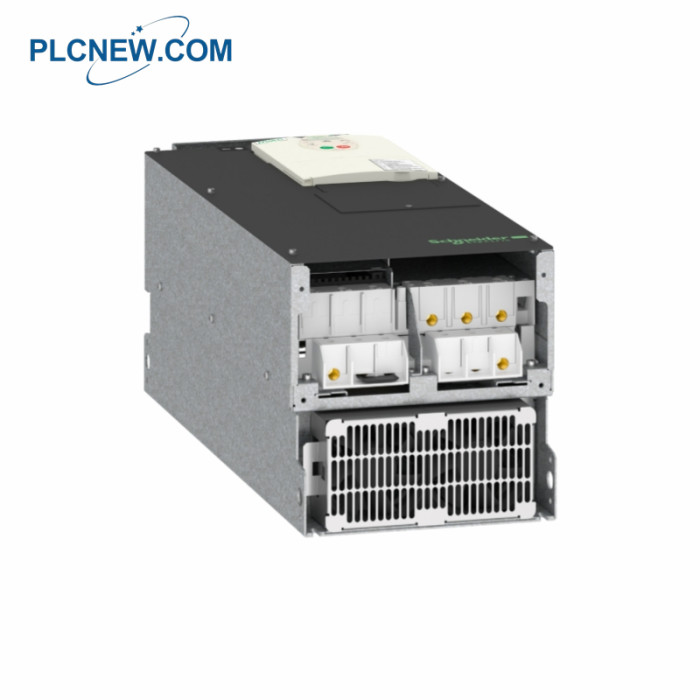

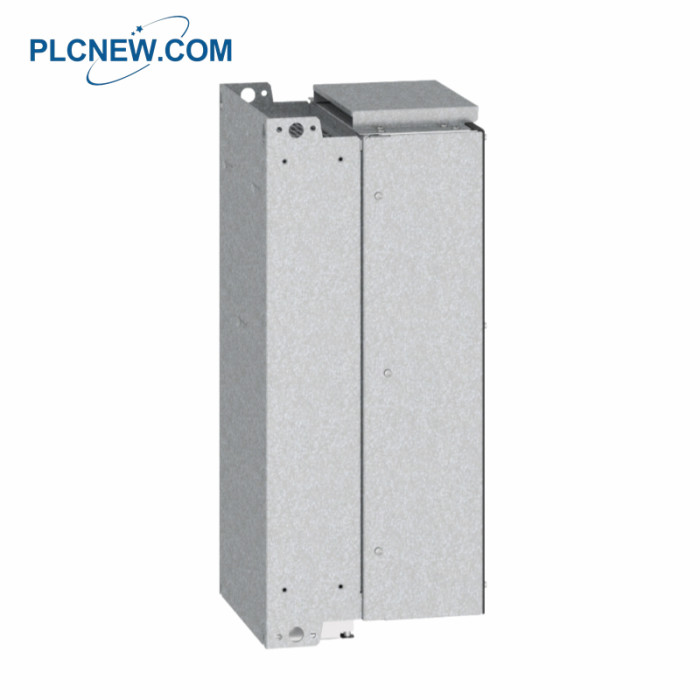

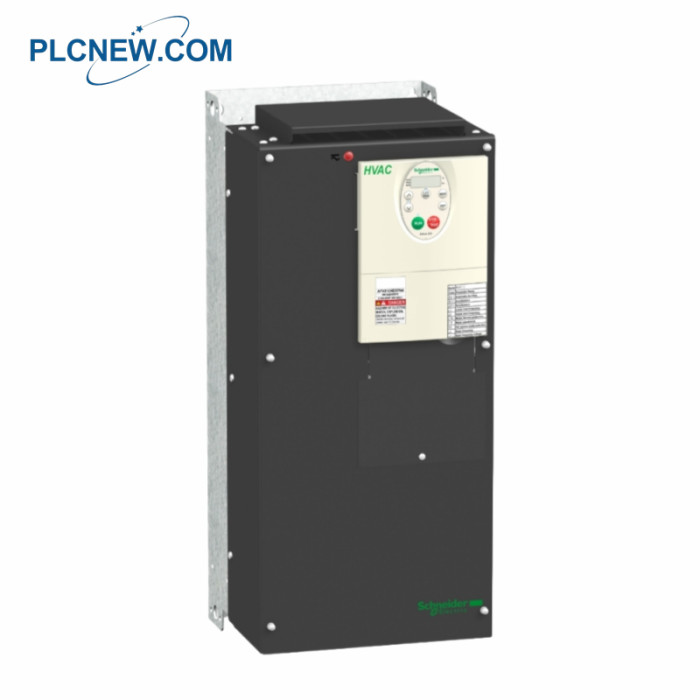

Schneider ATV212HD37N4 Variable Speed Drive

Schneider ATV212HD37N4 Variable Speed Drive

See Product Details➽

Dimensions (WxHxD): 240x550x244 mm
Data format: 8 bits, 1 stop, configurable parity
Torque accuracy: +/-15%
Transient overtorque: 120% for 60s
Acceleration/deceleration: Linear 0.01-3200 s
Switching frequency: 6-16 kHz adjustable (8-16 kHz with derating)
Nominal switching frequency: 8 kHz
Network frequency: 47.5-63 Hz
Prospective line Isc: 22 kA
Insulation resistance: >=1 mOhm (500V DC, 1 min)
Frequency resolution: 0.1 Hz (display); 0.024/50 Hz (analog input)
Power dissipation: 976 W
Air flow: 334 m³/h
Motor power range: 30-50 kW (380-500V, 3 phases)
Transmission rate: 9600 or 19200 bps
Tightening torque: 0.6 N.m (control); 24 N.m (power)
Supply: Reference pot: 10.5V DC, <10A; Internal: 24V DC (21-27V), <200A
Sampling duration: 2 ms (discrete); 3.5 ms (VIA analog); 22 ms (VIB analog)
Accuracy: +/-0.6% (VIA/VIB, 60°C); +/-1% (FIA, 60°C)
Linearity error: +/-0.15% of max (VIA/VIB); +/-0.2% (FM)
Analogue output type: FM configurable: 0-10V DC (7620 Ohm) or 0-20mA (970 Ohm), 10 bits
Minimum switching current: 3 mA at 24V DC
Maximum switching current: 5A resistive (250V AC/30V DC); 2A inductive (250V AC/30V DC)
Discrete input: Positive: <=5V (0), >=11V (1); Negative: >=16V (0), <=10V (1)
Dielectric strength: 3535 V DC (earth-power); 5092 V DC (control-power)
Motor power: 37 kW / 50 hp
Supply voltage limits: 323-528 V
Supply frequency: 50-60 Hz +/-5%
Line current: 68.9A at 380V; 54.4A at 480V
Rated supply voltage: 380-480V -15...+10%
Apparent power: 52 kVA at 380V
Continuous output current: 79A (380V, 460V)
Maximum transient current: 86.9A for 60s
Output frequency: 0.5-200 Hz
Speed range: 1-10
