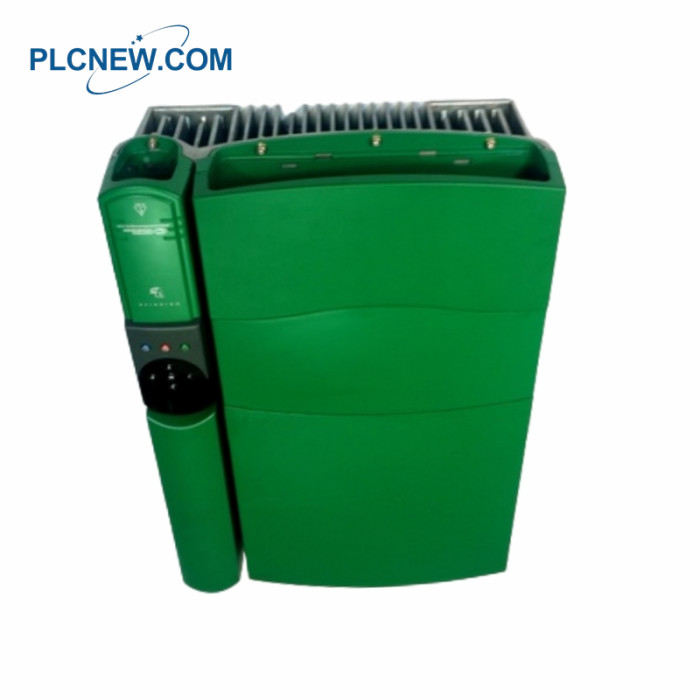

Control Techniques UNI4401 Inverter drive

Control Techniques UNI4401 Inverter drive

Control Techniques UNI4401 Specification

Manufacturer: Control Techniques
Product Line: Unidrive
Part Number: UNI4401
Weight: 115.00 lbs (52.16 kg)
Description: Universal Variable Speed AC Drive
Voltage Range: 380 to 480 VAC ±10%
Nominal Power Rating (kW): 45 kW
Nominal Power Rating (HP): 75 HP
Output Current: 96 A
Typical Input Current: 76 A
Operating Modes: Open Loop V/f, Open Loop Vector, Closed Loop Vector, Servo, Regen
Ambient Operating Temperature: 0 to 50 °C
Minimum Temperature at Power-Up: -10 °C
Humidity: 95% RH (no condensation)
Ambient Storage Temperature: -40 to 50 °C
Model Size Class: Size 4
Voltage Class: 400 V

Control Techniques UNI4401 Description

The Control Techniques UNI4401 is classified as a universal variable speed AC drive, ensuring flexibility in managing

motor operations. It is capable of handling a voltage range between 380 to 480 VAC with a tolerance of ±10%,

making it suitable for various electrical environments. This drive's nominal power capacity is rated at 45 kW or 75

HP, and it can deliver an output current of up to 96 amperes, supported by a typical input current of 76 amperes.
Regarding its physical characteristics, the UNI4401 weighs approximately 70 kg (154 lbs), making it substantial for its

size. It falls under the Size 4 model size classification within the Control Techniques family of drives. The ambient

operating temperature for this unit is defined between 0 to 50 °C. Before power-up, the drive can endure conditions

down to -10 °C.

Frequently Asked Questions

Q1: What is the UNI4401?
A: The UNI4401 is an Inverter Drive (Variable Frequency AC Drive) from Control Techniques’ Unidrive series,

designed for high-power motor control in industrial applications.
Q2: What is the UNI4401 nominal power rating?
A: The drive is rated at 75 HP.
Q3: What is the UNI4401 output current?
A: The UNI4401 output current is 96 A, suitable for heavy-duty motor loads.
Q4: What is the UNI4401 typical input current?
A: The typical input current is 76 A.
