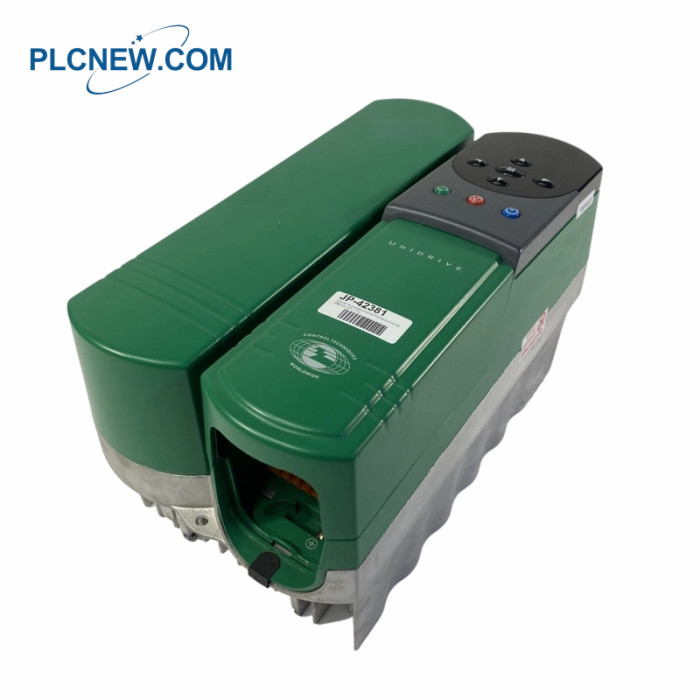

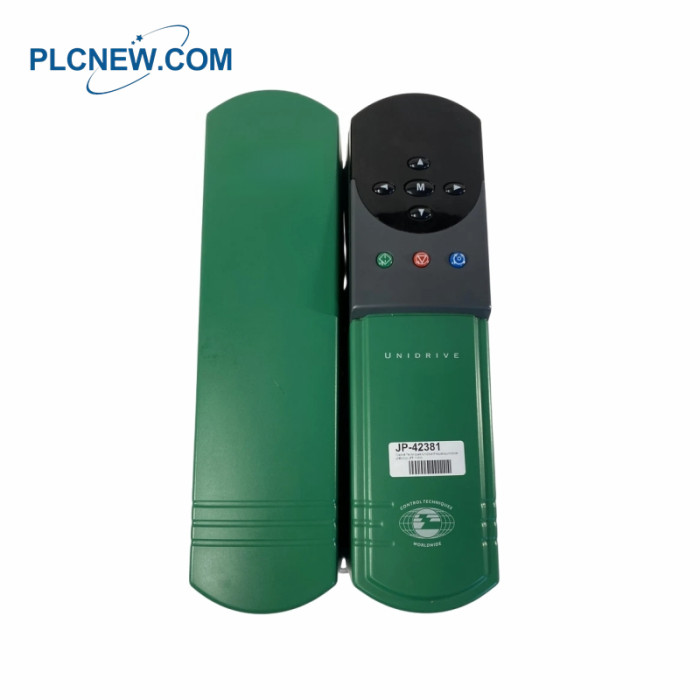

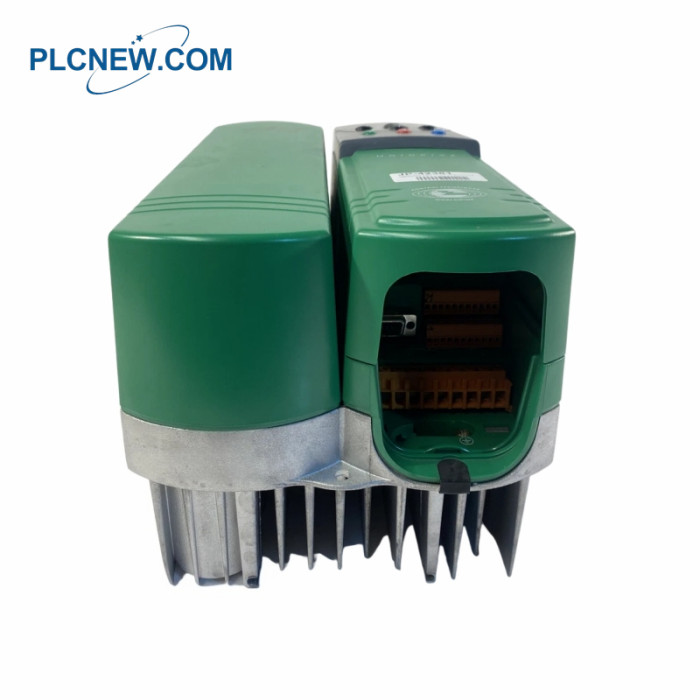

Control Techniques UNI2403 Variable speed AC drive

Control Techniques UNI2403 Variable speed AC drive

Control Techniques UNI2403 Specification

Manufacturer: Control Techniques
Series: Unidrive
Part Number: UNI2403
Product Description: Universal Variable Speed AC Drive
Weight: 8 kg (17 lbs.)
Operating Modes: Open Loop V/f, Open Loop Vector, Closed Loop Vector, Servo, Regen
Ambient Operating Temperature: 0 to 50 °C
Minimum Temperature at Power-Up: -10 °C
Humidity: 95% RH (no condensation)
Ambient Storage Temperature: -40 to 50 °C
Model Size Class: Size 2
Voltage Class: 400V
Voltage Range: 380 to 480 VAC ±10%
Nominal Power Rating: 11 kW (15 HP)
Output Current: 25A
Typical Input Current: 21A

Control Techniques UNI2403 Description

The Control Techniques UNI2403 is classified as a universal variable speed AC drive, engineered to facilitate a

range of operational modes. It supports open loop V/f control, open loop vector, closed loop vector, servo, and

regeneration functionality, granting flexibility in various applications. With a power rating of 11 kW and corresponding

15 HP output, it is suitable for diverse industrial tasks.
Weighing in at 8 kg (17 lbs.), this unit can operate efficiently within the ambient temperature range of 0 to 50 °C,

ensuring stability under normal conditions. However, it is capable of powering up even at minimum temperatures of

-10 °C, allowing for versatility in colder environments. The absolute humidity tolerance is rated at 95% relative

humidity, avoiding condensation that could impact performance.
For storage, the ambient temperature can safely range from -40 to 50 °C, extending potential application scenarios.

Designed as a size 2 model, the UNI2403 operates on a voltage class of 400V with a permissible voltage fluctuation

of ±10% within the 380 to 480 VAC range. The typical input current Figure for this drive is 21A while the output

current can reach up to 25A, ensuring ample power delivery for various motor-driven applications.

Frequently Asked Questions

1.What is the power rating of the UNI2403?
The UNI2403's nominal power rating is 11 kW (15 hp), and its instantaneous power rating is 20 kW.
2.What operating modes does the UNI2403 support?
The Control Techniques UNI2403 supports Open Loop, Closed Loop Vector, Servo, and Regen modes.
3.What is the UNI2403's maximum continuous output current?
The UNI2403's maximum continuous output current is 25 amps at 40°C and 3 kHz switching frequency.
4.Can the UNI2403 drive operate in high ambient temperatures?
The UNI2403 can operate at up to 50°C with adjusted output current ratings.
