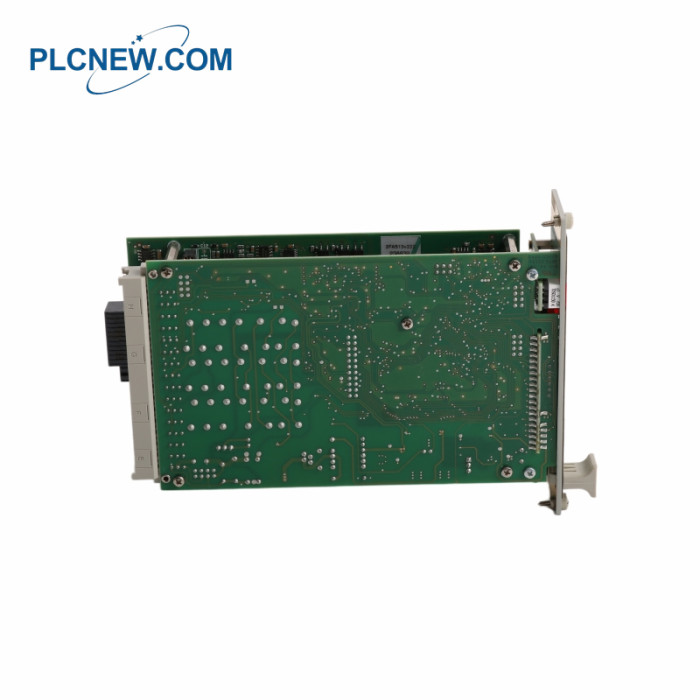

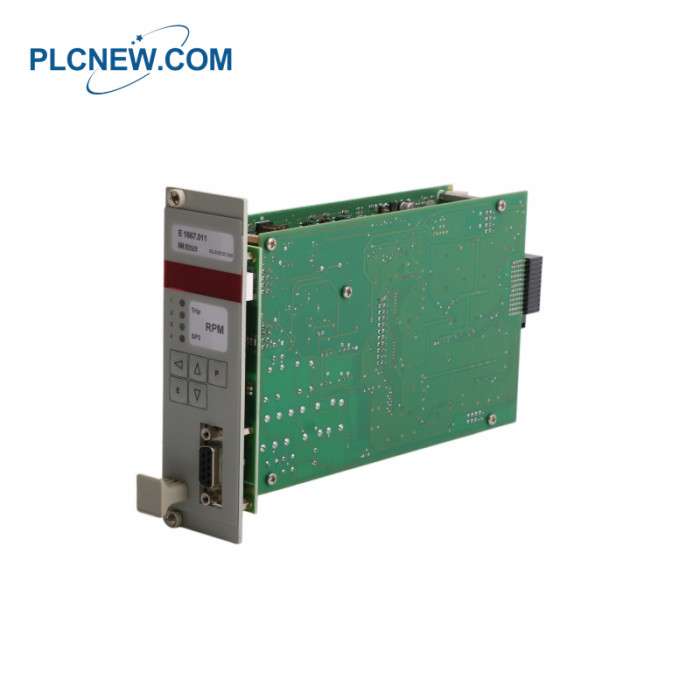

BRAUN E1667.011 Protection Monitoring Module
Specifications
Product Model
E1667.011
Product Parameters
Protection Monitoring Module
Operating Temperature
-20°C to +70°C (-4°F to +158°F)
Storage Temperature
-40°C to +85°C (-40°F to +185°F)
Humidity
≤95% RH (non-condensing)
Relay Outputs
2× SPDT relays (5 A, 250 V AC) for alarms/trip signals
Speed Range
0–20,000 RPM
Frequency Input
0.1 Hz to 10 kHz
Sensor Excitation
8–24 V DC for powered probes
Analog Output
4–20 mA or 0–10 V
Voltage
24 V DC (±10%) or 100–240 V AC (±15%, 50/60 Hz)
Power Consumption
≤15 W
The BRAUN E1667.011 Protection Monitoring Module is a high‑performance industrial monitoring unit designed
to provide protection and diagnostic functions for rotating machinery. It accepts frequency‑based speed inputs
from proximity or speed sensors, supplies excitation power for active probes, and provides conditioned analog
outputs suitable for integration with control systems or data acquisition equipment.
Product Applications
Steam turbine generator set: Used in thermal power plants and nuclear power plants for monitoring the rotational
speed of steam turbines and providing overspeed protection to prevent runaway accidents.
Hydro turbine unit: Used in hydropower stations for measuring the speed of hydro turbines and monitoring.
Fans and pumps: Auxiliary systems of large power plants.
Electric motors and compressors: Used in large drive motors and gas compressors in process industries such as
petrochemicals and chemicals to monitor operating conditions.
Mechanical manufacturing: Used for speed control in industrial machinery.
Aerospace: Applied to measurement requirements in harsh environments.
Railway and road transportation: Used for braking and traction system monitoring in rail transit vehicles.
Steel mills: Applied to rotating equipment such as rolling mills and continuous casting machines in steel mills.
