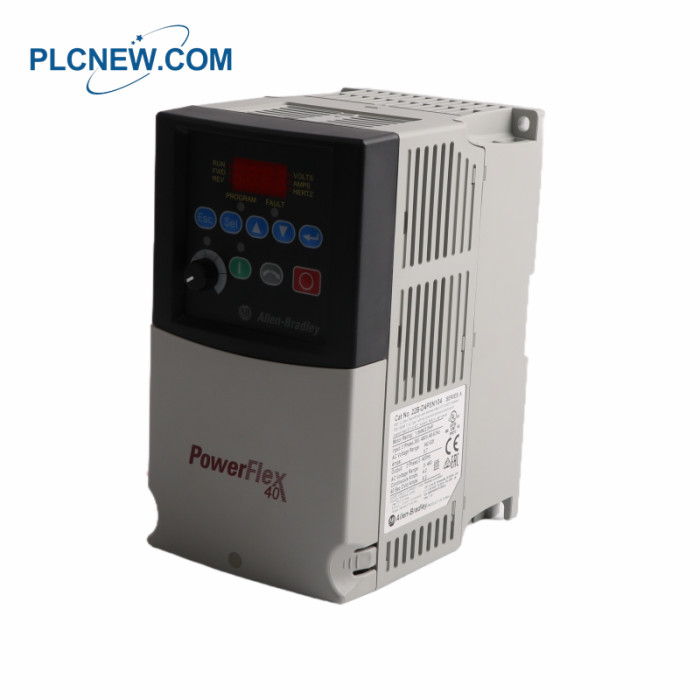

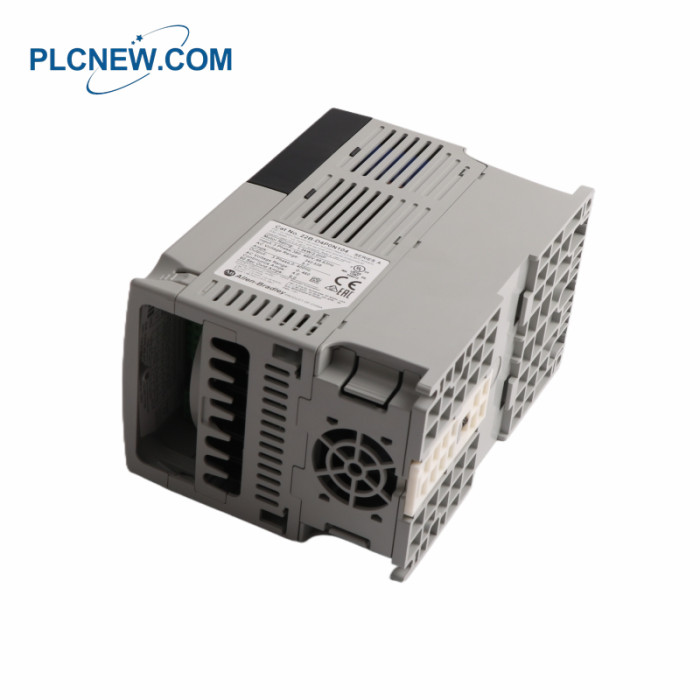

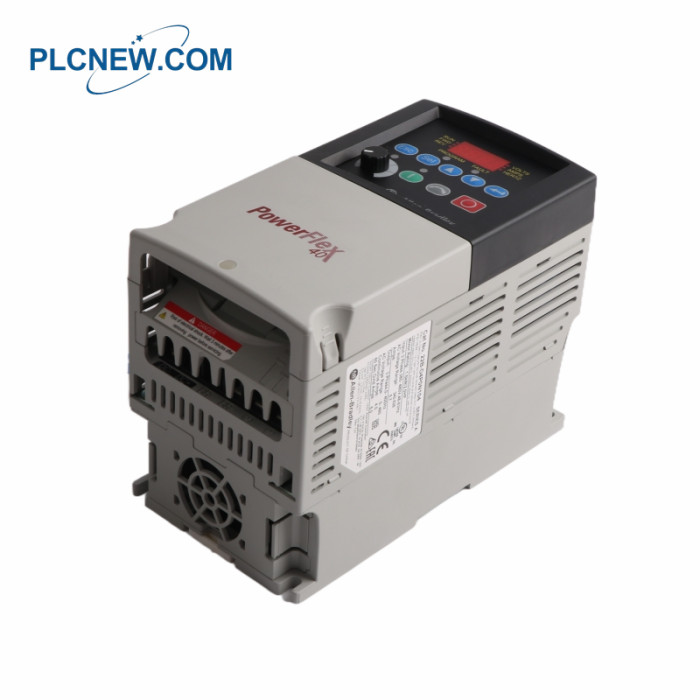

22B-D4P0N104 AC Drive
Product Details
roduct Line: PowerFlex 40
Part Number / Catalog No.: 22B-D4P0N104
Product Type: AC Drive
Installation: Panel Mount
Enclosure Rating: IP20 / NEMA UL Type Open
Input Voltage: 380–480 VAC
Input Phase: 3-Phase
Rated Output Current: 4.0 A
Rated Power: 1.5 kW (2 HP)
Input Type: Keypad
The 22B-D4P0N104 is part of the PowerFlex 40 Sensorless Vector Control capable drive. With Sensorless Vector Control,
the drive is capable of providing High-starting Torque as well as varying Torque output across the drive’s speed range.
The 22B-D4P0N104 is compatible for use in lifting, conveying and similar applications with varying loads.
The 22B-D4P0N104 is primarily used to control and modulate speed of AC motors. With modulating speed, the
connected motor may be used in more complex control strategies that requires increased accuracy. Compatible motor
rating for this drive is 1.5 kW (2.0 HP) motor.
The 22B-D4P0N104 is powered by an input voltage supply of 342-528VAC, 3-Phase and input current of 5.7 Amperes.
The 22B-D4P0N104 delivers a continuous output voltage of 0-460VAC, output current of 4.0 Amperes, output frequency
range of 0-400 Hz. It has an enclosure rating of IP20 / NEMA UL Type Open with top cover removed and IP30 / NEMA
UL Type 1 with cover installed along an optional conduit kit.
