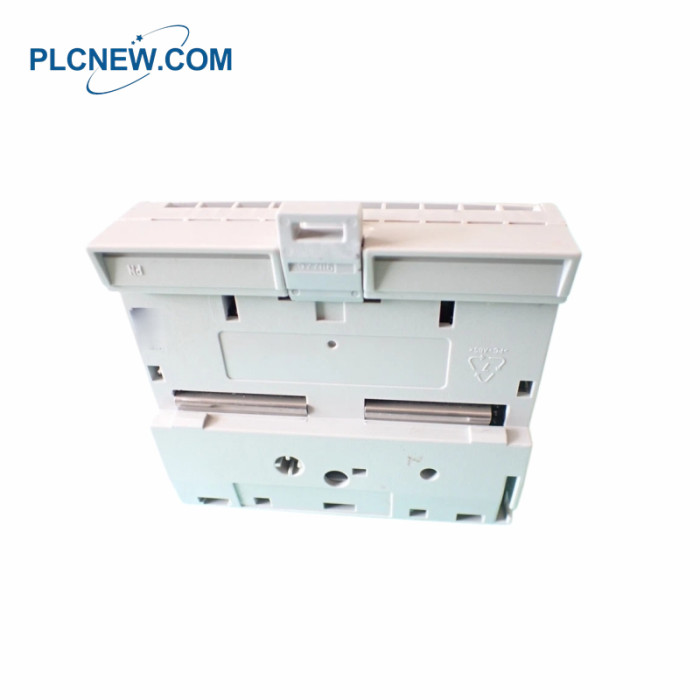

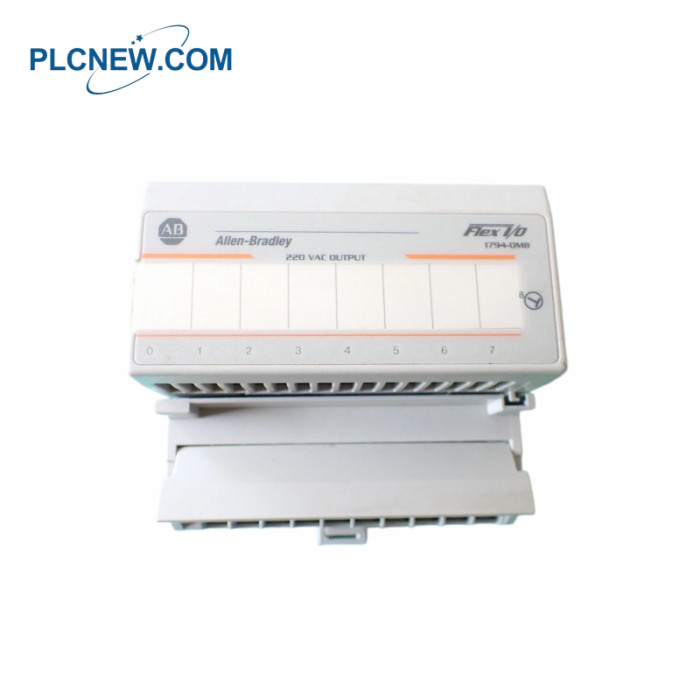

1794-OM8 Flex I/O Digital Output Module
Specifications
Product Type
Flex I/O Digital Output Module
Product Line
Flex I/O 1794
Part Number
1794-OM8
Weight
1.88 lbs (0.85 kg)
Outputs
8 Non-isolated
Nominal Output Voltage
240 V AC
Output Current Rating
4.0 A
Max. On-state Current
500 mA per output
Max. On-state Voltage Drop
1.5 V AC @ 0.5 A
Max. Off-state Leakage Current
2.5 mA
Continuous Isolation Voltage
250 V
Flexbus Current
60 mA @ 5 V DC
Power Dissipation
5 W @ 0.5 A (max)
Thermal Dissipation
17.1 BTU/hr @ 0.5 A (max)
The 1794-OM8 is a 1794 FLEX Digital AC Output Module. It is fitted inside the terminal bus, making a connection
with the field devices and the I/O bus. Modules can be inserted or removed under power since the I/O module
does not have any direct wiring. It in turn saves time and removes system restarting inefficiency. The 1794-OM8
module has 8 outputs. It has 220V AC nominal On-State output voltage 159 – 264V AC On-State output voltage
range 500mA maximum and 5mA minimum at 55 °C current per output and 4A (8 outputs at 500 mA) maximum
current per module. It has a maximum power dissipation of 5W at 0.5A. Terminal Base units compatible with it are
the 1794-TBNF and the 1794-TBN. It is installed using a DIN rail by snapping it onto the DIN rail. It has various
communication options such as ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O. The 1794-OM8
module has 16 yellow LED status indicators for each channel indicating the corresponding input device and output
signal. It also has XT versions of standard modules for operating in extreme environments, which reduces panel
and maintenance costs. It has a 0 - 55 °C (32 - 131 °F) operating temperature and a 5 - 95% noncondensing
relative humidity.
Product Applications
Energy and power control: Used for discrete signal output in power systems, such as controlling small AC
contactors, status indicator lights, or alarms.
Metallurgy and heavy industry: In iron-making blast furnace systems or large-scale steel rolling equipment, for
the logical control of actuators.
Chemistry and salt chemical industry: Adapted to complex industrial environments, especially in factories where
distributed I/O is required to reduce long-distance wiring at the site.
Glass production and processing: Precisely controlling various AC actuating elements on production lines.
