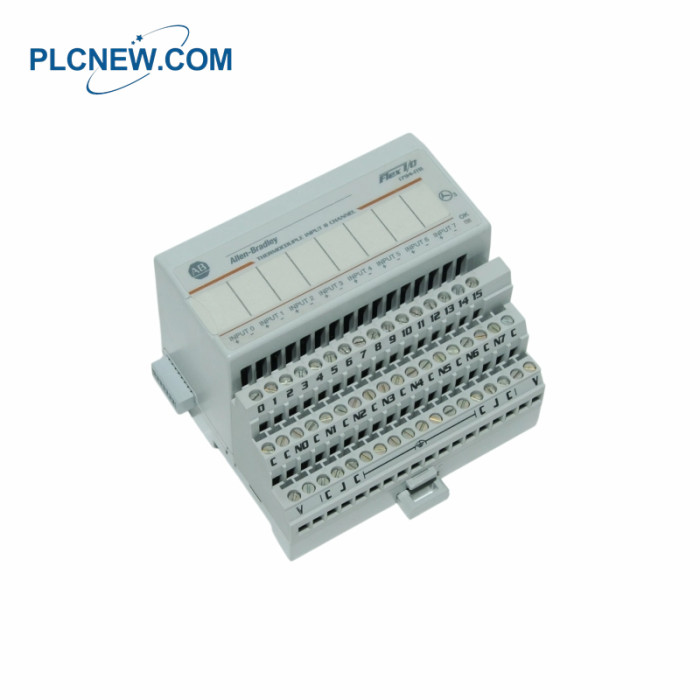

1794-IT8 Flex I/O analog input module
Specifications
Product Line
Flex I/O 1794
Part Number
1794-IT8
Weight
0.25 lbs (0.11 kg)
Power Dissipation
3W maximum @ 31.2V
Resolution
16 bits (2.384 microvolts typical)
Product Family
Flex I/O Modules
No. of Inputs
8
Sensors supported
J, K, E, R, N, S, B, C, T and L
millivolt signal
+/- 76.5mV
Data Format
16-bit 2’s complement or offset binary (unipolar)
Keyswitch Position
3
Inputs
8 Channels
Nominal Input Ranges
-76.5 to 76.5 mV
Isolation Voltage
850 Volts DC
Normal Mode Noise Rejection
-60dB at 60 Hertz
Channel Bandwidth
0 to 2.62 Hertz
Normal Mode System Throughput
325 milliseconds
Flexbus Current
20 mA
Thermal Dissipation
10.2 BTU/hour at 31.2 Volts DC maximum
The 1794-IT8 is Flex I/O analog input module. Specifically, this is a Thermocouple and millivolt input module.
It comes with Eight (8) analog input channels, compatible for direct interfacing with Thermocouple sensors such as
J, K, E, R, N, S, B, C, T and L and millivolt range of +/-76.5m.
Before inserting the 1794-IT8 module on the terminal base, the users should rotate the key switch on the base to
Position 3 because this position is required for the safe mounting and operation of the thermocouple/mV module.
The 1794-IT8 FLEX I/O thermocouple module communicates with PLCs through the block-transferring option. Block
transfer programming relies on input signal data words moving between the thermocouple module’s memory and a
designated area in the PLC’s data table. Block transfer programming also supports the moving of the configuration
words from the PLC data table to the thermocouple module. The 1794-IT8 module comes with 2 cold junction
compensators that are engineered to be mounted in designated positions on the terminal base unit.
Product Applications
Steel and Metallurgy: Temperature monitoring for heating furnaces, continuous casting machines, and heat treatment
furnaces in steel production lines. Due to its ability to precisely measure thermocouple signals, it is highly suitable for
high-temperature environments.
Cement and Mining: Cement kilns, material drying equipment, and mineral processing systems require a large number
of thermocouple temperature measurements. The 1794-IT8 module can provide reliable data collection in harsh
conditions.
Food and Beverage Processing: Precise temperature control for baking, sterilization, heating, etc.
Chemical and Fiber Textile Industry: Stretching and heat setting equipment on textile production lines require a
constant temperature environment.
Automotive and Tire Industry: Temperature monitoring for vulcanization machines, painting ovens, etc. equipment.
