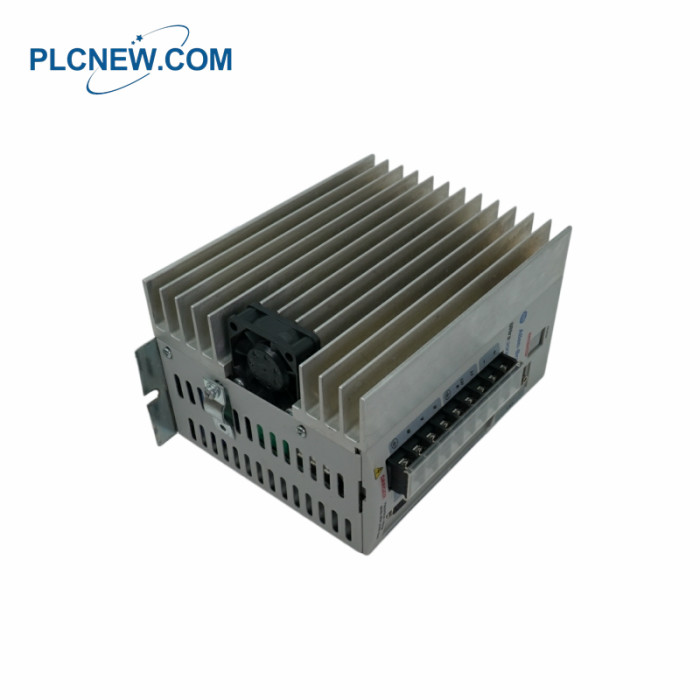

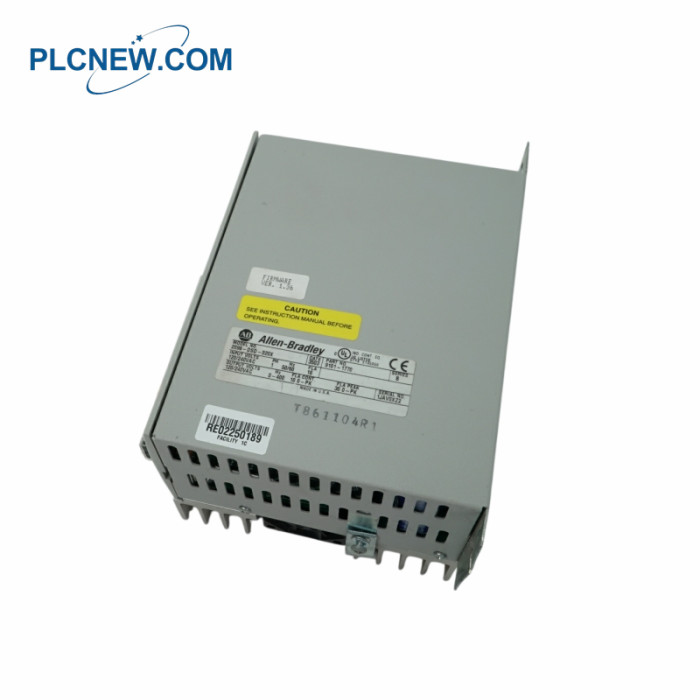

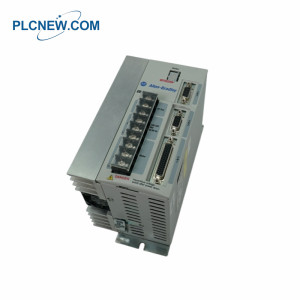

2098-DSD-020X Digital Servo Drive
Specifications
Part Number
2098-DSD-020X
Bus Overvoltage
400 VDC
Bus Capacitance
1880 μF
Input Voltage (AC)
120 - 240 Voltage rms, 1-Phase
Input Frequency (AC)
47-63 Hz
Output Current (Continuous)
30 Amps (0-peak)
Output Current (Intermittent)
10 Amps (0-peak)
Continuous output power @ 230 VAC
1.0 kW
Continuous output power @ 480 VAC
2.0 kW
Output voltage
120 / 240 VAC rms, 3-Phase
Output current, peak
30 Amperes
Output frequency
0-400 Hz
The 2098-DSD-020X Ultra 3000 Digital Servo Drive module is a single-phase AC drive used for control of
most industrial servo motors. This module comes with DeviceNet and Indexing. The 2098-DSD-020X has an
operating shock of 15g (3 pulses, 11 ms). The non-operating shock of this module is 30 g (3 pulses, 11 ms).
This module is designed to maintain optimum functionality at 2.5 g vibration. This module can operate at altitudes
of up to 1000 m (3280 ft) without derating. The operating temperature of this module is 0 -55 °C (32-131 °F).
The storage temperature of this module is -40-70 °C (-40-158 °F). The relative humidity of this module is from
5-95% without condensation. The 2098-DSD-020X weighs 2.1Kg (4.6 lbs). This module has 7.8 x 5.68 x 3.89 in
(198.12 x 144.27 x 98.1 mm) dimensions. The 2098-DSD-020X has an input voltage (AC) of 100-240V AC root
means square (single-phase). The input frequency (AC) of this module is 47-63 Hertz. The nominal input current
(AC) of this module is 18 A root means square. It also has a healthy 10 A (0-peak) continuous output current
and 30 A (0-peak) intermittent output current.
Product Applications
Consumer goods and packaging industry: Used for high-speed and high-precision packaging machinery
and molding equipment.
Food and beverage processing: Material transportation and sorting on assembly lines.
Automotive manufacturing: Robot control and motion execution mechanisms for automotive component
processing and assembly lines.
Life sciences/pharmaceuticals: High-precision pharmaceutical equipment, packaging equipment, etc.
