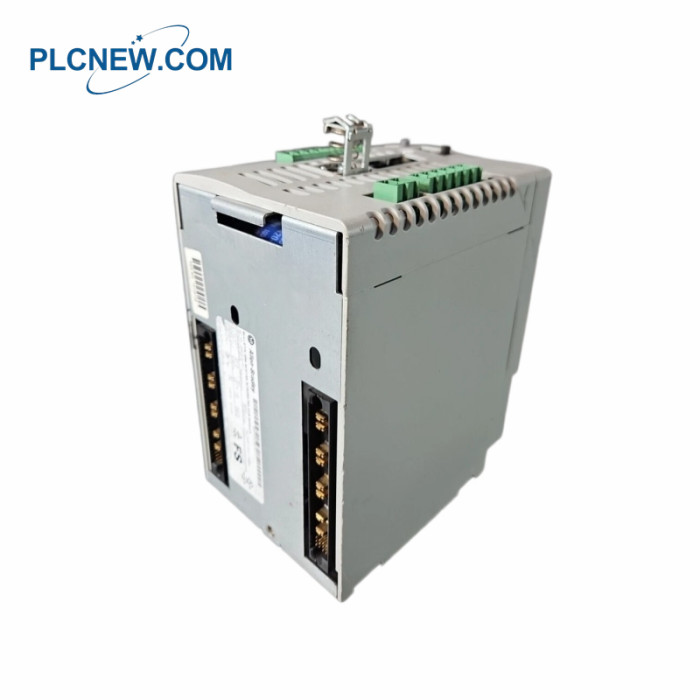

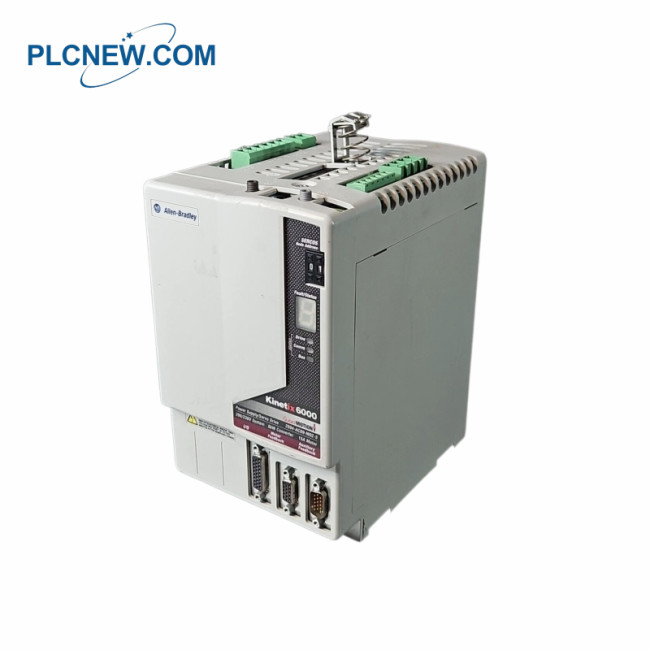

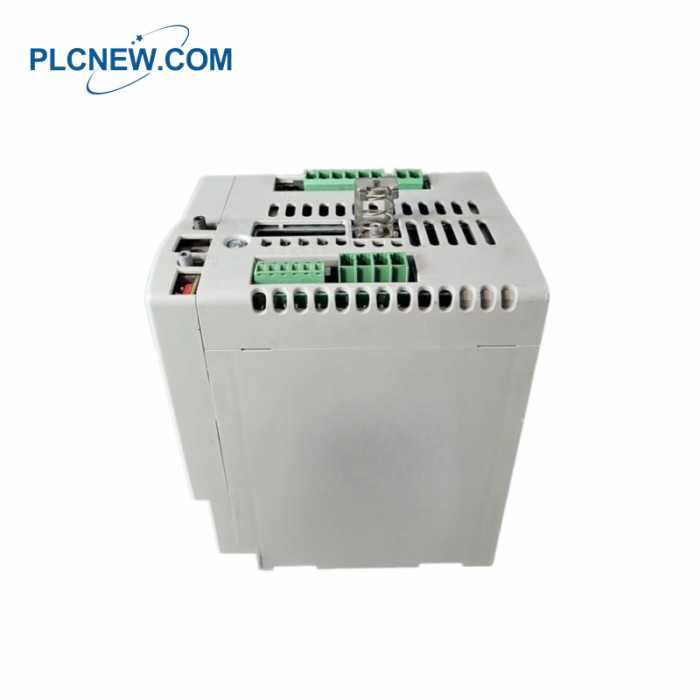

2094-AC09-M02-S Integrated Axis Module
Specifications
Part Number
2094-AC09-M02-S
Product Description
Integrated Axis Module
AC Input Voltage
195 to 264 Volts RMS
AC Input Frequency
47 to 63 Hertz
AC Input Voltage Range
195…264Vrms, 3-Phase
AC Input Current (nom rms)
19 Amperes
AC Input Voltage, Nominal
230 VAC
AC Input Current (Max Inrush 0-peak)
37 Amperes
DC Input Voltage
275-375 VDC
DC Input Voltage (Common Bus Follower)
275 to 375 Volts
Continuous Power Output to Bus
6.0 kW
DC Input Current (Common Bus Follower)
19 Amperes
Continuous Output Current to Bus
19 A
Internal Shunt (Continuous Power)
50 Watts
Peak Power Output
12.0 kW
Internal Shunt (Peak Power)
8200 Watts
Bus Overvoltage
415V DC
Internal Shunt Resistor
20 Ohms
Bus Undervoltage
138 V DC
The 2094-AC09-M02-S is an Integrated Axis Module (IAM) from the product family. This module is an essential
part of implementing motion control as it hosts the major field connections such as Contactor enable (CED) connector,
DC bus/AC input power (IPD) connector, Control power (CPD) connector, Motor power (MP) connector, Motor/resistive
brake (BC) connector, I/O (IOD) connector. Aside from the variety of connectors available to the module’s front panel,
the 2094-AC09-M02-S SERCOS and DPI connectivity is mounted near the bottom of the module, covered by a
removable access door. SERCOS connections available to this module are Sercos transmit (Tx) connector and Sercos
receive (Rx) connector as well as a single DPI connector for connection of optional peripherals and modules.
The 2094-AC09-M02-S is a 200 to 230 Volt AC Bulletin 2094 Integrated Axis Module with a 6 kW converter, three-phase
input power, and 15 A inverter. It has a frequency of 47 to 63 Hertz, an AC input voltage of 195 to 264 Volts RMS,
20 milliseconds line loss ride through, and a 325 Volt DC nominal bus output voltage.
Product Applications
Automotive manufacturing industry: Used in automotive assembly lines, robot welding, body transportation and
component processing units.
Electronic and semiconductor manufacturing: Used in wafer processing equipment, high-speed surface mounters,
packaging equipment and other micro-level precision control.
Life sciences and medical devices: Used in pharmaceutical equipment, packaging assembly lines, medical device
assembly.
Packaging and consumer goods industry: High-speed packaging machines, labeling machines, palletizing
robots, etc.
