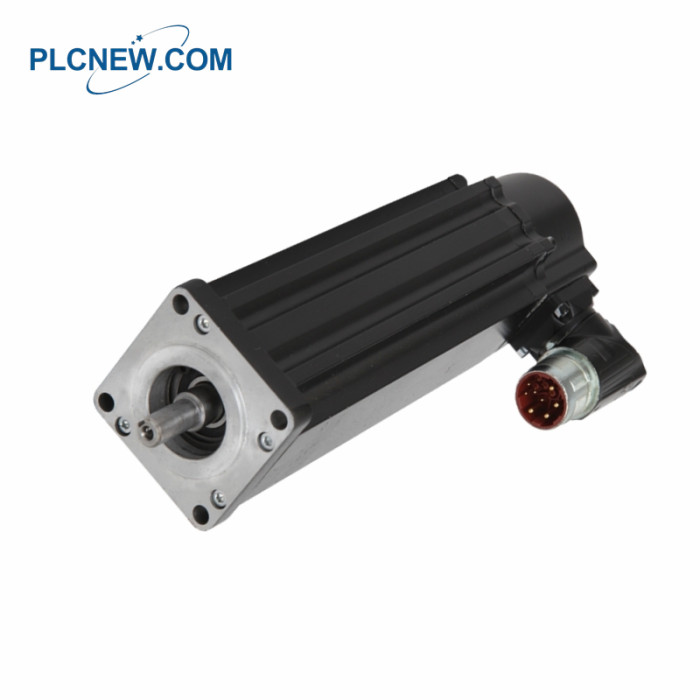

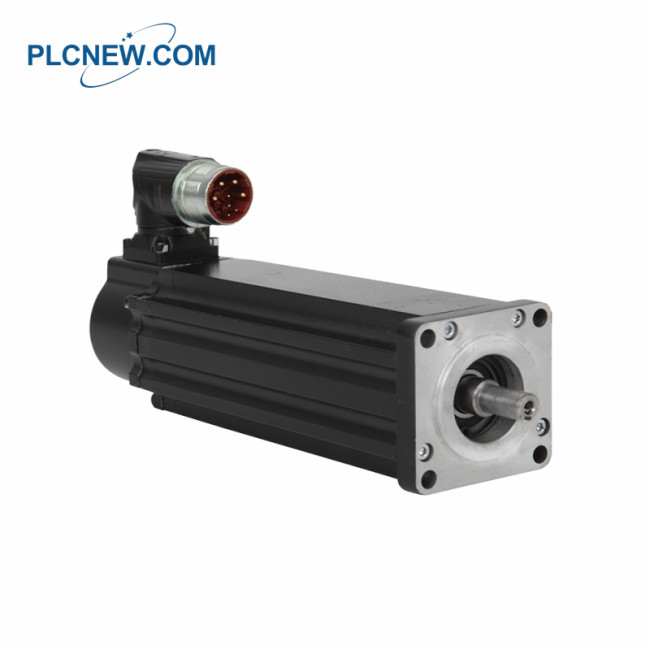

VPL-B1001M-CK12AA Low-Inertia Servo Motor
Product Details
Part Number/Catalog No.: VPL-B1001M-CK12AA
Product Type: Low-Inertia Servo Motor
Voltage: 400 Volts AC
Frame Size: 100 millimeter
Rated Speed: 6000 RPM
Magnet Stacks: 1
Feedback: 18-bit absolute single-turn digital encoder (Hiperface DSL protocol)
Shaft: Smooth
Connector: Single SpeedTec DIN connector, right angle, 325° rotatable
Mounting Flange: IEC metric, free mounting holes (type FF)
Factory Options: Standard
The VPL-B1001M-CK12AA is a low-inertia servo motor manufactured . This motor is part of the line of products.
The width of the front side of the motor is 26.6 millimeters (1.05 Inches), while its height is 131.2 millimeters
(5.17 Inches). Its side view shows that it is 169.8 millimeters (6.68 Inches) long. The VPL-B1001M-CK12AA has
a frame size of 100 millimeters, and it contains an IEC metric Mounting Flange which has free mounting holes.
Furthermore, the mounting pilot this motor is equipped with helps the users to properly align the motor on the
machine. This high-performance VPL-B1001M-CK12AA motor is a perfect choice for maximum efficiency applications
that require speedy deceleration and acceleration. With a voltage of 400 Volts, the speed rating of the motor amounts
to 6000 revolutions per minute. This permanent magnet rotary motor comes with a single magnet stack and a smooth
shaft. When it comes to feedback, this motor features a Hiperface DSL protocol, which is an 18-bit single-turn digital encoder.
