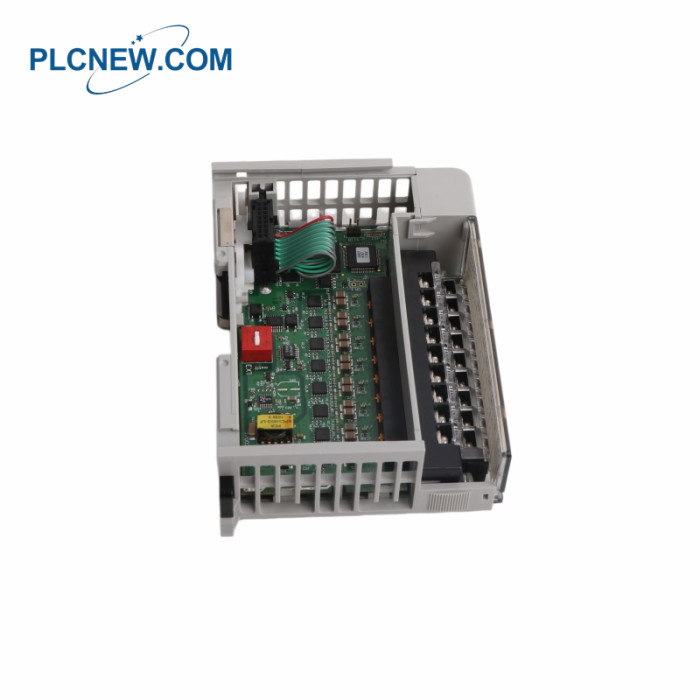

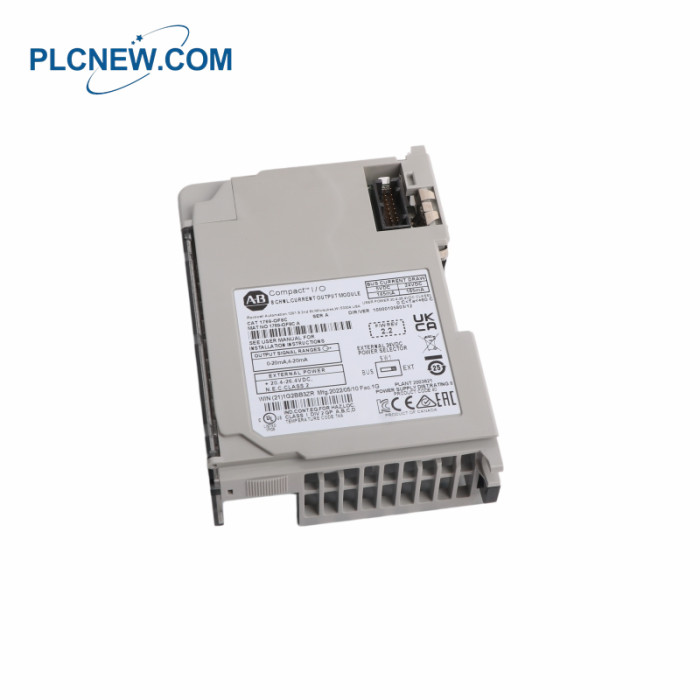

1769-OF8C Output Module
Specifications
Part Number
1769-OF8C
Weight
1.00 lbs (0.45 kg)
Number of Outputs
8 Outputs
Output Type
Single-Ended Output
Output Current Ranges
0 to 20 mA / 4 to 20 mA
Bus Current Draw (5V DC)
145 mA
Bus Current Draw (24V DC)
185 mA
Max. Heat Dissipation
2.69 Watts
Max. Conversion Rate (All Channels)
5 ms
Open-Circuit Protection
Supported
Short-Circuit Current Protection
Supported
Max. Short-Circuit Protection
21 mA
Output Overvoltage Protection
Supported
Slot Width
1 Slot
Mounting Options
DIN Rail / Panel Mount
The model 1769-OF8C functions as an output module that accommodates a total of eight outputs. Each
output is configured for single-ended operation and can handle current ranges of either 0 to 20 mA or 4 to
20 mA, providing flexibility for various applications.
Power consumption is efficient, with a bus current draw of 145 mA at 5V DC and 185 mA at 24V DC. Thermal
management is accounted for, with a maximum heat dissipation of 2.69 watts, ensuring that the module operates
within safe temperature limits. It is equipped with features for open-circuit protection and supports short-circuit
conditions, upholding reliability in demanding environments. The maximum short-circuit protection is rated at 21 mA.
Product Applications
Petroleum and Chemicals: Used to control the rotational speed of regulating valves, positioners, and pumps during
long-distance transmission to maintain stable pressure and flow during the production process.
Food and Beverage: Precisely adjust the mixing ratio, heating temperature, or conveyor belt speed in production lines.
Energy Management and Power: Monitor and regulate the output parameters of power generation equipment, or
control the dosage of dosing pumps in water treatment systems.
Advanced Manufacturing: Cooperate with servo drives (such as the Ultra 3000 series) to achieve complex motion
control and production line .
