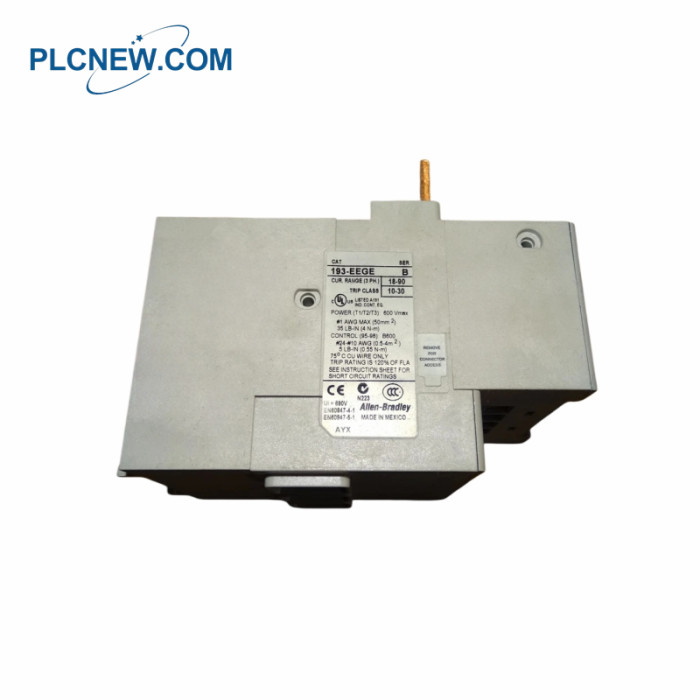

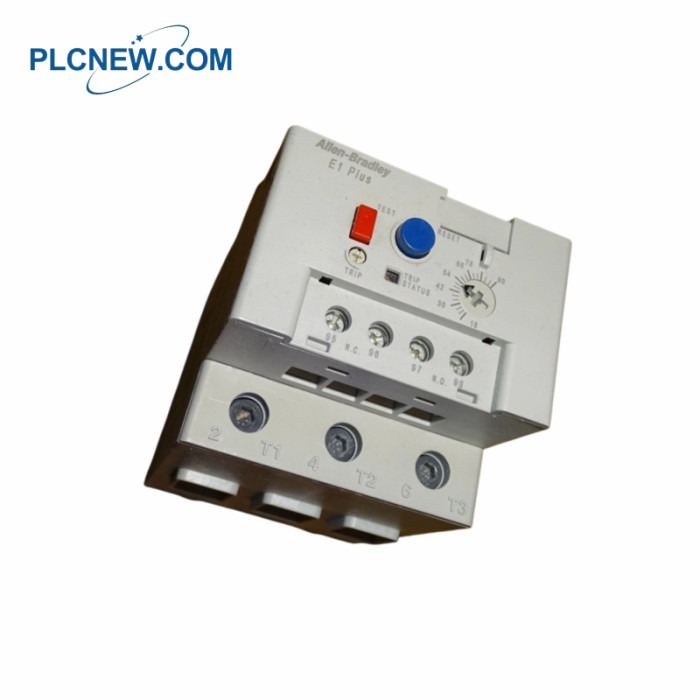

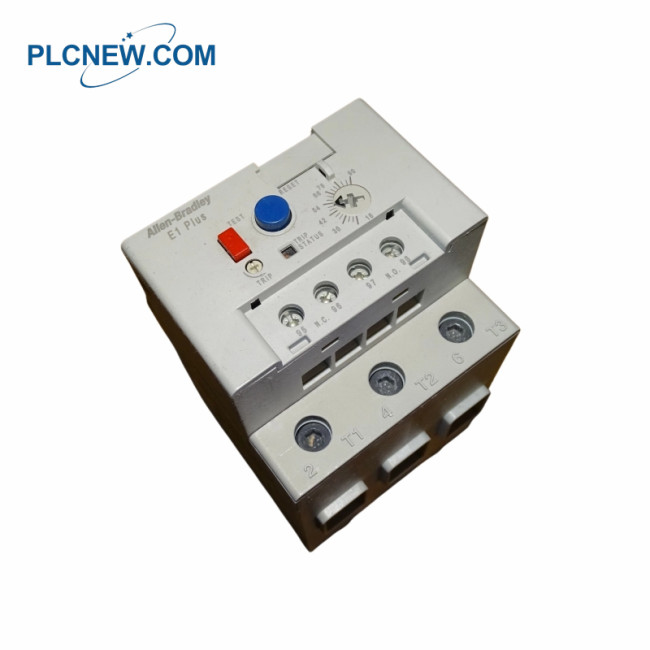

193-EEGE Solid State Overload Relay
Specifications
|
Part Number |
193-EEGE |
|
Phase |
3-Phase |
|
Current Range |
18 ~ 90 A |
|
Min. Power Rating @ 415 V |
11 kW |
|
Max. Power Rating @ 415 V |
45 kW |
|
Adjustment Ratio |
5:01 |
|
Min. Motor FLC |
18 A |
|
Max. Motor FLC |
90 A |
|
Operating Voltage |
690 V AC |
The 193-EEGE relay is an E1 Plus enhanced electronic overload relay as part of the electronic overload product line.
This 3-phase unit has a current range of 18 to 90 Amps that is intended for use with the Bulletin 100 IEC contactor
sizes C60 to C97. Some of the specifications of the 193-EEGE electronic overload relay include an adjustable trip class
as well as optional side mount modules and automatic or manual reset features. It has an approximate kilowatts rating
of 11 to 45 kilowatts with a minimum kilowatt rating of 11 kilowatts at 415 Volts and a maximum of 45 kilowatts at 415
Volts. The module features an adjustment ratio of 5:1, a minimum motor FLC rating of 18 Amps, and a maximum motor
FLC rating of 90 Amps. This unit has an adjustable trip class of 10, 15, 20, or 30 Amps. It comes with an IP 20 enclosure
rating and a rated operating voltage of 690 Volts AC.
Product Applications
Heavy Industry and Mining: Used for controlling and protecting conveyor belts, crushers, pumps and fans, especially
those operating in harsh environments and requiring high reliability of current/voltage monitoring for motors.
Water Treatment and Water Supply Systems: In water pumping stations and sewage treatment plants, high-precision
sensors are used to protect critical motors from current overload and phase faults.
Oil and Gas (Petrochemicals): As part of the motor controller, used to achieve operation of critical tasks in
potentially hazardous environments while monitoring grounding faults.
Power Management and Distribution: Applied in low-voltage control centers of smart grids, providing advanced digital
diagnosis and protection for motor loads, directly replacing 193-ECPM2 series
