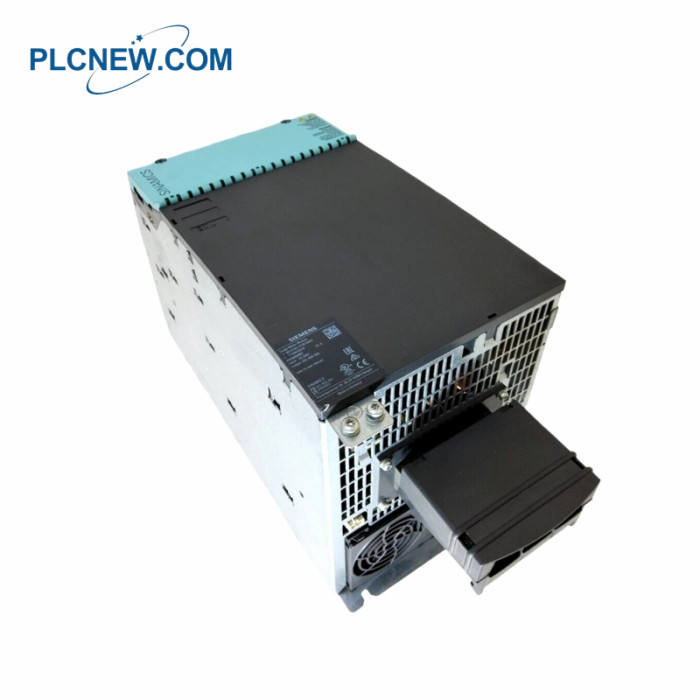

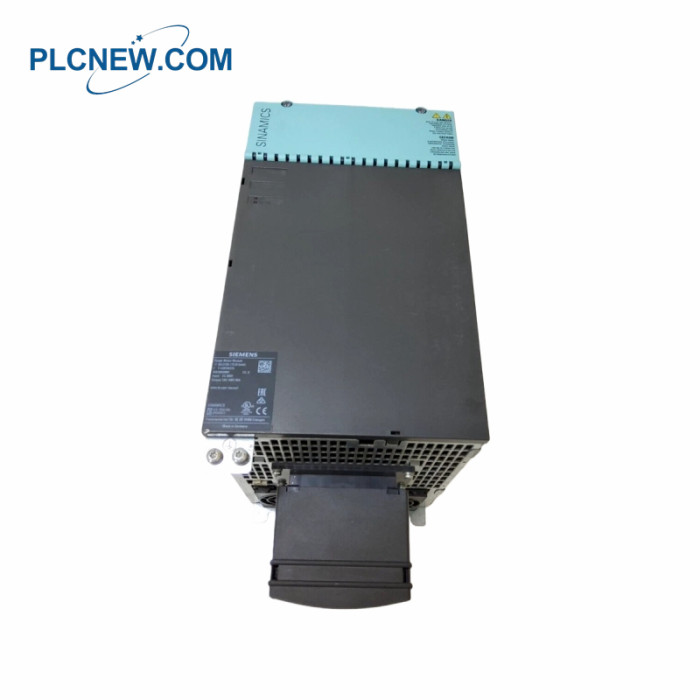

SIEMENS 6SL3120-1TE28-5AA3 Single motor module
Product parameters
Manufacturer: Siemens
Part Number: 6SL3120‑1TE28‑5AA3
Weight: 20.0 lbs (9.07 kg)
Module Type: Single Motor Module
Output Voltage Range: 0 to 0.717 × DC-link voltage
DC-link Voltage Range: 510–720 V DC
DC-link Capacitance: 1880 µF
Control Electronics Supply Voltage: 24 V DC (20.4–28.8 V DC)
Control Electronics Power Consumption: 1.5 A
Power Rating (Based on Nominal Current): 46 kW
Cooling Mechanism: Internal fan-based cooling
Airflow Requirement for Cooling: 160 m³/h
Energy Loss During Operation: 786 W
Rated Current (In): 85 A
Base-Load Current (IH): 68 A
Intermittent Duty Current (IS6) (40%): 110 A
Peak Current (Imax): 141 A
The Siemens 6SL3120-1TE28-5AA3 is categorized as a single motor module within the SINAMICS series. It
can supply an output voltage ranging from 0 to 0.717 times the specified DC-link voltage. The supported DC-link
voltage spans from 510 to 720 VDC, while the associated DC-link capacitance stands at 1880 µF, ensuring stable
operation in high-demand applications.
This module operates with a control electronics supply voltage specified at 24 VDC, providing a controlled range
of 20.4 to 28.8 VDC. The control electronics consume 1.5 A. With a power rating of 46 kW, it adequately meets the
needs of various motor control applications.
The device employs an internal fan-based system for cooling, necessitating an airflow capacity of 160 m³/h to maintain
optimal temperatures. The unit is designed to minimize energy loss, featuring an operational energy loss of approximately
786 W. With a total weight of 15 kg, it is manageable for installations.
