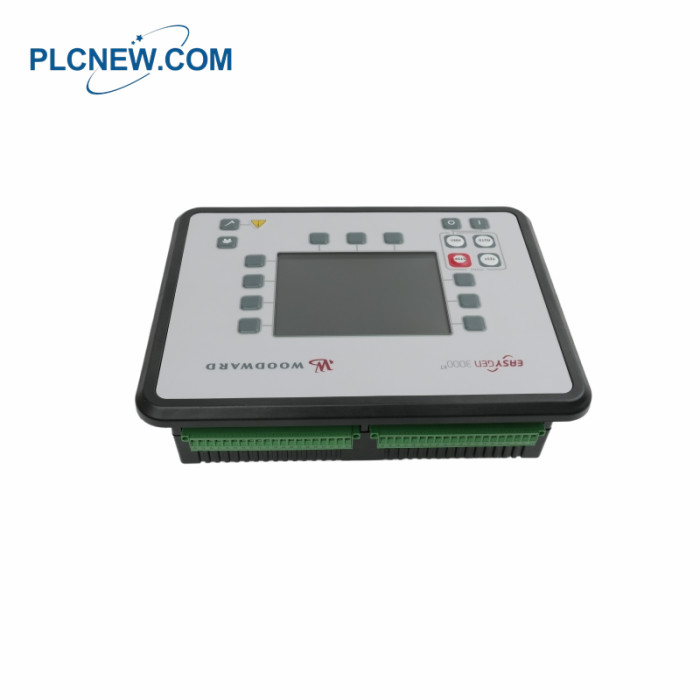

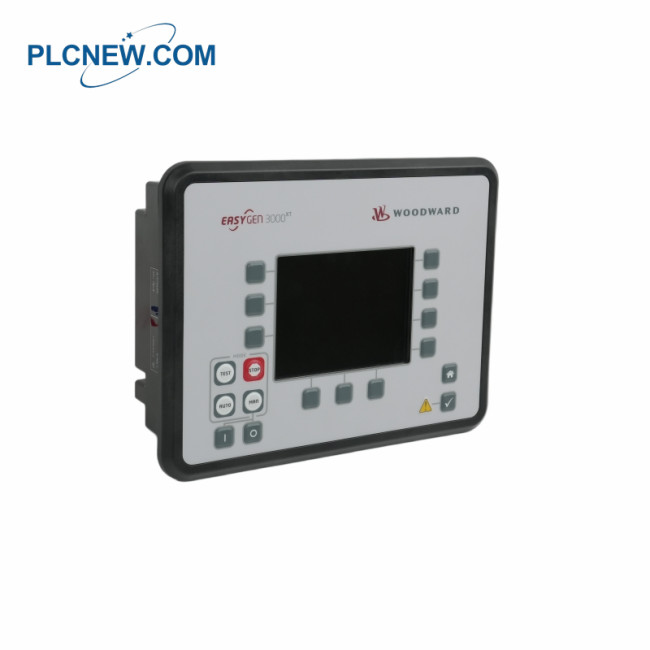

WOODWARD EASYGEN-3500XT-P1 8440-2082 Genset Controller

WOODWARD EASYGEN-3500XT-P1 8440-2082 Genset Controller

Details of the module

EASYGEN-3500XT-P1 8440-2082 is manufactured by Woodward in the company’s easYgen-3000XT series. The XT series

has a few updated features from the older 3000 series. A few of the new features include drop-in replacement,

power measurement Class 1, editable screens, multiple interface ToolKit connectivity, and more. Full details can be

found in Woodward easYgen manual 37582A
This model is a 3200XT-P1 (Package 1) version. One notable difference between the 8440-2082 and the similar

3200XT-P1-LT model is their operating temperature range. This model is rated for operating temperatures from -20

to 70 °C; the LT version is rated for -40 to 70 °C and is suitable for outdoor use. The 8440-2082 comes with a display

(3100 versions do not) and is designed for front panel mounting.

Frequently asked questions：

Q1: What is the EASYGEN-3500XT-P1 8440-2082?
A1: The EASYGEN-3500XT-P1 8440-2082 is a genset controller designed to manage and protect generator sets,

providing monitoring, control, and protection functions for AC power generation.
Q2: What is the EASYGEN-3500XT-P1 8440-2082 power supply requirement for this controller?
A2: It operates on 12/24 VDC and supports an operating voltage range of 8–40 VDC.
Q3: How does it measure current?
A3: The EASYGEN-3500XT-P1 8440-2082 controller uses 5 A CT (current transformer) inputs for accurate

current measurement.
Q4: How does it measure voltage?
A4: It can measure voltage up to 230 VAC, suitable for most generator applications.
Q5: What nominal frequency does the EASYGEN-3500XT-P1 8440-2082 controller support?
A5: The nominal frequency is configurable for 50 Hz or 60 Hz, allowing use in different regions and generator types.

Product Applications

Distributed generation and microgrids: Used to integrate small microgrids (including photovoltaic, batteries, generators,

etc.), optimizing energy distribution.
Backup and emergency power sources: Widely used in data centers, hospitals, and critical infrastructure, providing

automatic power switching (ATS) and automatic fault startup (AMF) functions.
Grid-connected operation and peak shaving: Used in industrial sites for connecting generator sets to the grid, reducing

peak electricity costs through "peak shaving and valley filling".
Complex distribution system management: Supports multiple utility power feeders, bus sectionalizing switches, and up

to 32 generator sets for parallel load sharing.
Extreme environment industrial applications: The LT version can support outdoor work environments as low as -40°C,

suitable for harsh industrial sites such as oil and gas fields and remote mining areas.
Marine and ship engineering: The specific Marine version provides the flexible control and protection required for ship

power systems.

Key Technical Features
Connectivity: Features up to 9 communication ports, including 3 Ethernet ports (supporting redundant load sharing),

3 CAN ports (CANopen and J1939), RS-485, and USB.
Interface: Equipped with a built-in color LCD display and tactile buttons for front-panel mounting and manual control.
Synchronizing: Provides "Run-up Synchronization" and "Dead Field Paralleling" to quickly bring multiple generators online.
Environmental Resilience: A low-temperature variant (-LT) is available for outdoor applications, operating down to -40°C.
Compatibility: Designed as a drop-in replacement for the previous generation easYgen-3000 series, easing system upgrades.
