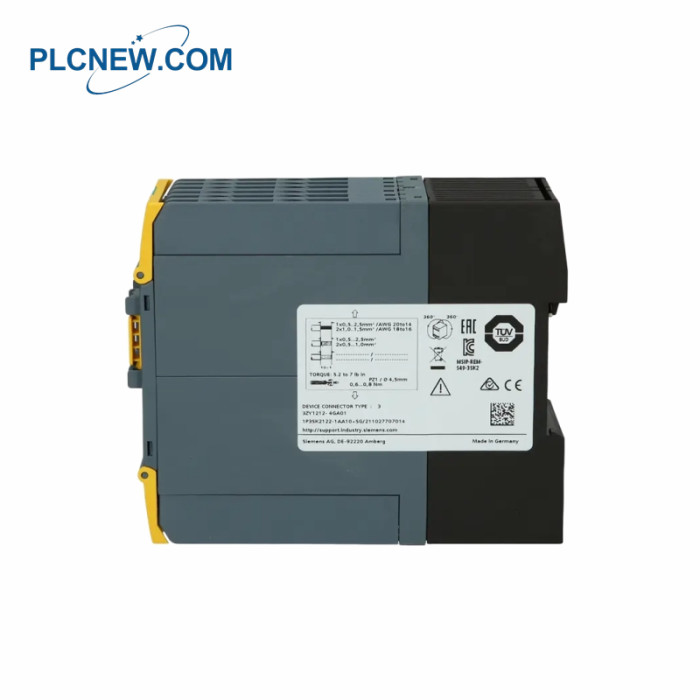

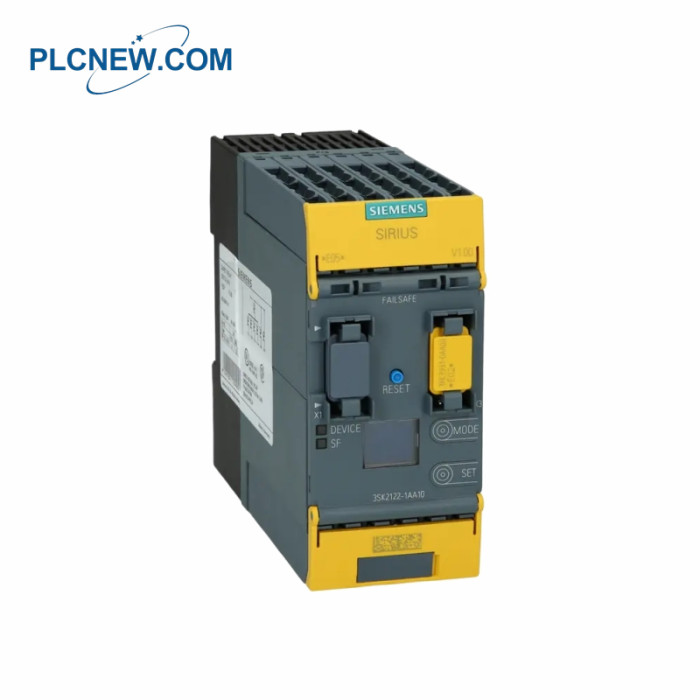

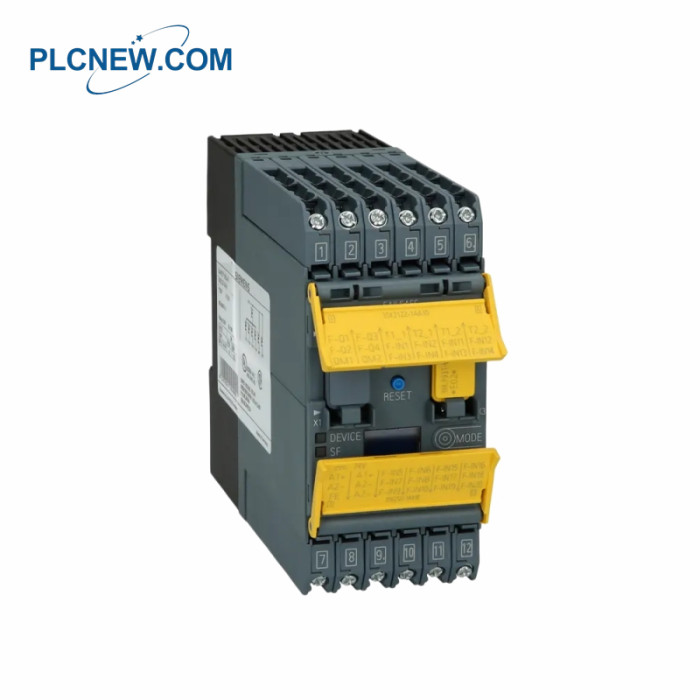

Siemens 3SK2122-1AA10 Safety relay Module
Specifications
Brand
Siemens
Model Number
3SK2122-1AA10
Product Type
Safety Relay
Mount Type
DIN Rail
Shock Resistance
15g / 11 ms
Maximum Operating Frequency
2000 1/h
Rated Operating Power
4.5 W
Rated Control Supply Voltage
24 V
Power Consumption
4.5 W
Dimensions – Length
45 mm
Dimensions – Height
100 mm
Dimensions – Width
124.5 mm
Input Delay Time
0 … 150 ms
Digital Input Type
Acc. to IEC 60947-1, Type 1
Maximum Input Recording Time (Digital Input)
60 ms
Maximum Input Delay Time (Digital Input)
150 ms
Maximum Total Current
7 A
Maximum Voltage Drop
0.5 V
The SIRIUS 3SK2122-1AA10 base device from Siemens controls the security of your system in a space-saving and
cost-effective manner and can be expanded in a modular fashion. It has 20 safe digital inputs, four safe digital
outputs and two non-safe digital outputs and meets the requirements of ISO13849-1 PL e category 4. Using the PN
interface module, which is available separately, the PROFINET IO protocol is supported. The SIRIUS 3SK2122-1AA10
base device with a supply voltage of 24 V DC is connected via screw terminals and can be mounted on a DIN 35 rail.
Product Applications
Automotive Manufacturing: Safety gate monitoring, emergency stop systems, and safety protection in multi-robot
collaborative areas on production lines.
Packaging Industry: Monitoring light curtains and emergency stop devices in large conveyor systems and
high-speed packaging machinery.
Logistics and Warehousing: Safety integration such as mail sorting centers and airport baggage handling systems.
Chemical and Heavy Industries: Environments with extremely high functional safety levels (SIL 3/PL e),
including electronics/battery production, steel and metal processing.
