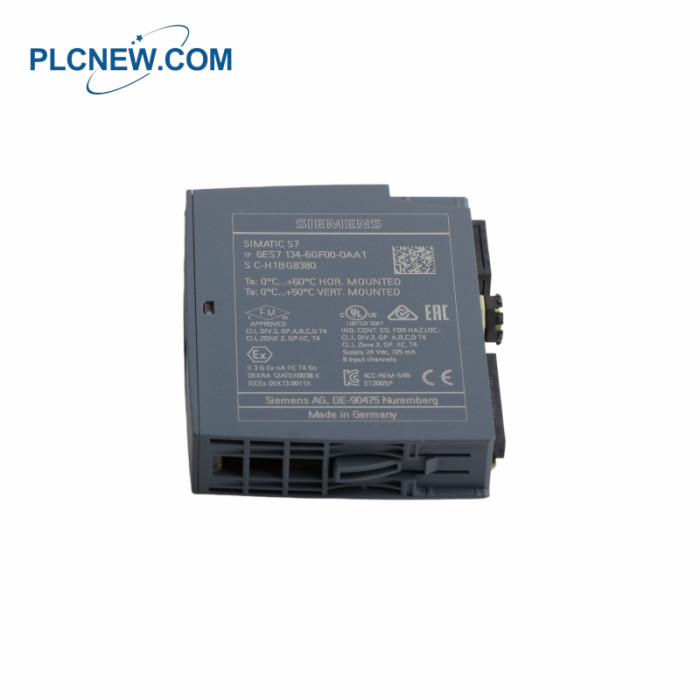

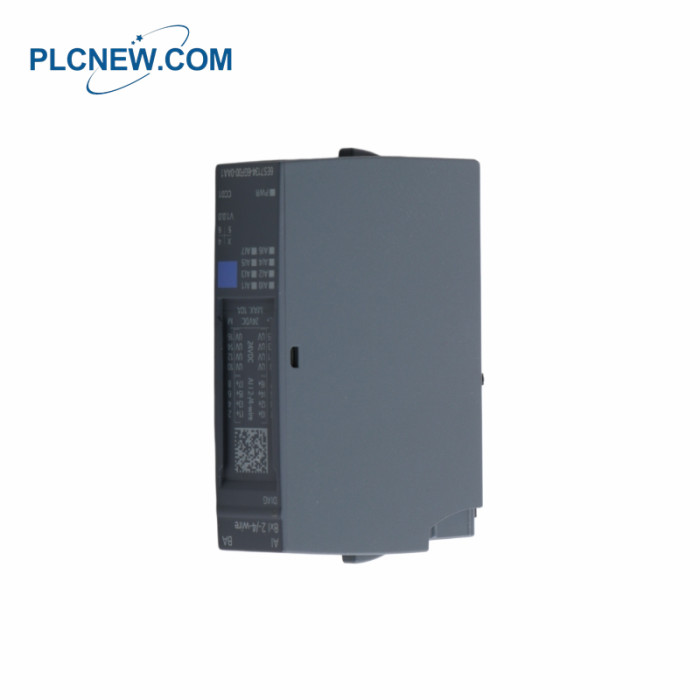

SIEMENS 6ES7134-6GF00-0AA1 Analog Input Module
Specifications
|
Model Number |
6ES7134-6GF00-0AA1 |
|
Product Type |
Analog Input Module |
|
Series |
SIMATIC ET 200SP |
|
Designation |
AI 8xI 2-/4-wire Basic |
|
Number of Analog Inputs |
8 (single-ended) |
|
Measurement Type |
Current: 0～20 mA、-20～+20 mA、4～20 mA |
|
Input Resistance |
100 Ω |
|
Resolution |
16 bit (with sign), typical 15 bit |
|
Cycle Time |
Min. 1 ms per channel |
|
Conversion Time (Selectable) |
180 / 60 / 50 / 0.625 ms |
|
Smoothing Levels |
None, 4x, 8x, 16x (parameterisable) |
|
Transducer Support |
2-wire & 4-wire transducers |
|
Transducer Burden |
Max. 650 Ω |
|
Transducer Supply |
24 V DC, max. 0.7 A (short-circuit protected) |
|
Reverse Polarity Protection |
Yes |
|
Permissible Voltage Range |
19.2 V ~ 28.8 V DC |
|
Current Consumption (No Sensors) |
Max. 25 mA |
|
Power Loss |
Typ. 0.7 W |
|
Linearity Error |
±0.01 % |
|
Temperature Drift |
±0.005 %/K |
|
Repeat Accuracy (25 °C) |
±0.05 % |
|
Overall Error Limit (Full Temp Range) |
±0.5 % |
The 6ES7134-6GF00-0AA1 analog input module enables precise and high-density current signal acquisition for ET
200SP decentralised I/O systems. Supporting 8 channels in both 2-wire and 4-wire formats, it is ideal for capturing
industrial process signals from 0 to 20 mA or 4 to 20 mA. Its 16-bit resolution, configurable integration times, and
advanced smoothing options help achieve high signal fidelity even in noisy environments. With built-in diagnostics,
short-circuit protection, and 24 V encoder power, the module ensures robust and safe integration. It’s suitable for
applications from -30 to +60 °C, making it a reliable choice for manufacturing and process .
Product Applications
Water treatment and environmental engineering: Monitoring pump flow, water tank level, pH value and turbidity
detection.
Automotive manufacturing industry: Used for assembly lines, conveying systems and welding robot units for pressure
and position sensor signal collection.
General mechanical equipment: For temperature and position signal collection in textile machinery, packaging machinery,
and food processing machinery.
Steel and metallurgy: Applied to smelting and rolling equipment in harsh environments, monitoring thermal processes
through feedback signal detection.
Energy and power industry: Power auxiliary systems, boiler control and thermal energy monitoring systems.
Heating, Ventilation, and Air Conditioning (HVAC): Sensor data collection in large-scale centralized cooling and
heating systems.
