ICS Triplex TC-801-02-6M5 I/O Companion Slot
Specifications
Model Number
TC-801-02-6M5
Cable Length
6.5 meters (21.3 feet)
Sheath Material
LSZH (Low Smoke Halogen-Free)
Rated Voltage
Max 50 V DC
Max Current per Core
1 A
Conductor Impedance
≤ 95 Ω/km (20°C)
Insulation Impedance
≥ 100 MΩ·km
Withstand Voltage Test
DC 500 V, 1 minute, no breakdown

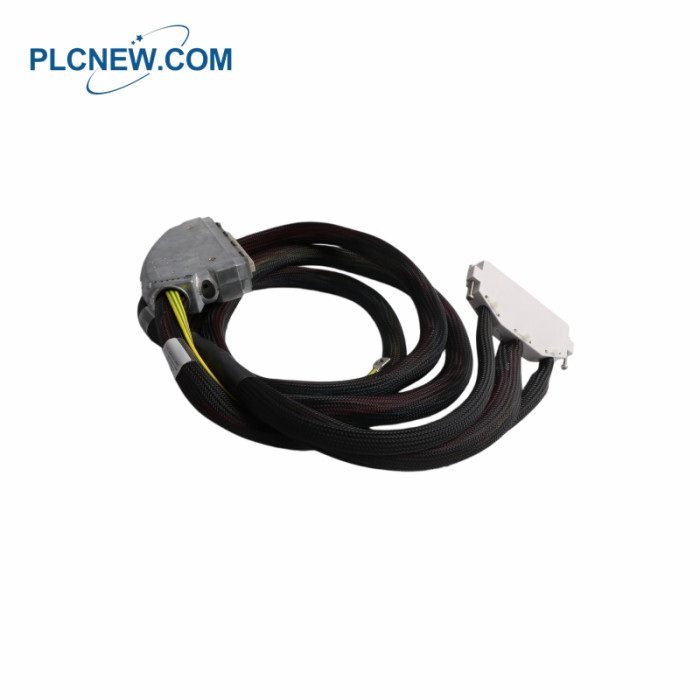

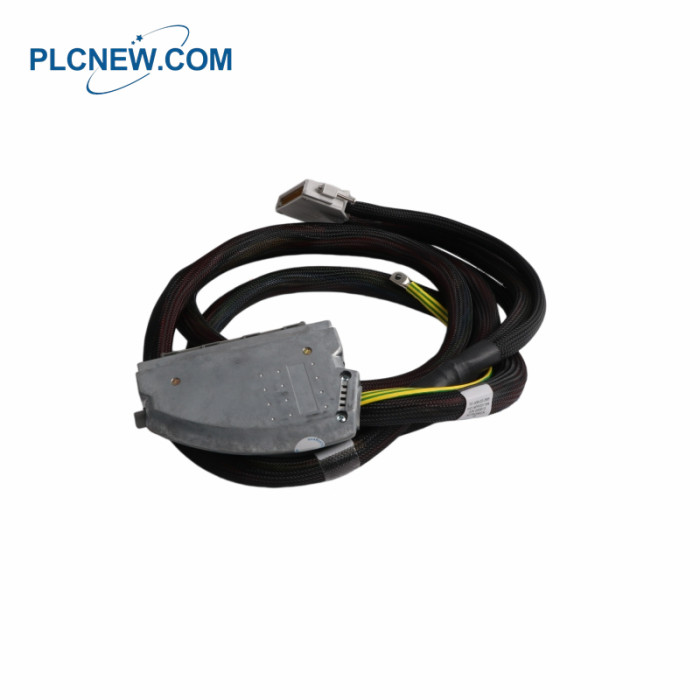

The TC-801-02-6M5 Trusted I/O Companion Slot Cable is designed for use with the T8442 Speed Monitor module
and is required for connections to a T8846 Speed Input FTA and up to three T8891 Speed Output FTAs. Both the -02
and -03 versions of this cable are internal, low smoke zero halogen types, and there is no SmartSlot version available.
The chassis end of the multi-core cable is fitted with a 96-way type ‘C’ connector housed in a double-width hood. The
opposite ends of the cable are fitted with six 20-way screw-fit 3.5 mm pitch female header connectors; three
connectors interface with the T8846, while one connector is assigned to each T8891.
Product Applications
Oil and Gas (Oil and Gas Extraction and Refining): Used in emergency shutdown (ESD) systems and fire and gas
(F&G) systems on offshore drilling platforms and refineries to ensure production safety in extreme environments.
Chemical and Petrochemical Industry: Provides highly reliable inter-module expansion for DCS/PLC systems in
high-risk reactors and continuous production units, ensuring accurate data acquisition and valve control.
Power and Energy: Used for safety monitoring in nuclear power plants, thermal power plants, and power transmission
and distribution systems to ensure the flawless operation of core power generation equipment and the power grid.
High-End Manufacturing: Widely used in industries such as papermaking, metallurgy, and water treatment,
connecting digital/analog signal modules to field terminals to meet the needs of high-precision data acquisition and
process control.
