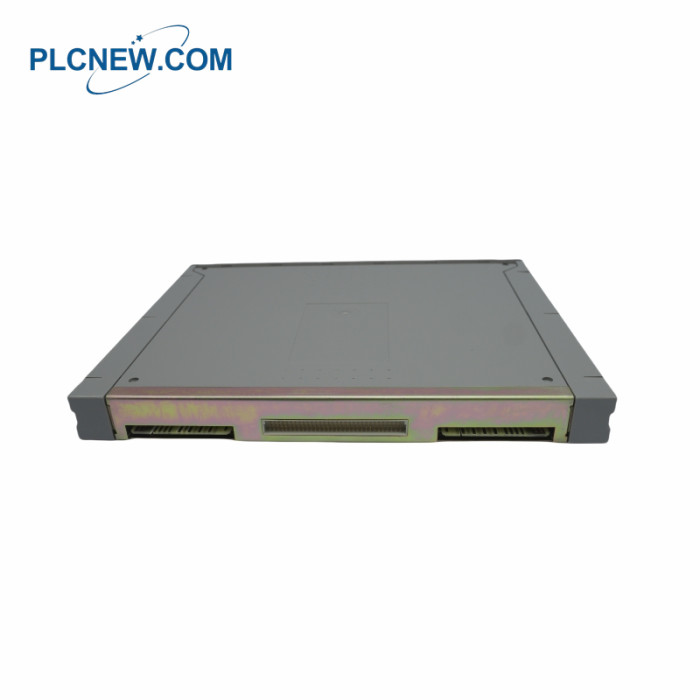

ICS Triplex T7481 Guarded Output Module
Specifications
|
Model Number |
T7481 |
|
Product Type |
Guarded Output Module |
|
Output Channels |
16 outputs (2 groups, 8 channels per group) |
|
Output Voltage Range |
18～36 VDC |
|
Load Current (0℃～40℃) |
2 A per channel |
|
Load Current (60℃) |
1.5 A per channel |
|
Minimum Load Current |
20 mA (typical 5 mA) |
|
Max On-State Voltage Drop |
1.0 V |
|
Surge Current (Incandescent/Capacitive Load) |
3.5 A peak |
|
Surge Current (Inductive Load) |
7 A, duration 20 ms |
|
Turn-On Delay |
0.5 ms |
|
Turn-Off Delay |
0.5 ms |
|
Heat Dissipation |
30 W (101 BTU/hr) |
|
Minimum Isolation Voltage |
2500 V |
|
Operating Temperature |
0℃～+60℃ |
|
Storage Temperature |
-40℃～+85℃ |
The ICS Triplex T7481 Monitored Guarded Output Module is a high-integrity digital output module used in Trusted™ and
fault-tolerant safety systems for critical control and shutdown applications. The module provides 16 monitored output
channels arranged in two groups of eight channels and supports output voltages from 18 to 36 VDC. Certified for Safety
Risk Class 5 applications, the T7481 is suitable for both single-module and dual-module safety architectures, providing
reliable de-energize-to-trip functionality for safety-critical processes.
With a load capability of up to 2 A per channel, integrated fuse protection, fast 0.5 ms switching response, and
2500 V isolation, the module delivers dependable performance in demanding industrial environments. Advanced
output monitoring continuously checks field circuits and helps detect load or fuse faults, enhancing system availability
and operational safety. The T7481 is widely deployed in emergency shutdown (ESD), fire and gas, turbine control, and
safety instrumented systems (SIS) across the oil and gas, petrochemical, power generation, and process industries.
Product Applications
Oil and Gas : Used in wellhead control systems, emergency shutdown (ESD) systems, and fire and gas detection
(F&G) systems.
Chemical and Petrochemical Industries: Provides critical safety interlock protection in high-pressure, high-temperature,
or flammable and explosive reactors and pipelines.
Power Generation and Nuclear Power: Monitors critical outputs of turbines, boilers, and cooling systems to prevent
catastrophic equipment failures.
Metallurgy and Mining: Ensures emergency shutdown and failover operations in heavy machinery and
high-temperature smelting processes.
