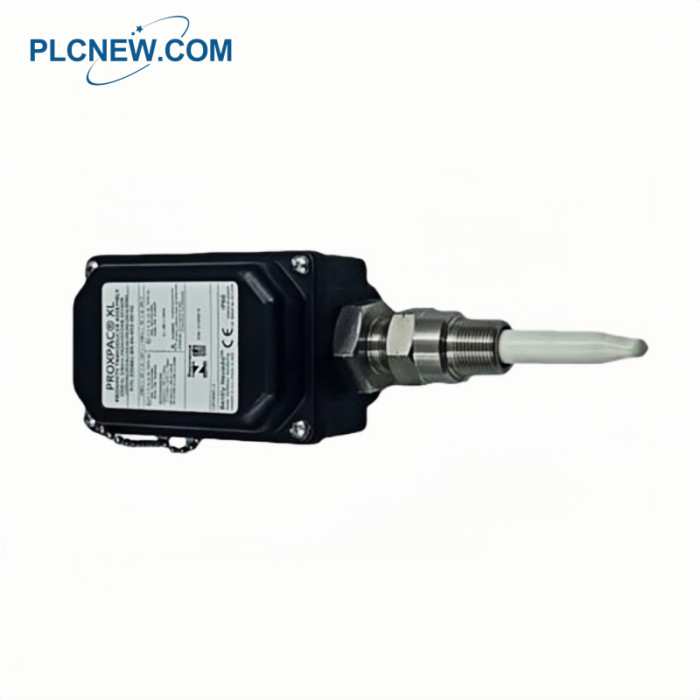

Bently Nevada 330880-28-15-35-00-02 Proximity Transducer
➽Inquire to Frida
Phone/WhatsApp: +86-18965196563 Email:sales17@amikon.cn
➽Know the product
The 330880-28-15-35-00-02 is a self-contained PROXPAC XL assembly integrating an 8mm proximity probe
and Proximitor sensor in a single, rugged IP66 housing.
It features a 1.5-inch standoff adapter, a 3.5-inch probe penetration sleeve with 3/4-14 NPT mount,
and carries multiple hazardous area approvals.
This all-in-one unit eliminates extension cables and separate housings, simplifying installation for vibration
and position monitoring in demanding environments.
Probe and Approvals Option (A): 28 indicates the assembly includes a 3300 XL 8 mm probe and carries Multiple Hazardous Area Approvals.
Standoff Adapter Option (B): 15 indicates a 1.5-inch (38 mm) long standoff adapter is included.
Probe Penetration Option (C): 35 indicates a 3.5-inch (89 mm) probe sleeve penetration length.
Fittings Option (D): 00 indicates no conduit fittings are included; the package contains two plugs and two washers.
Mounting Thread Option (E): 02 indicates the outer sleeve assembly has 3/4-14 NPT mounting threads (required when a standoff adapter is ordered).
Probe Cable Length: 1-meter integral cable (standard for PROXPAC).
Electrical Output: -1 to -17 Vdc for vibration and position, proportional to gap.
Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5%.
Linear Range: 2.0 mm (80 mils), from 0.25 mm to 2.3 mm (10 to 90 mils) from the target.
Recommended Gap Setting: 1.27 mm (50 mils).
Frequency Response: 0 to 10 kHz, +0, -3 dB.
Power Supply: Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA max consumption.
Output Resistance: 50 Ω.
Operating Temperature (Transmitter/Probe): -52°C to +100°C / -52°C to +177°C (-62°F to +212°F / -62°F to +351°F).
Total System Weight: Approximately 1.44 kg (3.2 lb) typical.
