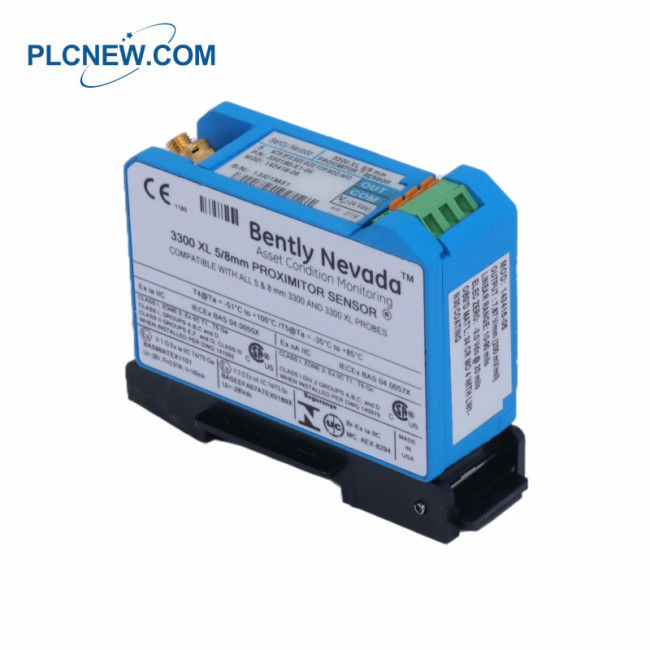

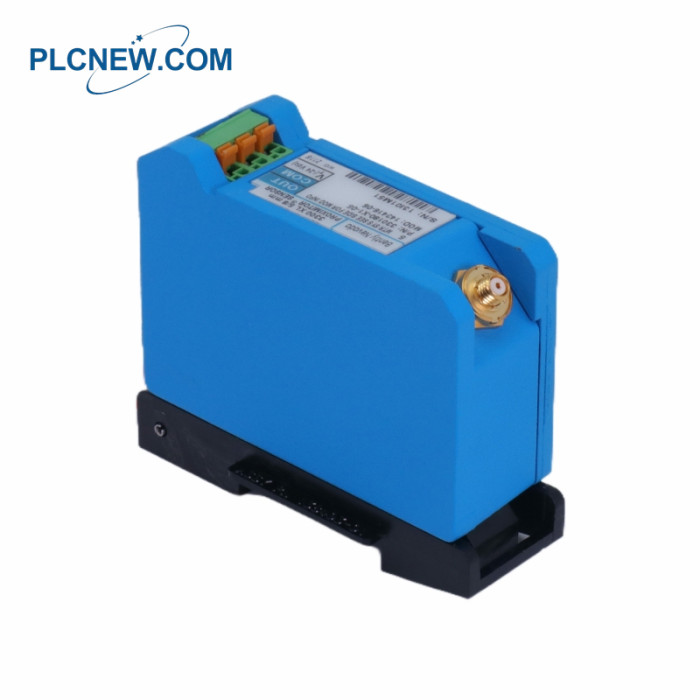

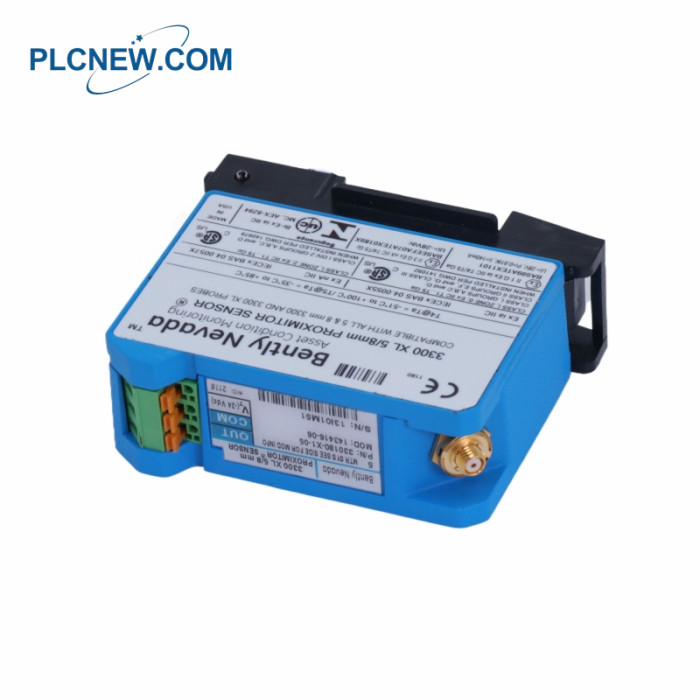

Bently Nevada 330180-X1-05 MOD 145004-10 Proximitor Sensor
Specifications
|
Model Number |
330180-X1-05 MOD 145004-10 |
|
Power Supply |
-17.5 Vdc ~ -26 Vdc |
|
Sensitivity |
Less than 2 mV |
|
Output Resistance |
50 Ω |
|
Recommended Gap Setting |
-9 Vdc |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) |
|
Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG) |
|
Linear Range |
2 mm (80 mils) |
|
Minimum Target Size |
15.2 mm (0.6 in) |
The 330180-X1-05 MOD 145004-10 is a highly specific configuration of the Bently Nevada 3300 XL 5/8mm Proximitor Sensor.
It acts as a crucial component in industrial condition monitoring systems, interpreting electrical signals from proximity
probes to measure shaft vibration and position.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducersystems.
The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APi)670 Standard
for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer
systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and
Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Product Applications
Power Generation Plants: Steam turbines, gas turbines, high-power generators, boiler feed pumps, forced draft fans.
Oil & Gas / Petrochemical Refineries: Centrifugal compressors, reciprocating compressors, hydrocracking pumps,
liquefied natural gas (LNG) cryogenic pumps.
Steel & Metallurgical Mills: Blast furnace blowers, large exhaust fans, rolling mill main drive shafts, high-pressure
water descaling pumps.
Chemical & Fertilizer Plants: Ammonia synthesis compressors, urea high-pressure pumps, air separation units
(air compressors).
