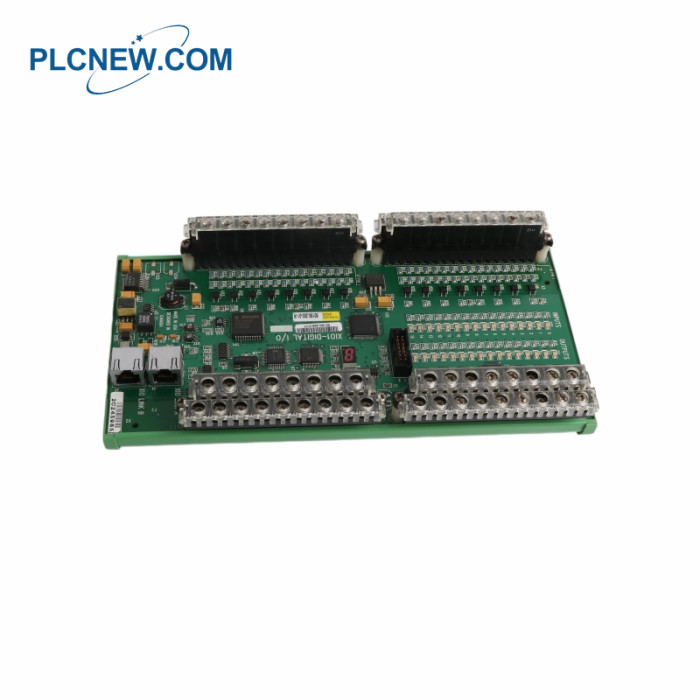

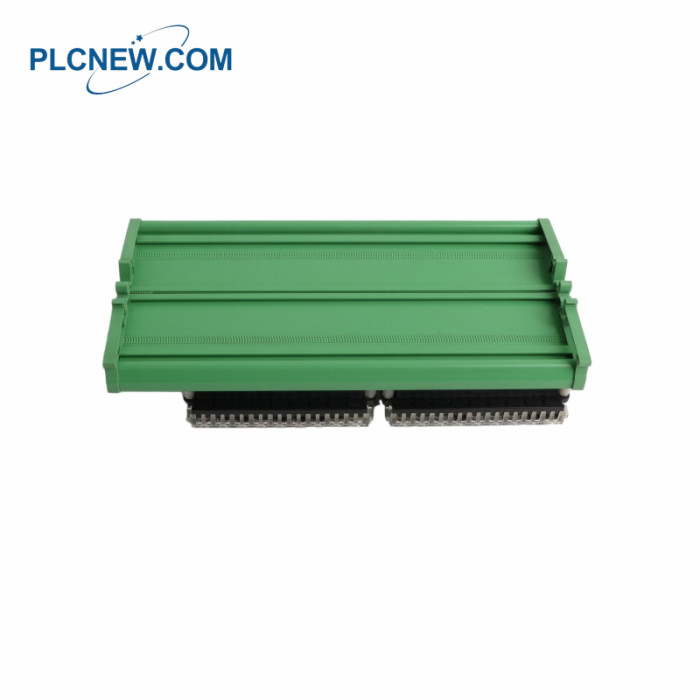

80190-300-01-R Extended I/O Circuit Board

80190-300-01-R Extended I/O Circuit Board

80190-300-01-R Specifications

80190-300-01-R Description

The 80190-300-01-R is a specialized PC Board Assembly that operates at a voltage of 24 VDC. It is designed

specifically for use within the PowerFlex 7000 Drive system, delivering essential digital input/output capabilities.

The board's current capacity reaches 2 amps, suitable for various control applications. This digital I/O board features

a single channel architecture, enabling straightforward integration into existing systems.
For installation convenience, the board can be mounted on either a panel or chassis, facilitating adaptability in various

setups. The board incorporates two normally open (NO) contacts and two normally closed (NC) contacts, making it

versatile for different electrical configurations. Active status is indicated through onboard LEDs, providing users with

immediate feedback on operation.

Frequently asked questions：

Q1: What is the 80190-300-01-R used for?
A: The 80190-300-01-R Extended I/O Circuit Board is a digital I/O board used to expand input/output capabilities in

industrial control and systems.
Q2: What is the 80190-300-01-R operating voltage of this I/O board?
A: The 80190-300-01-R board is rated for 24 VDC operation, which is standard in industrial control systems.
Q3: What is the 80190-300-01-R current rating of the 80190-300-01-R?
A: The 80190-300-01-R module supports a current rating of up to 2 A.
Q4: How many channels does this board provide?
A: The 80190-300-01-R board is designed as a single-channel I/O module.
Q5: What type of contacts are available on this module?
A: It includes 2 Normally Open (NO) and 2 Normally Closed (NC) contacts for flexible control .

Product Applications

Oil & Gas: Extended monitoring for pumping systems, compressor control, and process variables.
Chemical Processing: Managing complex production processes to ensure high-precision signal processing.
Cement & Mining: Applied to large conveyor belts, mills, and lifting equipment for power drive and control

systems.

Power Generation: Assisting in the control of power generation equipment and monitoring of power distribution

systems.
Metallurgy & Steel: Controlling the automated operation of production lines in high-temperature and

high-pressure environments.

Core functions and technical features
Digital I/O management: As part of the XI01 series, it is mainly responsible for the input and output management

of digital signals within the system, supporting precise signal processing.
System scalability: Often used as an expansion board, it increases the I/O capacity of controllers (such as GuardPLC

or related servo drive systems), enhancing factory production efficiency.
High reliability design: It has a wide operating temperature range (typically -40°C to 70°C) and anti-interference

technology, ensuring stable operation in complex electromagnetic environments.
