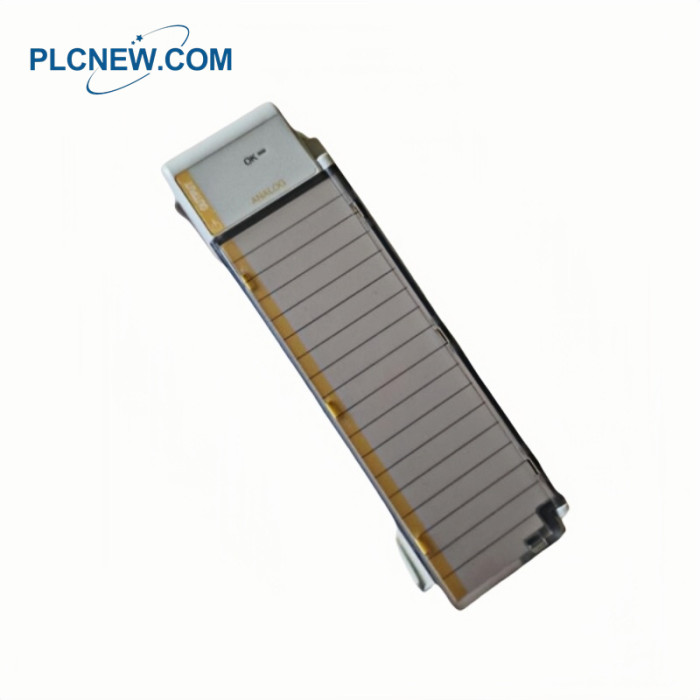

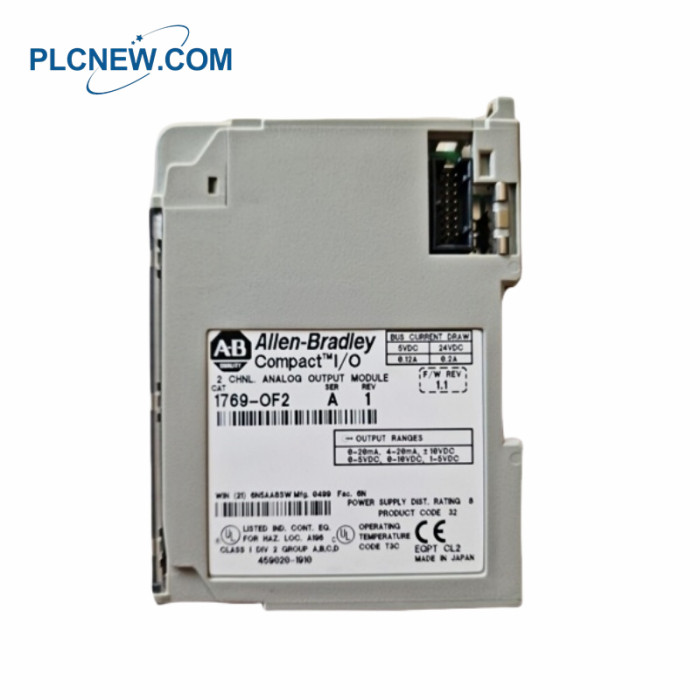

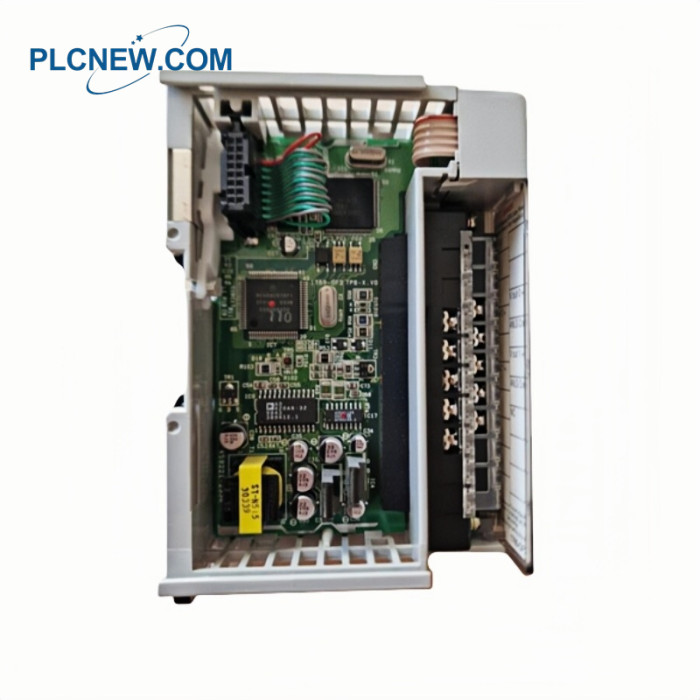

1769-OF2 Analog output module

1769-OF2 Analog output module

1769-OF2 Specification

Part Number/Catalog No.: 1769-OF2
Product Line: CompactLogix
Module Type: Analog Output Module
Input Type: Analog
Communication Cable: 2 Point
Shipping Weight: 2 lbs.
Shipping Dimensions: 8 x 8 x 5 in.
Series: A and B
Wire Size (Solid): 22 to 14 AWG
Replacement Terminal Block: 1769-RTBN18
Replacement Door: 1769-RD
Mounting: Panel Mount or DIN Rail

1769-OF2 Description

The 1769-OF2 is a Two (2) channel analog output module.  This module is a single-slot width module with

each channel capable of providing analog voltage and current signals such as ± 10VDC, 0 to 10VDC, 0 to 5VDC,

1 to 5VDC and 0-20 mA and 4-20 mA.  This output module may be used to drive modulating devices, re-transmit

analog data to another receiving element such as panel meters and data logger and as input of signal isolators and splitters.

The 1769-OF2 features Two (2) single ended output channels with sigma-delta Digital-to-Analog (DAC) converter.

Depending on the configured output signal, the module’s resolution are ±10V dc: Sign + 14 bits, 0.64 mV 0 to

+5V dc: Sign + 13 bits, 0.64 mV 0 to +10V dc: Sign + 14 bits, 0.64 mV +4 to +20 mA: Sign + 14 bits, 1.28 µA

+1 to +5V dc: Sign + 13 bits, 0.64 mV 0 to +20 mA: Sign + 14 bits, 1.28 µA.  Overall, the digital resolution across

full range is 14 bits (unipolar);  14 bits plus sign (bipolar) with conversion rate 2.5 ms and step response of 2.9 ms.

The 1769-OF2 output may be linked to Proprotional + Integral + Derivative (PID) controller, used for implementing

manual and automatic control of analog control loops.  If used with CompactLogix version 20.
