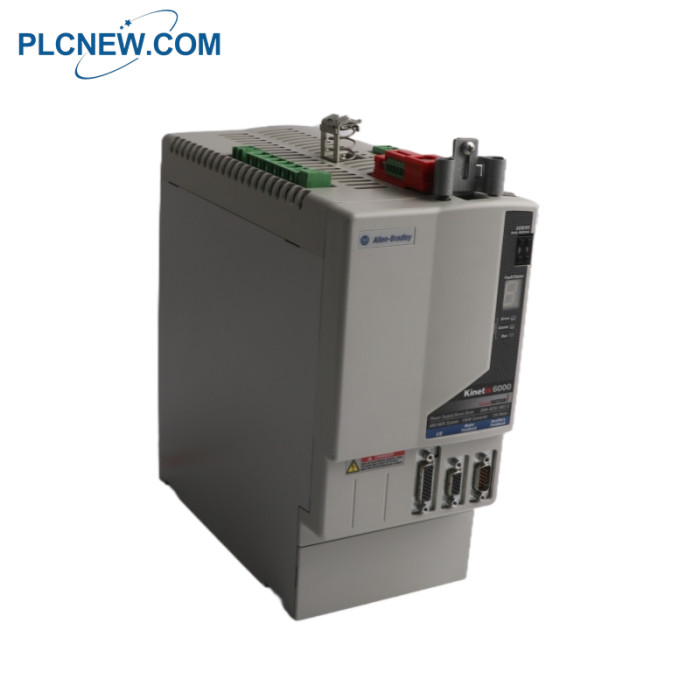

2094-BC02-M02-S Controller Module
Description
|
Component Type: Servo Drive (Integrated Axis Module) |
|
Input Voltage, 3 Phase Nominal: 400/460 V AC (360 V AC nom rms) |
|
Input Voltage Range, 3 Phase: 324 V AC min (rms) to 528 V AC max (rms) |
|
Input Frequency, Nominal: 50 / 60 Hz |
|
Input Frequency Range: 47 Hz min to 63 Hz max |
|
Input Current, Three Phase Nominal: 24 A |
|
Input Current, Three Phase Max: 22 A (0-pk) |
|
Bus Voltage, Nominal: 650 V DC |
|
Bus Power, Continuous: 15 kW |
|
Bus Power, Peak: 37.5 kW |
|
Output Current, Continuous (rms): 22.6 A, rms |
|
Output Current, Peak (rms): 56.4 A, rms |
|
Internal Shunt Power, Continuous: 50 W |
|
Internal Shunt Power, Peak: 5600 W |
|
Efficiency, Electrical, Peak: 97% or greater |
|
Operating Temperature Range: 0 °C min to 50 °C max |
|
Storage Temperature Range: -50 °C min to 70 °C max |
|
Relative Humidity Range: 5 %RH min to 95 %RH max (non-condensing) |
|
Operating Altitude (No Derating): 1000 m |
|
Operating Altitude (With Derating): Up to 3000 m |
|
Height: 287 mm |
|
Width: 125 mm |
|
Depth: 272 mm |
|
Weight: 5.08 kg |
