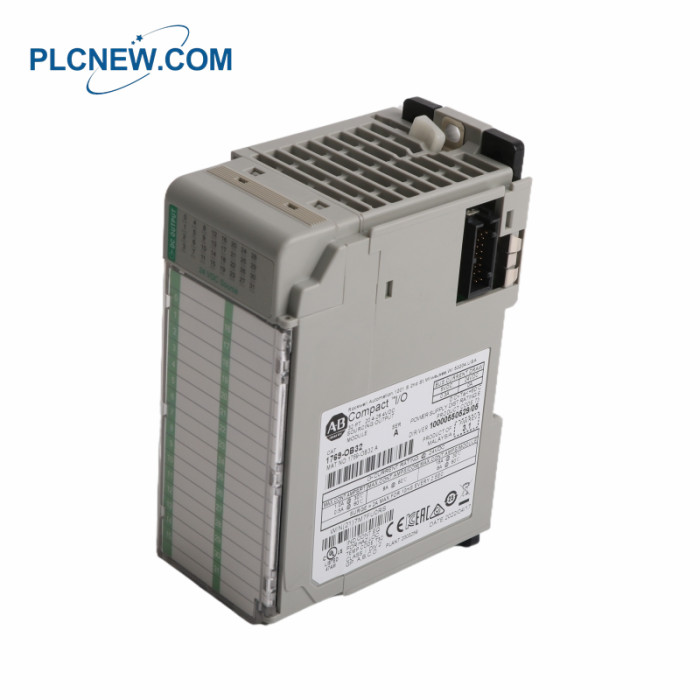

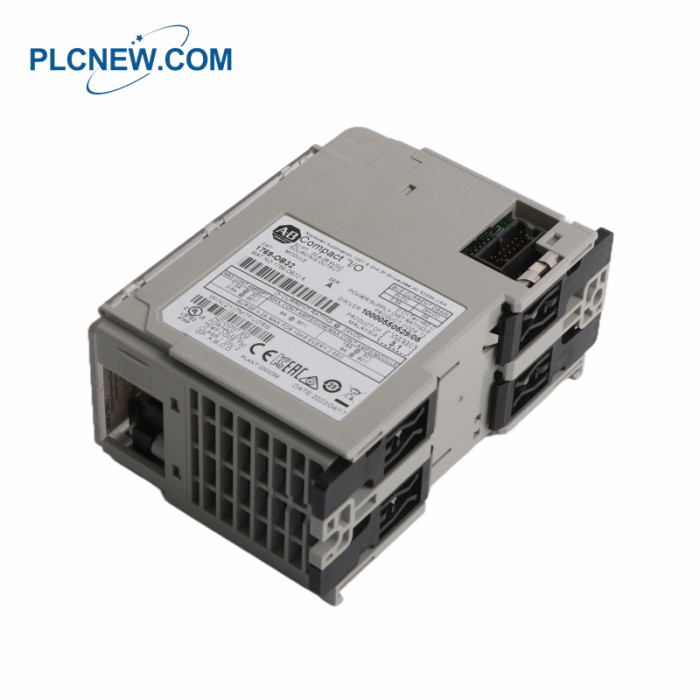

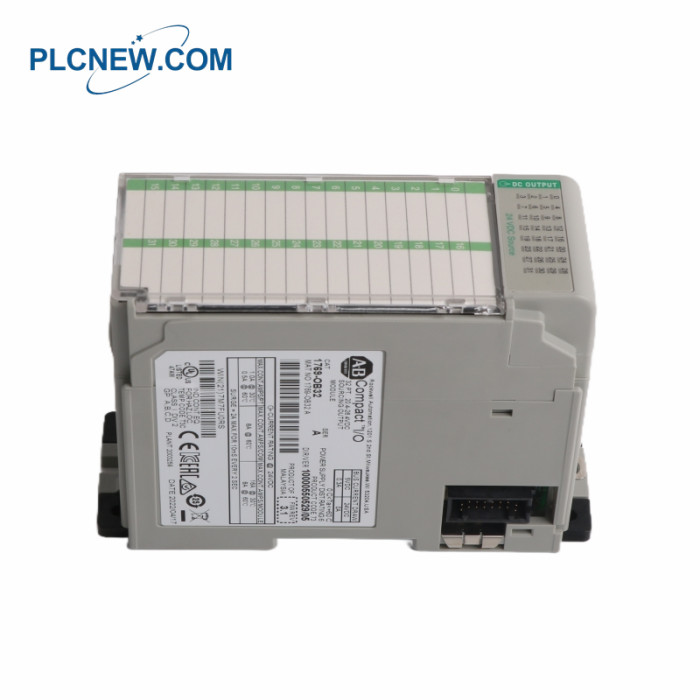

1769-OB32 Discrete Output Module

1769-OB32 Discrete Output Module

1769-OB32 Specification

Part Number / Catalog No.: 1769-OB32
Product Type: Discrete Output Module
Outputs: 32 Points
Number of Outputs: 32
Number of Groups: 2
Operating Voltage Range: 20.4…26.4V DC
Current per Point:
0.5 A @ 60 °C (140 °F)
1.0 A @ 30 °C (86 °F)
Power Supply Distance Rating: 8
Enclosure: Open
Series: A and B
Wire Size (Solid): 22…14 AWG
Wire Size (Stranded): 22…16 AWG
Wire Type: Cu-90 °C (194 °F)

1769-OB32 Description

The 1769-OB32 belong to the 1769 Compact I/O.  This solid-state device is a discrete output sourcing module

that is manufactured for use with Controllers as well as controllers.
The 1769-OB32 is a high-density module that is equipped with Thirty-Two (32) output channels, isolated in Two

(2) groups of Sixteen (16) channels.  This module is practical for use in applications where a large number of I/Os

are existing, with limited panel space.  This module occupies 1.5 slot of the chassis to allow maximizing supported

module of a specific controller.
The output channel of this module operates at a sourcing input configuration.  Individual ON Output delay of each

channel measures 0.1 ms and an OFF output delay of 1.0 ms.  Each channel may carry a Current of 0.5 A @ 60 °C

(140 °F) and 1.0 A @ 30 °C (86 °F).  The 1769-OB32 occupies a 32-Bit register.  By accessing the module register,

monitoring or I/O forcing may be enabled to support commissioning of the component.
