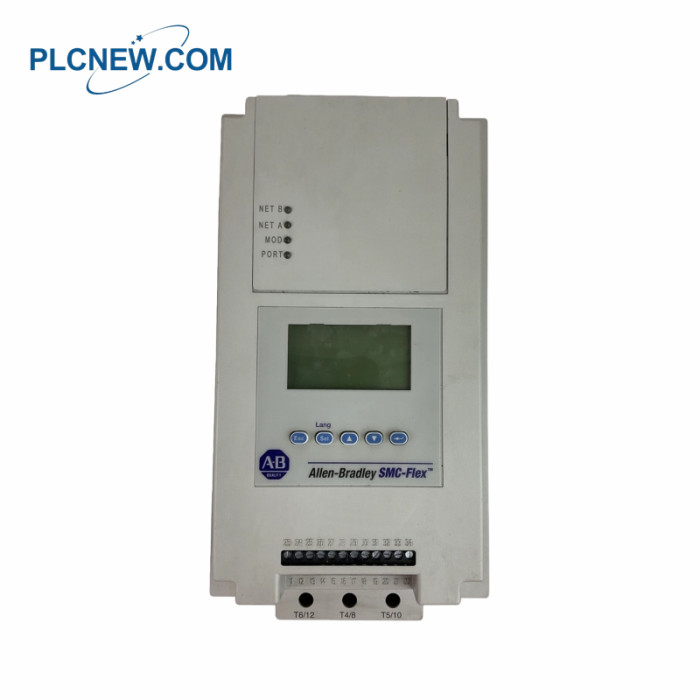

150-F85NBR Smart motor controller

150-F85NBR Smart motor controller

Specifications

The 150-F85NBR is a Smart Motor Controller (SMC) . It is specifically part of the SMC Flex product family, which is

more popularly termed as a Motor Soft-Starter. It is mainly used to implement different starting and stopping modes

such as Soft Start, Kickstart, Current Limit, Pump, Control, Dual ramp start, Full Voltage Start, Coast, Soft Stop, and

Smart Motor Braking. Aside from controlled starting and stopping operation, the 150-F85NBR can be used to lower

power consumption which contributes to reduced cost of operation of the control system. This Smart Motor Controller

(SMC) has a line voltage requirement of 200-460VAC, 3-Phase, operable at both 50 and 60Hz. It may also be used with

Line connected and Delta-connected motors wherein, the output power and output current ratings vary, specifically, of

25 - 60 HP @ 60 Hz; 22 - 45 kW @ 50 Hz and output current range of 17-85 Amperes. For Delta-connected motors, it

has an output power range of 40 - 100 HP @ 60 Hz; 45 - 75 kW @ 50 Hz, and an output current range of 29.4-147

Amperes. The 150-F85NBR is specifically compatible for use with a standard squirrel-cage induction motor or a

Wye-Delta, Six-lead AC motor. It comes with a built-in front keypad with a Liquid Crystal Display (LCD) screen while

optionally supporting a 20-HIM-A keypad module which directly attached to the built-in DPI port of the controller. In

addition to controlled starting and stopping characteristics, the 150-F85NBR has a built-in metering capability which

can be used to measure Amps, Volts, kW, kWh, MW, MWH, elapsed time, power factor, and motor thermal capacity usage.

Product Applications

Water treatment and municipal engineering: Widely used to control centrifugal pumps and submersible pumps,

effectively eliminating the "water hammer effect" in pipelines and protecting pipeline safety.
Mining and cement industry: Used in belt conveyors, bucket elevators, and crushers, reducing wear and mechanical

shock in heavy-duty mechanical transmission systems through soft starting.
Petrochemical and metallurgical industries: Suitable for air compressors, fans, cooling towers, and other equipment,

supporting smooth start-up under heavy loads and extending equipment life.
Food processing and light industry: Soft-start technology prevents starting current overload, reduces impact on the

factory power grid, and ensures production line stability.
