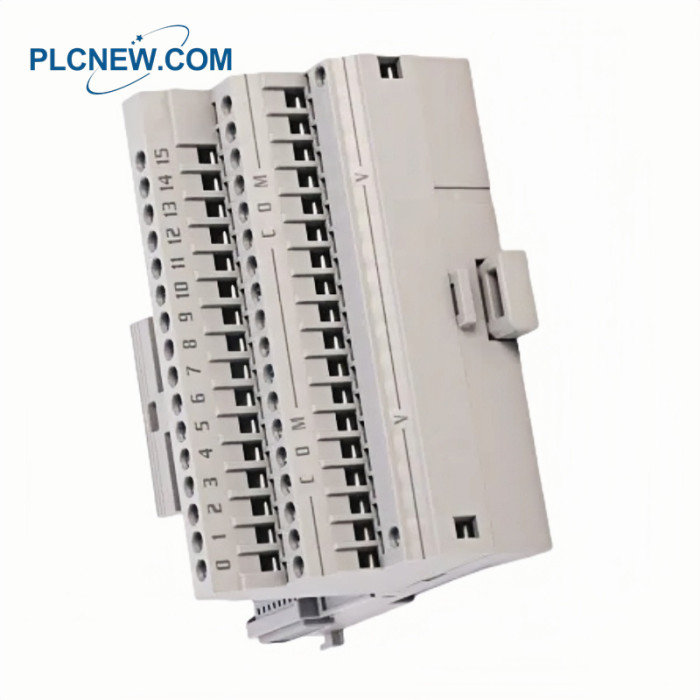

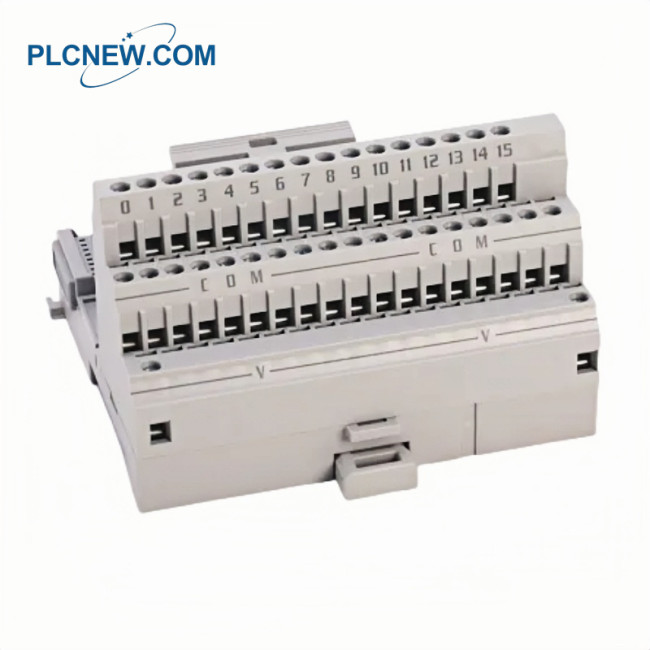

1794-TB3K Terminal Base Unit

1794-TB3K Terminal Base Unit

1794-TB3K Specification

Series: Flex I/O
Model:1794-TB3K
Module Type: Terminal Base Unit
Terminal Screw Torque: 0.56–0.79 Nm
Number of Terminal Strips: Three (3)
Number of Terminals: 52
Number of Terminal Rows: 2 terminal rows
I/O Terminals: Sixteen (16) terminals
Common / Supply Terminals: Eighteen (18) terminals
Connection Type: Screw clamp
Wire Size: 0.34–3.3 mm²
Supply Voltage Range (Max): 125V DC/AC, 50/60Hz, 10A
Voltage Rating: 24V DC/AC, 120V DC/AC
Voltage Rating (Max): 132 VAC
Isolation Voltage: 125V Continuous
Backplane Current Draw: 640 mA @ 5VDC

1794-TB3K Description

The 1794-TB3K is a Flex I/O component that is manufactured by .   This component is specifically a Terminal Base

unit, primarily used as termination points of field devices and power supply devices.   this module is also used to host

Flex I/O modules specifically, 1794-IA8, 1794-IA8I, 1794-IA16, 1794-OA8, 1794-OA8I, 1794-OA16, 1794-IB8,

1794-IB16XT, 1794-IB10XOB6, 1794-IB10XOB6XT, 1794-IC16, 1794-IG16, 1794-IH16, 1794-IV16, 1794-OB8,

1794-OB8EP, 1794-OB8EPXT, 1794-OB16, 1794-OB16D, 1794-OB16P, 1794-OB16PXT, 1794-OC16, 1794-OG16,

1794-OV16, 1794-OV16P, 1794-OW8, and 1794-OW8XT.   The 1794-TB3 is had Three (3) terminal strips.   The top

terminal strip is composed of Sixteen (16) terminals designated for wiring of input and output signals.   The middle

and bottom terminal is composed of Eighteen (18) terminals, designated for common and voltage terminals.   -V

Common is located at Terminals B-16 and B-33;   +V (Voltage In) Terminals is located at C-34 and C-5 terminals.

For daisy-chaining to nearby Flex I/O module and terminal base, the daisy-chaining terminal is located at C-34 (+)

and B-16 (-) for supply in and C-51 (+) and B-33 (-) for supply out.   The 1794-TB3K has screw clamp terminals.

To install the terminal base, position the terminal base at a slightly angled orientation.   Hook the terminal base over

the top of the DIN rail to attach the back of the terminal base to the DIN rail.   The Terminal base hook must slide

under the edge of the adapter module and the FlexBus connecter is engaged.   Slide the terminal base and push tight

against the adjacent adapter.   To lock the terminal base to the DIN Rail, push the terminal base until the 1794-TB3K

aligns and engages to the DIN rail.
