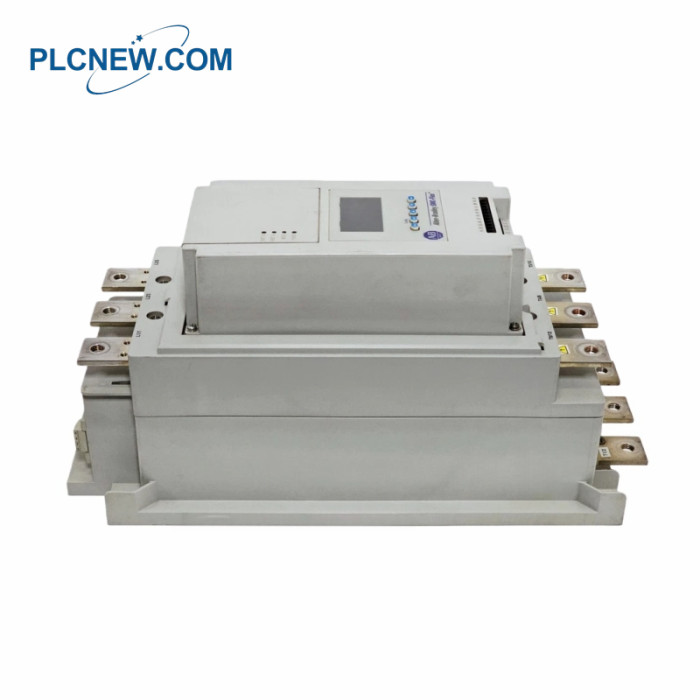

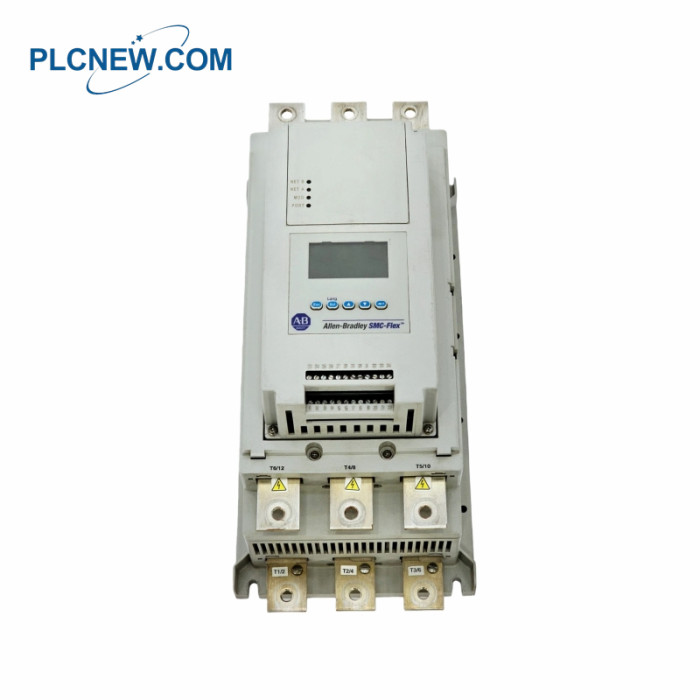

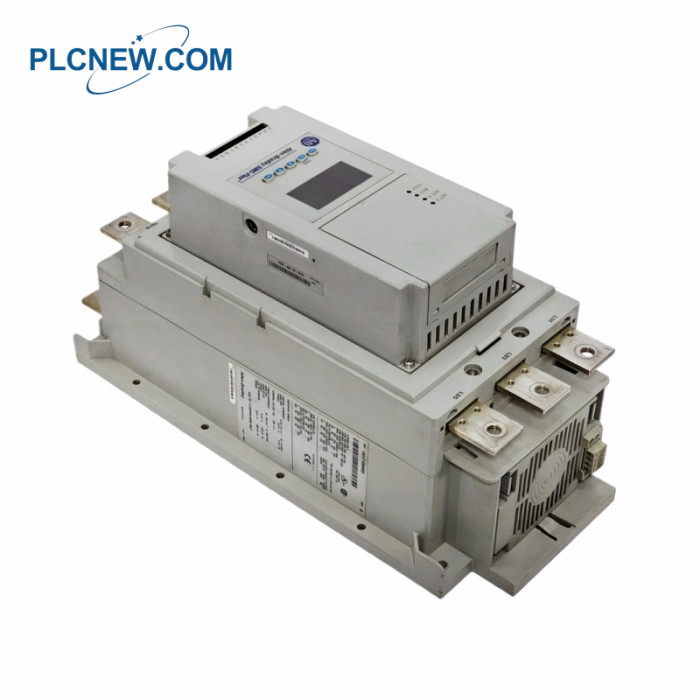

150-F108NBD Solid State Controller

150-F108NBD Solid State Controller

150-F108NBD  Specifications

150-F108NBD Description

The 150-F108NBD is a SMC Flex Smart Motor Controller that is manufactured. This device comes with line input

voltage requirements of 200-460VAC, 3-Phase, 50 / 60 Hz and control Voltage range of 100-240V AC (5-480 A units).

This drive provides a maximum continuous output current of 108 Amperes power of 75 HP at 460VAC rated voltage.
The 150-F108NBD comes with an open-type enclosure. It is also provided with built-in LCD backlight with front panel

buttons, allowing local controller configuration and operation. This Human Interface Module (HIM) also permits monitoring

of the drive’s operations status as well as aid in troubleshooting in the event of device malfunction.
It provides visual and configuration and convenient means of configuring the drive. Communication is established using

the built-in DPI interface of the smart motor controller.

Frequently asked questions：

Q1: What is the 150-F108NBD?
A1: The 150-F108NBD is a solid state motor controller (Bulletin 150 series) designed for soft starting and stopping

of three-phase motors in industrial applications.
Q2: What is the 150-F108NBD maximum output current?
A2: The 150-F108NBD controller provides a maximum output current of 108 A.
Q3: What motor power can it support?
A3: It supports motors up to 75 HP, making it suitable for medium-duty applications.
Q4: What are the built-in protection features of the 150-F108NBD?
A4:The 150-F108NBD has built-in Power loss, line fault, voltage unbalance, excessive starts/hour, phase reversal,

undervoltage, overvoltage, controller temp, stall, jam, open gate, overload, underload, communication fault diagnostics.
Q5: Does this motor controller come with a built-in Human A5:Interface Module (HIM)?
Yes. HIM are built-in components for the 150-F108NBD.

Product Applications

Water treatment and pump industry: Submersible pumps, sewage pumps, circulating pumps. Soft start can prevent "

water hammer effect" in the pipeline network, prolonging the service life of the pump and the pipeline.
HVAC (Heating, Ventilation, and Air Conditioning) and fans: Large industrial fans, cooling tower fans. Smooth start reduces

the impact on mechanical belts and fan blades.
Metal processing and mechanical manufacturing: Rolling mills, presses, conveyor belts. Meet the complex requirements

of industrial applications for high reliability and network integration (such as DeviceNet, EtherNet/IP).
Oil, gas, and mining: Compressors, crushers, mixers. Provide overload protection through intelligent motor control in

complex working conditions.

Key functional advantages
Start/stop mode: Offers 9 start modes and 3 low-speed modes (such as pump control, braking control, and soft stop),

suitable for different load characteristics.
Built-in motor protection: Integrates electronic overload protection, undervoltage/overvoltage protection, stop rotation

and stall detection, significantly enhancing system safety.
Energy saving and efficiency: Equipped with intelligent motor braking (SMB) function, enabling rapid shutdown

without additional hardware; energy-saving mode can optimize energy consumption during light-load operation.
