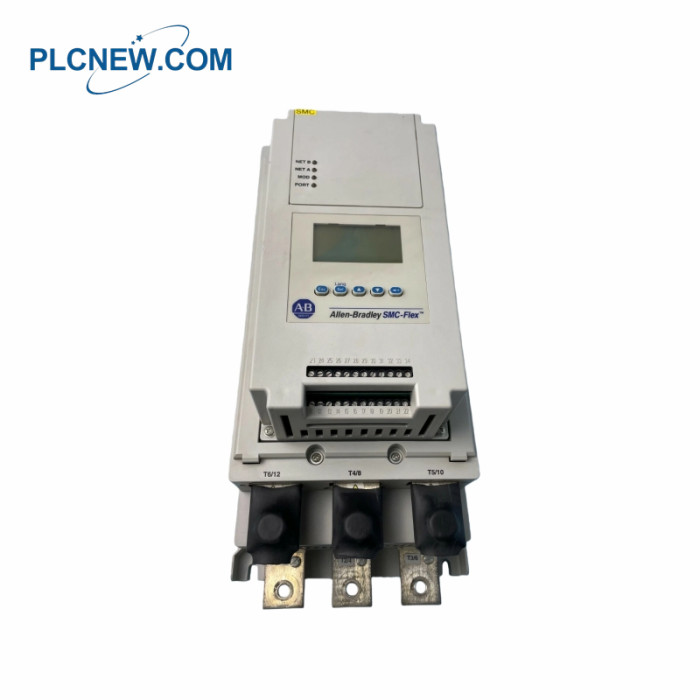

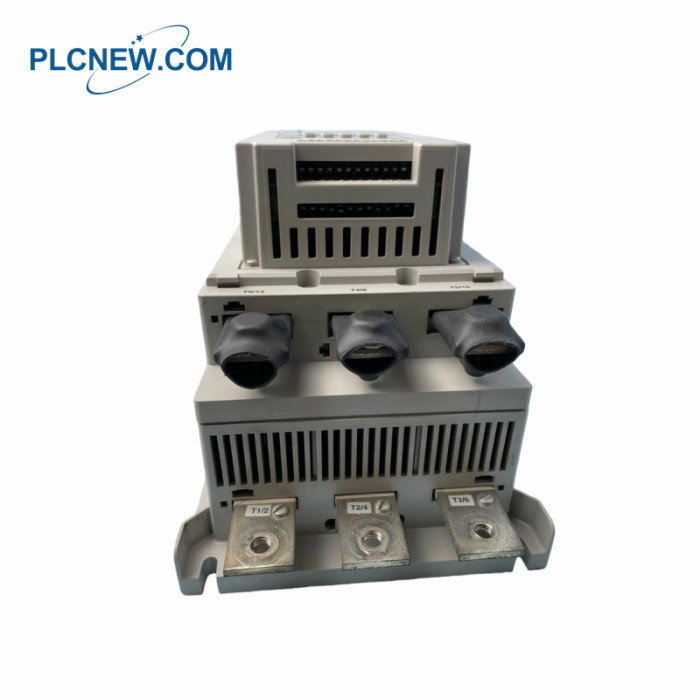

150-F135NBD Solid State Controller

150-F135NBD Solid State Controller

150-F135NBD  Specifications

150-F135NBD Description

The 150-F135NBD is a SMC Flex Smart Motor controller. This controller is generally termed as soft-starter that is typically

used to protect motors during start-up sequence however, this smart motor controller is not limited to starting functions as

it also offers appropriate control modes for stopping sequence and idle operation of the motor.
The 150-F135NBD Smart Motor Controller is capable of Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit

Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset

Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop and Pump Stop.

Frequently asked questions：

1.What is the function of the 150-F135NBD’s relay output contact?
The 150-F135NBD’s relay contact output is used to provide feedback regarding the controller’s Overload,

underload, undervoltage, overvoltage, unbalance, jam, stall, and ground fault conditions.
2.How many auxiliary contacts does the 150-F135NBD have?
The 150-F135NBD has Four fully programmable contacts in the form of Normally Open (N.O) and Normally

Closed (N.C.) assignable as normal/up-to- speed/fault/alarm/network and Normally Open (N.O) contact for

external bypass.
3.What are the starting and stopping modes supported by the 150-F135NBD?
The 150-F135NBD supported starting and stopping modes are Soft Start Current Limit Start Dual Ramp Full

Voltage Linear Speed Acceleration Preset Slow Speed Soft Stop.
4.What is the 150-F135NBD?
The 150-F135NBD is a solid state motor controller designed to provide efficient starting and stopping control for

industrial motors.
5.What is the 150-F135NBD maximum output power?
It supports a maximum output power of 100 HP, making it suitable for medium-sized motor applications.

Product Applications

Electric power industry and metallurgy steel: Used for controlling large pump sets, grinding machines or mixers,

handling high inertia loads.
Oil and gas: In the oilfield extraction and transportation processes, used to control injection pumps and pumping

units, etc. of equipment.
Mining and bulk material handling: Provide stable power management in heavy machinery at bulk cargo terminals.

Key functions and technical advantages
Comprehensive Protection: Built-in electronic overload protection, along with underload, undervoltage, overvoltage,

stall and phase loss monitoring, reduces downtime for maintenance.
Digital Monitoring: Supports various communication networks such as EtherNet/IP, and can directly integrate parameters

like current, voltage, power consumption (kW, kWh) into factory systems (such as PLC) for energy management.
Compact Design: Built-in integrated bypass contactor (Internal Bypass) reduces heat generation during operation and

narrows the space of the control cabinet.
