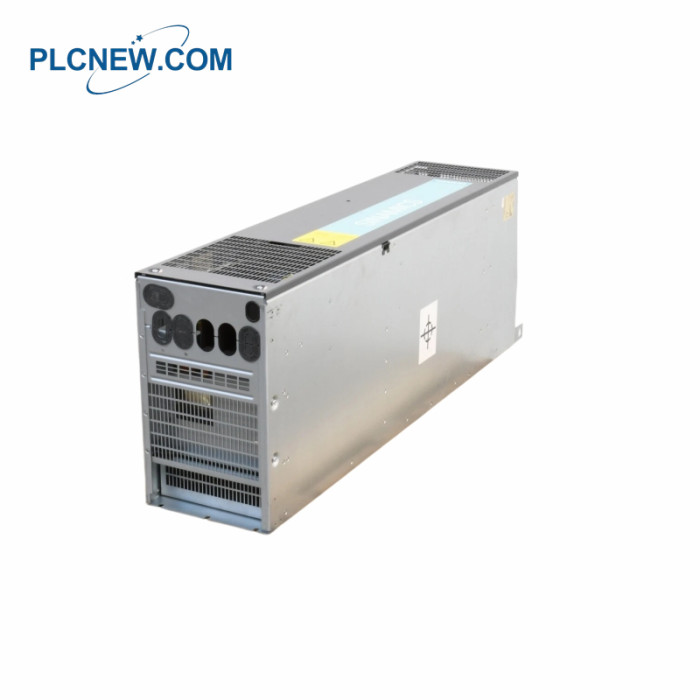

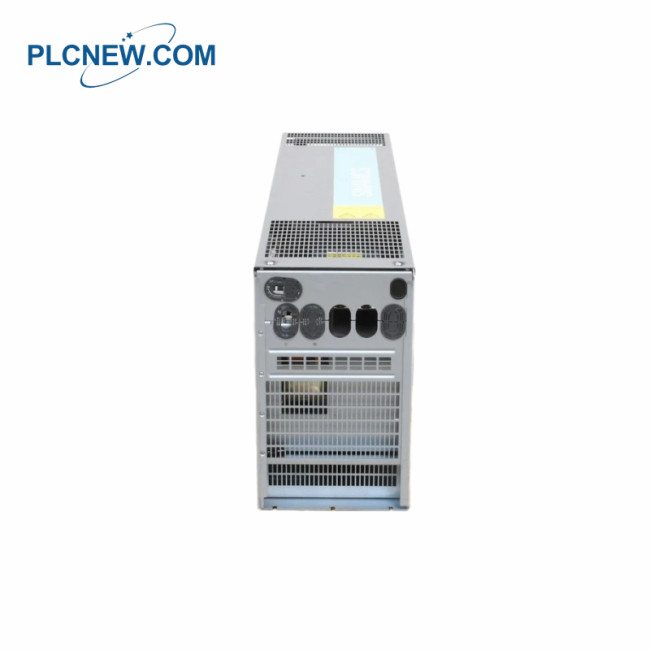

Siemens 6SL3320-1TE33-1AA3 Single Motor Module

Siemens 6SL3320-1TE33-1AA3 Single Motor Module

Details of the module

Manufacturer : Siemens
Product No. : 6SL3320-1TE33-1AA3
Product type : SINAMICS S120 Single Motor Modules
Input : 600 V DC
Output : 3-PH 400 V, 310 A
Efficiency : > 98.5 %
DC link voltage (up to 2000 m above sea level) : 510 V … 720 V DC (line supply voltage 380 V … 480 V 3 AC)

or 675 V … 1035 V DC (line supply voltage 500 V … 690 V 3 AC)
Safety Integrated : Safety Integrity Level 2 (SIL2) acc. to IEC 61508, Performance Level d (PLd) acc. to EN

ISO 13849-1 and Control Category 3 acc. to EN ISO 13849-1
Cooling air requirement : 0.36
Dimensions (HxWxD), approx : 153.3 cm x 32.6cm x 54.5cm
Shipping weight : 200 Kg

The Siemens 6SL3320-1TE33-1AA3 is a SINAMICS S120 Single Motor Module (Chassis format, Frame Size GX) designed

for high-performance motion control. It operates with a 600V DC input and provides a 3-phase 400V, 310A output, suitable

for industrial, air-cooled applications requiring robust safety functions.

Frequently asked questions：

Q: What is the input voltage requirement for the Siemens 6SL3320-1TE33-1AA3 module?
A: The module requires a 600 V DC input from the drive system’s DC link.
Q: What type of output does the 6SL3320-1TE33-1AA3 motor module provide?
A: It provides three-phase 400 V AC output to drive industrial motors.
Q: What is the maximum output current of this motor module?
A: The module can deliver up to 310 A output current.
Q: What is the efficiency of the 6SL3320-1TE33-1AA3 module?
A: The module has an efficiency greater than 98.5%, ensuring high energy efficiency.

Key Features and Connectivity
Safety Integrated: Supports extended safety functions including SIL 2 (IEC 61508) and PL d (EN ISO 13849-1).
Drive-CLiQ: Includes a Drive-CLiQ cable for high-speed communication within the SINAMICS S120 system.
Motor Connections: Uses M10 screw terminals for motor and DC link connections.
Cable Lengths: Supports shielded motor cables up to 300 m (984 ft) and unshielded cables up to 450 m (1,476 ft).
