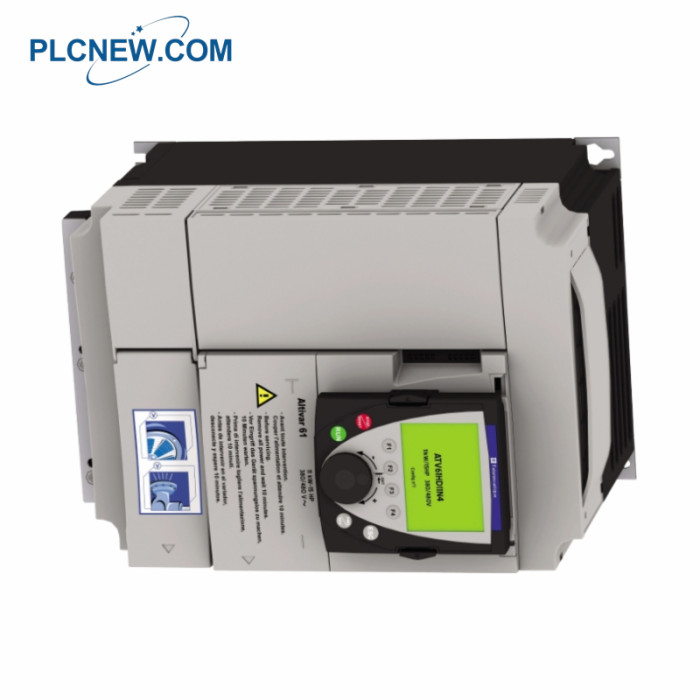

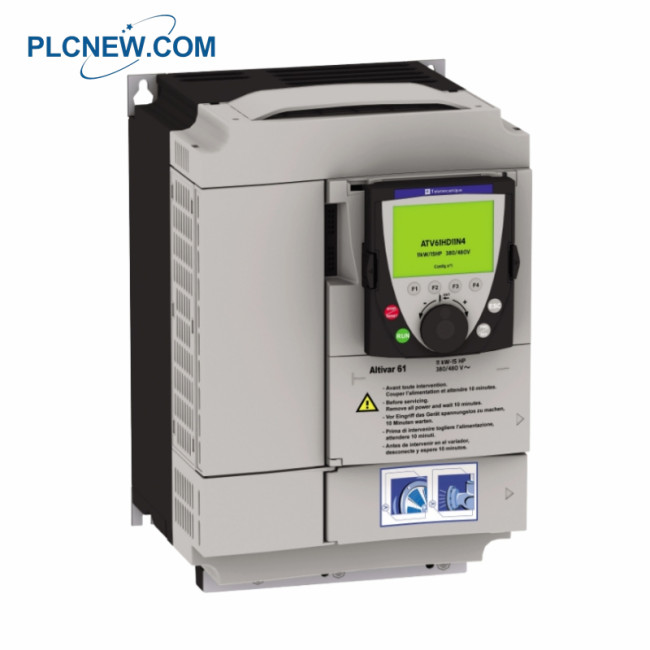

Schneider ATV61HD15N4 Variable Speed Drive
Product Overview
The Schneider ATV61HD15N4 Variable Speed Drive, part of the Altivar 61 series, is designed to provide reliable and efficient
motor control for a wide range of industrial applications. Featuring a built-in EMC filter, IP20 protection, and a user-friendly
graphic terminal, it ensures smooth operation, precise speed regulation, and enhanced energy efficiency. Its robust design guarantees
durability and dependable performance even in demanding environments, while advanced control features allow seamless integration
into systems. The ATV61HD15N4 helps optimize process efficiency, reduce downtime, and improve overall productivity,
making it an ideal solution for industries that require flexible and high-performance motor management.
Net weight: 22 kg
Width: 230 mm
Height: 400 mm
Depth: 213 mm
Motor power kW: 15 kW, 3 phases at 380...480 V
Motor power hp: 20 hp, 3 phases at 380...480 V
Power supply voltage: 380...480 V -15...10 %
Line current: 39 A for 480 V 3 phases / 48 A for 380 V 3 phases (15 kW / 20 hp)
Apparent power: 31.6 kVA at 380 V 3 phases (15 kW / 20 hp)
Maximum prospective line Isc: 22 kA for 3 phases
Maximum transient current: 39.6 A for 60 s, 3 phases
Nominal switching frequency: 12 kHz
Switching frequency: 1...16 kHz adjustable / 12...16 kHz with derating factor
Power supply voltage limits: 323…528 V
Power supply frequency: 50...60 Hz -5...5 %
Power supply frequency limits: 47.5...63 Hz
Continuous output current: 27 A at 460 V / 33 A at 380 V (12 kHz, 3 phases)
Output frequency: 0.1…599 Hz
Minimum switching current: 3 mA at 24 V DC for configurable relay
Frequency resolution: 0.024/50 Hz (analog input) / 0.1 Hz (display unit)
